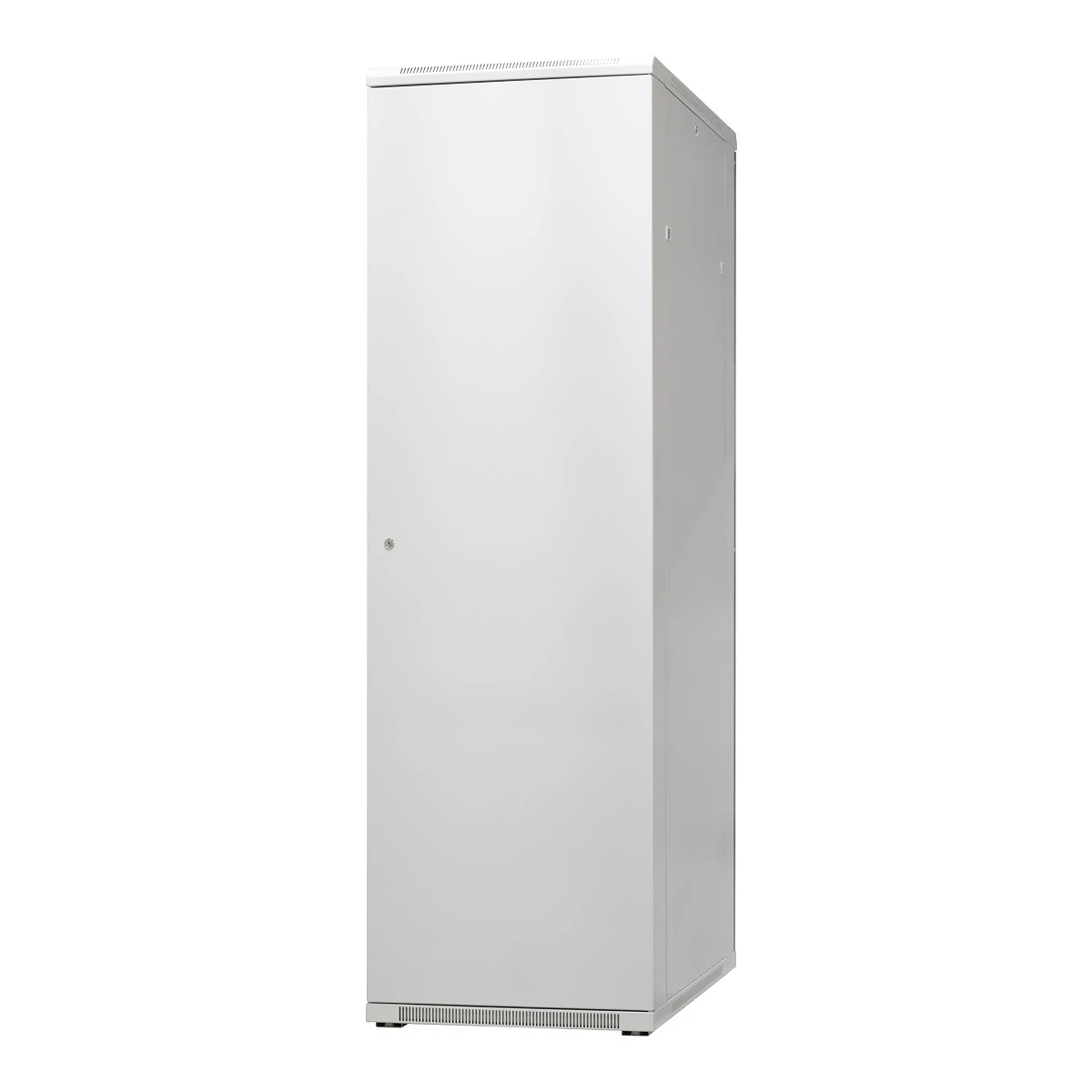

Standing frame cabinet, 42U, dim. 600x1000x1980 EM/SH05D-6042

local index:
RMS003EMSO
Catalog No:
EM/SH05D-6042
EAN code:
5906764106925
Manufacturer: EMITER
Depth [mm]: 1000
Width [mm]: 600
Height [mm]: 1980
Shipment on a pallet
Price:
598,22 €
gross / pcs.
(including VAT 23%)
4,75 € gross/kg.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Description and technical characteristics of the product:


The construction of the cabinet is made of steel sheet.
The frame is screwed from steel profiles, adapted to be set on nó
horizontal or pedestal-mounted. Ventilation panel in the roof, 2 or 4
fans. The frame has four cable entry openings (250x40mm).
4 leveling feet.

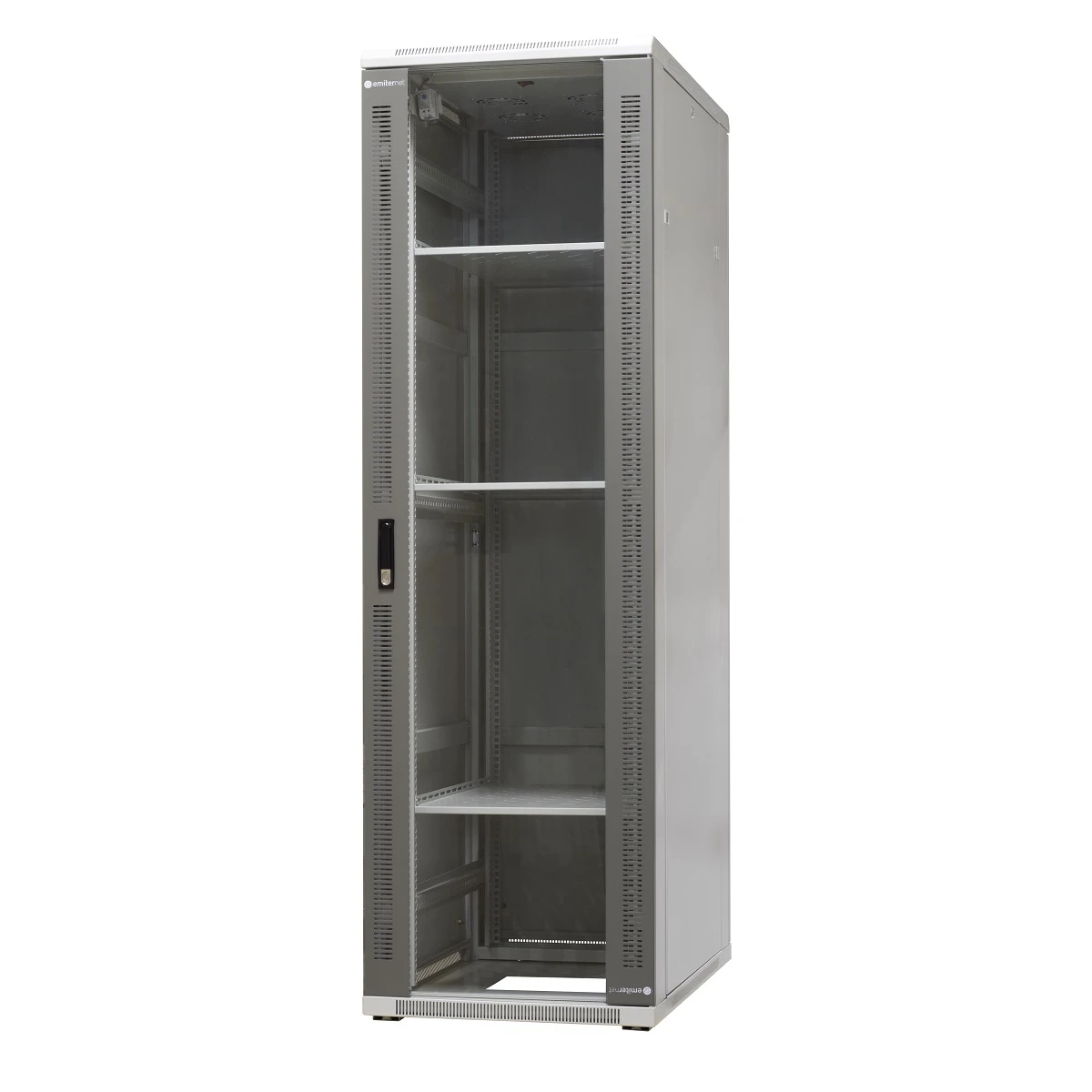

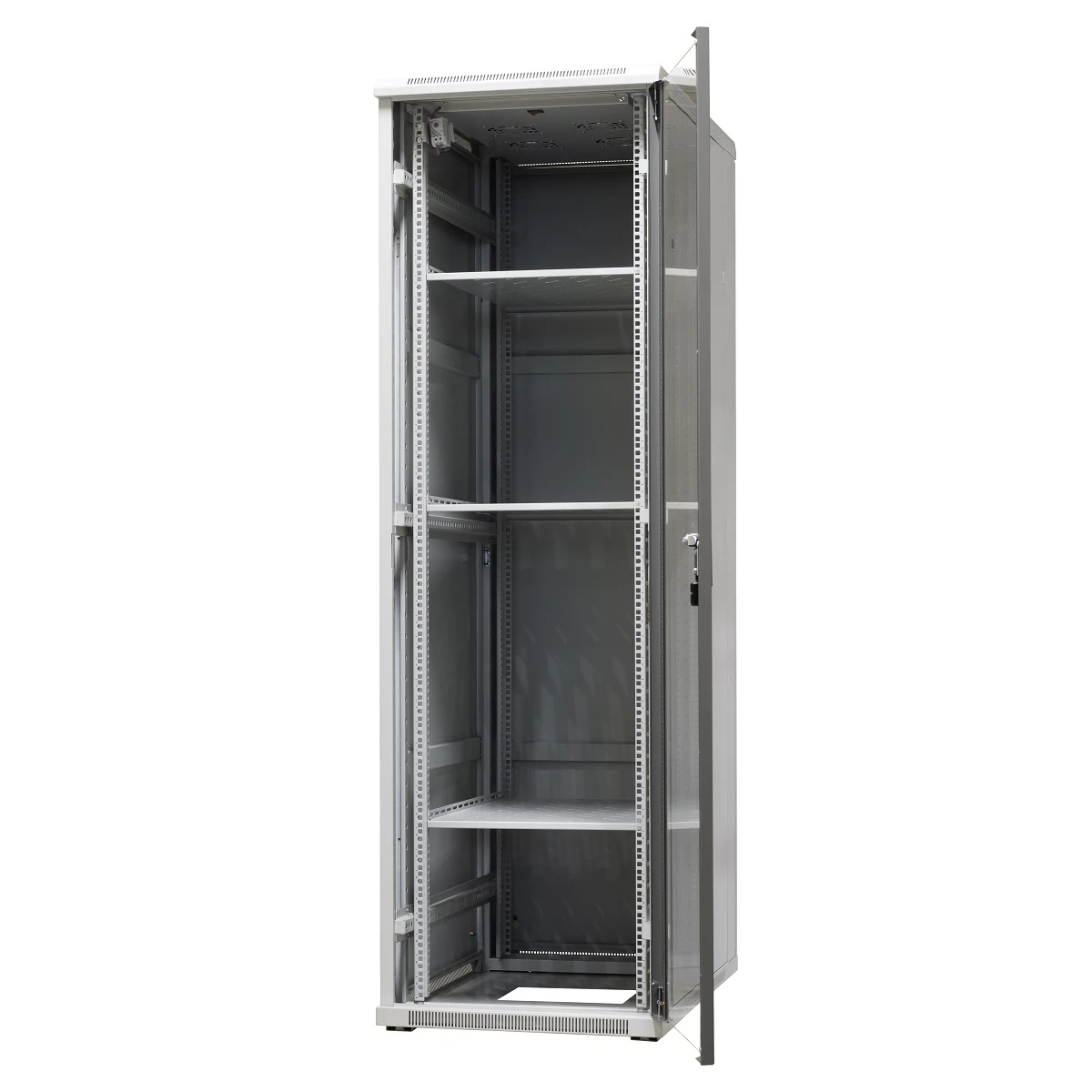

Front door with glued-in tempered glass and a 1-point lock equipped
with a rotary lever mounted on hinges enabling the door to be opened
180 degrees.

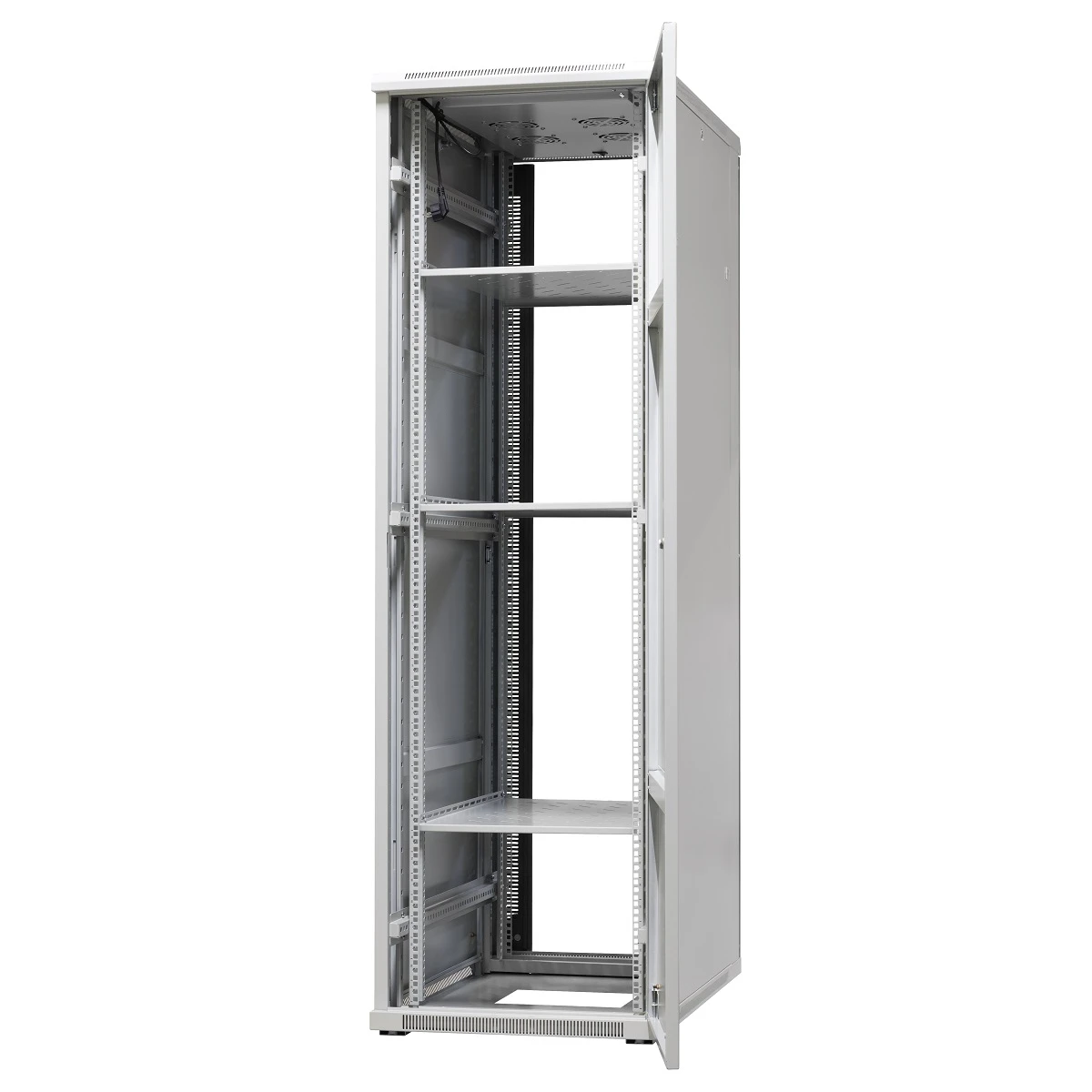

Rear door and two side walls made of steel sheet, removable, fastened
with single-point locks.
3 horizontal traverses for fixing vertical profiles.< br />4 vertical mounting profiles, minimum distance from the front door 35mm
(standard 95mm). Possibility of adjusting the position every 20 mm.
Earth rope supplied.

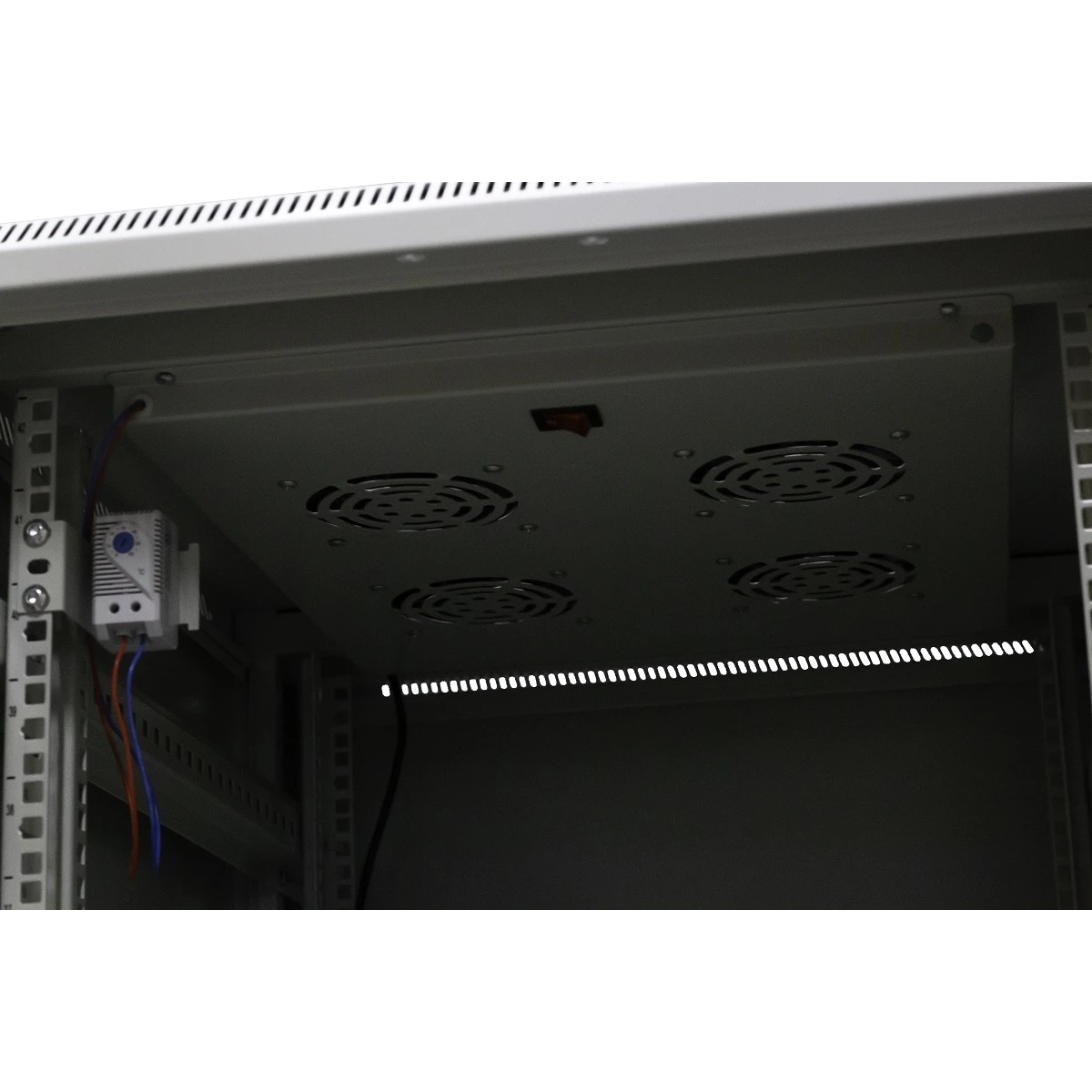

Fixed panels fixed in 4 points (3 pcs.), 20 mounting screws and a set of 2 fans (600x600 cabinets ) or 4 fans (other sizes of the cabinet) and
thermostat as standard equipment.
Cabinets are intended for indoor use.
The possibility of connecting cabinets in rows (with the use of cabinet connector EM/JI03 /N).
The possibility of using wheels (when using wheels
the maximum static load capacity must not exceed 150 kg).
The possibility of placing on pedestals.

Technical parameters:
Standard RAL color: wardrobe 7044, door 7010
The door can be mounted on the right and left side, equipped with a 1-point lock
Two mounting planes 19” (with the possibility of installing more)
Protection level: IP 20 (does not apply to cabinets with mounted brush ducts).


Mounting kit:

  • 4 x cable entry plate
  • 2 x key for side and rear walls
  • 2 x key for front door



Technical data

  • Depth [mm]
    1000
  • Height [mm]
    1980
  • load capacity [kg]
    500
  • Width [mm]
    600
  • Height [U]
    42

Other technical data

  • Mounting level
    Front and rear
  • Number of doors
    2
  • Width
    600 mm
  • Depth
    1000 mm
  • Number of height units
    42
  • With roof plate
    Yes
  • With front door
    Yes
  • Front door locking system
    One point
  • Material rear door
    Steel
  • With glazed door
    Yes
  • With base
    No
  • Material
    Steel
  • Colour
    Grey
  • RAL-number
    7044
  • Degree of protection (IP)
    IP20
  • Type of profile rail
    L-shaped
  • Type of ventilation
    Active
  • Height
    1980 mm
  • Modular spacing
    482.6 mm (19 inch)
  • Max. load capacity
    700 kg
  • With earthing
    Yes
  • Material front door
    Glass
  • With rear door
    Yes
  • Rear door locking system
    One point
  • With sidewall
    Yes
  • With vertical cable management
    Yes
  • Surface finishing
    Powder coating
  • Model
    With swing frame
  • Demountable
    Yes
