Standing cabinet BP-F-600/17/3 102057

Name: Standing cabinet BP-F-600/17/3
Brand: EATON
SKU: RSS001MOEL
Price: 1506.85 PLN
Availability: BackOrder

Index local:

RSS001MOEL

Numéro de catalogue:

102057

Code EAN:

4015081022052

Cliquer sur la photo pour l'agrandir

Producteur: EATON

Level of security: IP30

Width [mm]: 600

Height [mm]: 1760

Voir la description complète

Produit de grande taille

Prix:

1 506,85 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 2 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

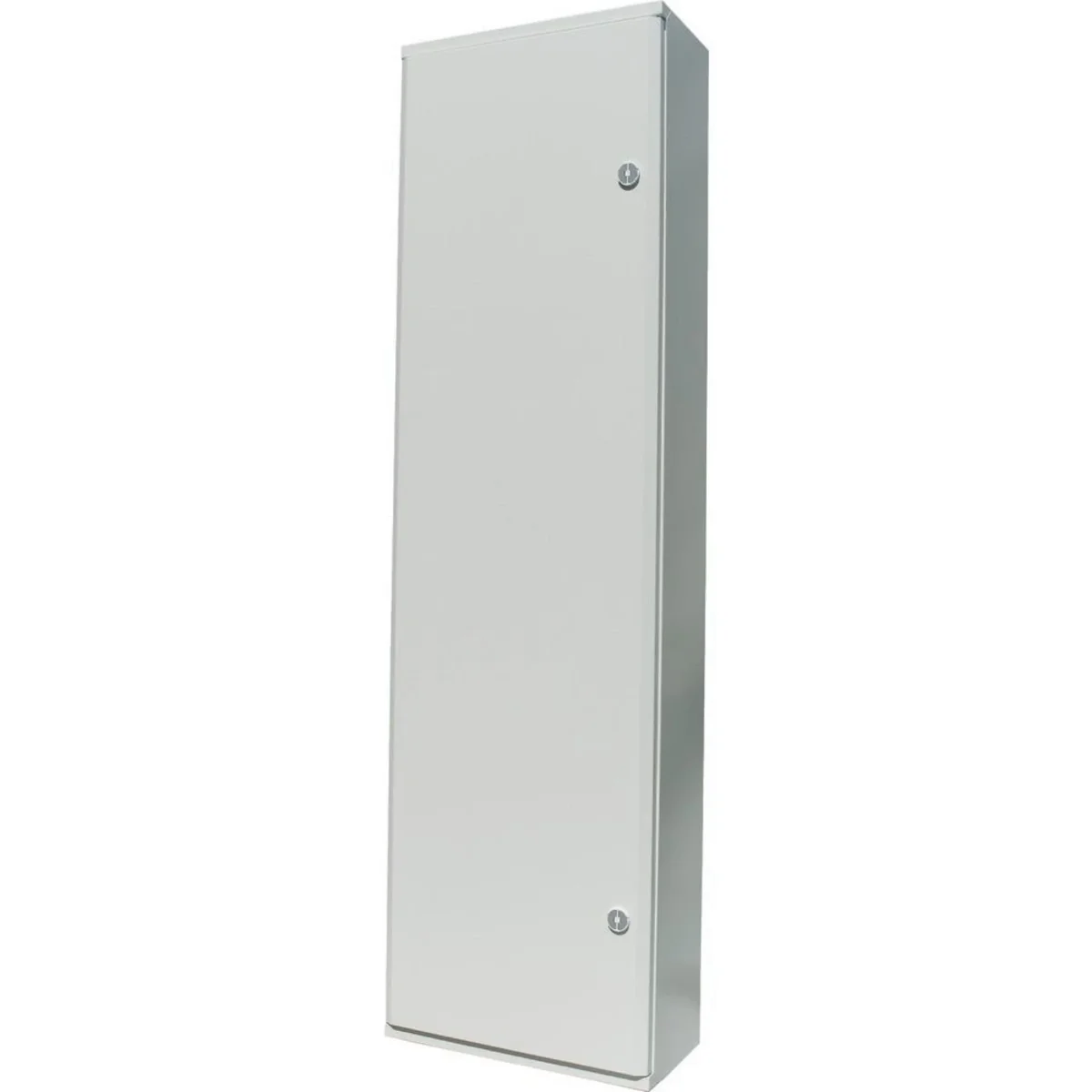

IP30 floor-standing switchboards, type BP-F-..., lockable rotating – without equipment
• Side walls welded
• Complete with galvanized rear wall with profiled angles
• Supplied with top / bottom entry flanges type BP-FLP-..2K
• Depth 300mm
• Two heights 1760 and 2060 mm
• Two rotary locks included
• The door can be closed left / right
• Switchboards in white RAL 9016 – on request
• Split door for width 1000 (400+600) and 1200 (600+600)
• The switchboards can be divided into sections 600/400, 600/600, 400/800 (similarly to Profi Line switchboards).

Données techniques

Level of security

IP30
Height [mm]

1760
PKWIU

31.20.24-50.21

Width [mm]

600
Shield height [mm]

1650

Autres données techniques

Width

615 mm
Depth

315 mm
Material quality

Other
Colour

Grey
Freestanding

Yes
Suitable for wall mounting

No
Intermediate mounting

No
With mounting plate

No
Suitable for wall built-in

No
Number of doors

1
Suitable for metrical mounting

Yes
Pitched roof

No
With glazed door

No
With rear door

No
Degree of protection (IP)

IP30
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890

0 W
Max. permissible load of the door(s) according to IEC 62208

0 N

Height

1780 mm
Material

Steel
Surface finishing

Powder coating
RAL-number

7035
Floor standing wall model

No
Corner model

No
Couplable

No
Mounting plate depth-adjustable

Yes
Pole fastening

No
Number of locks

1
Suitable for outdoor set-up

No
EMC-version

Yes
With ventilation door

No
Impact strength

IK08
Degree of protection (NEMA)

Other
Max. permissible load of the enclosure according to IEC 62208

0 N
Max. permissible load of the mounting plate according to IEC 62208

0 N

Détails du fabricant

Producteur

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Emballage en vrac

Une sorte de paquet	Skrzynia
Quantité	1 pcs.
poids (kg)	40,660
Volume (m3)	0,345
Largeur (m)	0,615
Longueur (m)	0,315
Profondeur (m)	1,780
