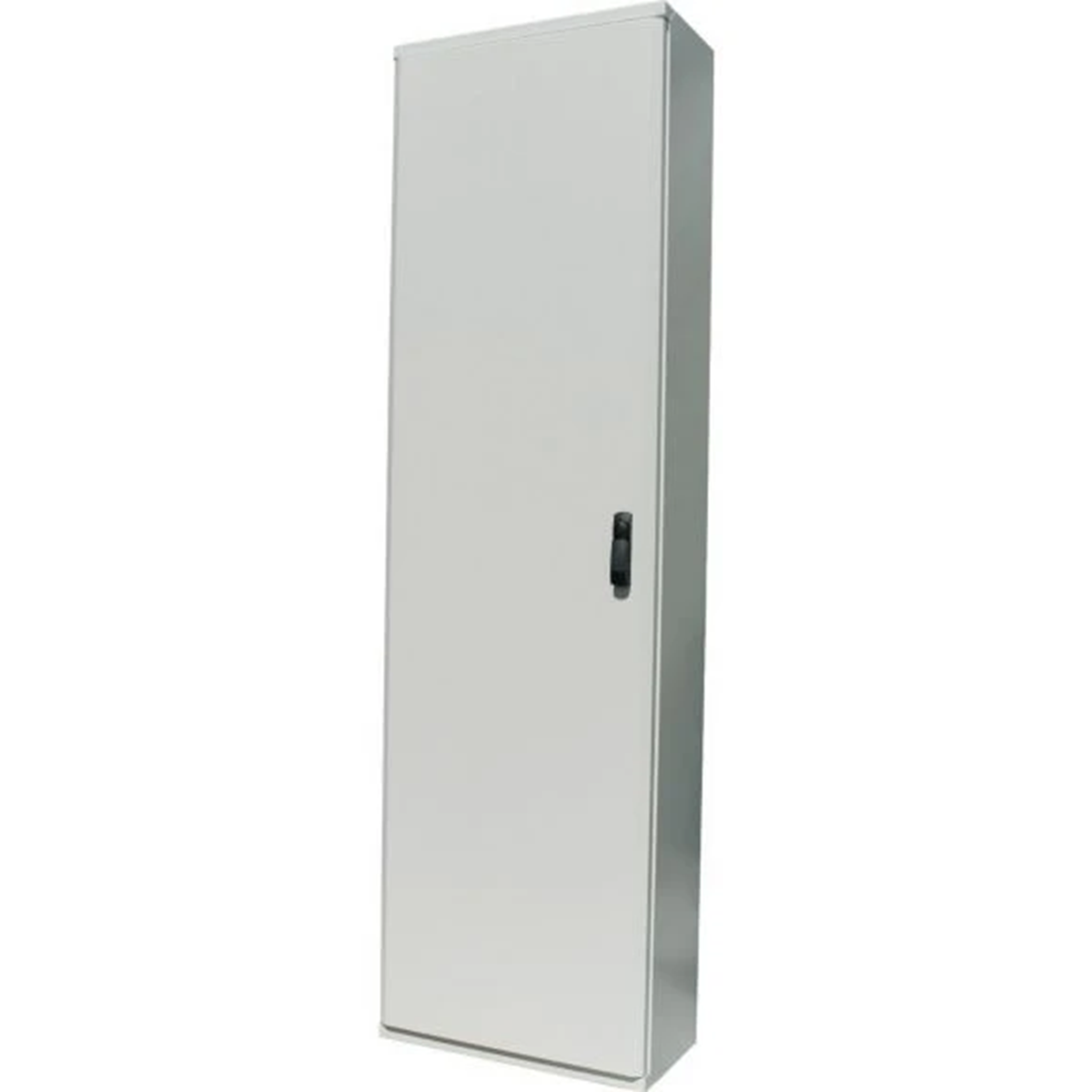

Standing cabinet BP-F-1000/20/3-P 102362

local index:
RSS003MOEL
Catalog No:
102362
EAN code:
4015081022502
Manufacturer: EATON
Depth [mm]: 300
Level of security: IP30
Width [mm]: 1000
Large-size product
Price:
753,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

IP30 floor-standing enclosures, type BP-F-...-P, lever lock – without equipment
• welded side walls.
• Complete with galvanized rear wall with profiled angles
• Supplied with top / bottom entry flanges type BP-FLP..2K
• Depth 300, 400 mm
• In switchboards with a depth of 400 mm, it is recommended to mount it on the BPZ-MSW (it is not necessary to order BPZ-CTS-L)
• Two heights 1760 and 2060 mm
• Door closed with a lever
• The door can be closed left / right
• Switchboards in white RAL 9016 – on request
• Split door for width 1000 (400+600) and 1200 (600+600)
• The switchboards can be divided into sections 600/400, 600/600, 400/800. The switchgear partitioning kit BPZ-SF-... is used for this purpose.

Technical data

  • Depth [mm]
    300
  • Width [mm]
    1000
  • External height [mm]
    2060
  • Level of security
    IP30
  • Shield height [mm]
    1950

Other technical data

  • Width
    1015 mm
  • Depth
    315 mm
  • Material quality
    Other
  • Colour
    Grey
  • Freestanding
    yes
  • Suitable for wall mounting
    no
  • Intermediate mounting
    no
  • With mounting plate
    no
  • Suitable for wall built-in
    no
  • Number of doors
    2
  • Suitable for metrical mounting
    yes
  • Pitched roof
    no
  • With glazed door
    no
  • With rear door
    no
  • Degree of protection (IP)
    IP30
  • Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
    0 W
  • Max. permissible load of the door(s) according to IEC 62208
    0 N
  • Height
    2080 mm
  • Material
    Steel
  • Surface finishing
    Powder coating
  • RAL-number
    7035
  • Floor standing wall model
    no
  • Corner model
    no
  • Couplable
    no
  • Mounting plate depth-adjustable
    yes
  • Pole fastening
    no
  • Number of locks
    0
  • Suitable for outdoor set-up
    no
  • EMC-version
    yes
  • With ventilation door
    no
  • Impact strength
    IK08
  • Degree of protection (NEMA)
    Other
  • Max. permissible load of the enclosure according to IEC 62208
    0 N
  • Max. permissible load of the mounting plate according to IEC 62208
    0 N

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 69,630
Volume (m3) 0,665
Width (m) 1,015
Length (m) 0,315
Depth (m) 2,080
