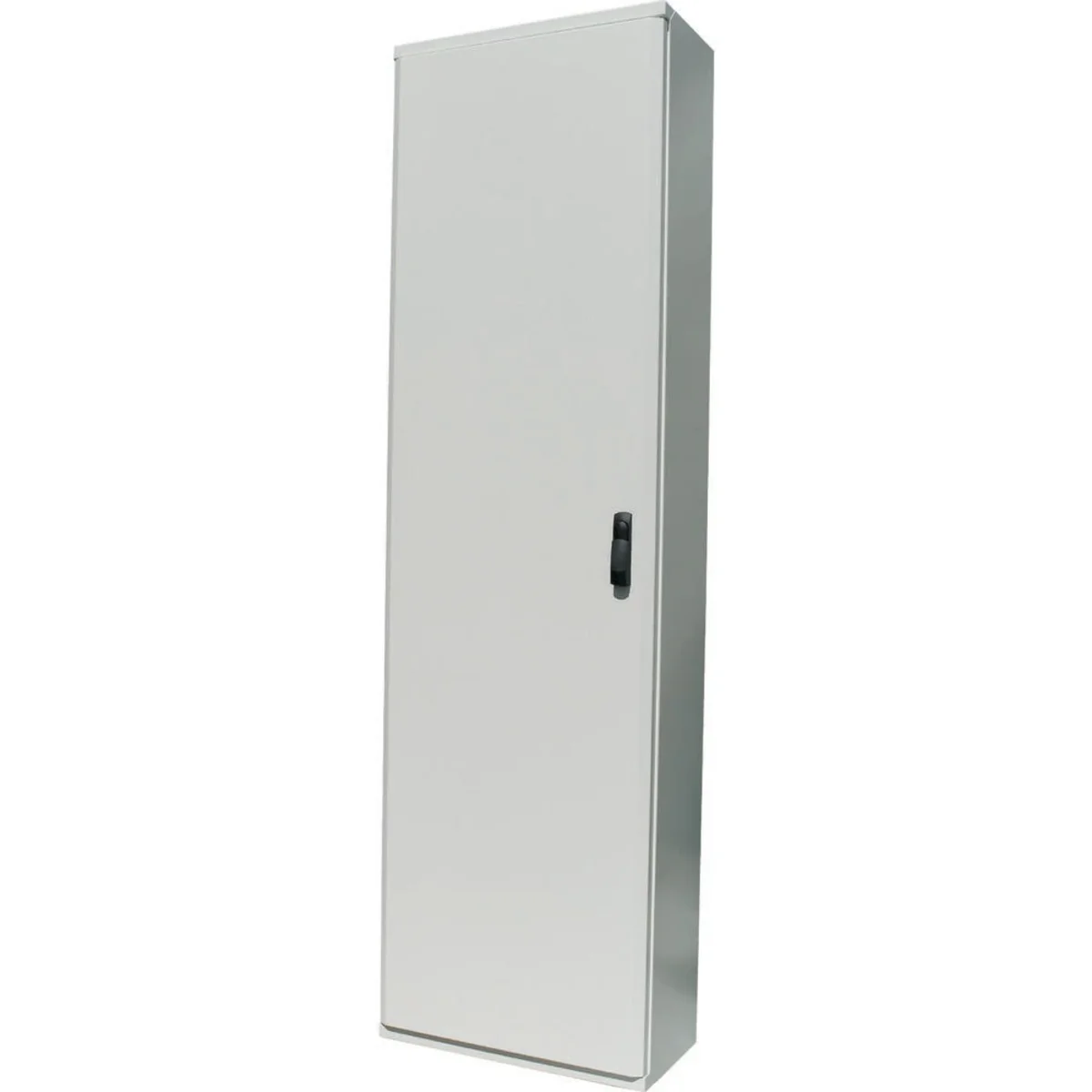

Standing cabinet BP-F-1000/17/3-P 102361
local index:
RRR479MOEL
Catalog No:
102361
EAN code:
4015081022496
Price:
680,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
IP30 floor-standing enclosures, type BP-F-...-P, lever lock – without equipment
• welded side walls.
• Complete with galvanized rear wall with profiled angles
• Supplied with top / bottom entry flanges type BP-FLP..2K
• Depth 300, 400 mm
• In switchboards with a depth of 400 mm, it is recommended to mount it on the BPZ-MSW (it is not necessary to order BPZ-CTS-L)
• Two heights 1760 and 2060 mm
• Door closed with a lever
• The door can be closed left / right
• Switchboards in white RAL 9016 – on request
• Split door for width 1000 (400+600) and 1200 (600+600)
• The switchboards can be divided into sections 600/400, 600/600, 400/800. The switchgear partitioning kit BPZ-SF-... is used for this purpose.
• welded side walls.
• Complete with galvanized rear wall with profiled angles
• Supplied with top / bottom entry flanges type BP-FLP..2K
• Depth 300, 400 mm
• In switchboards with a depth of 400 mm, it is recommended to mount it on the BPZ-MSW (it is not necessary to order BPZ-CTS-L)
• Two heights 1760 and 2060 mm
• Door closed with a lever
• The door can be closed left / right
• Switchboards in white RAL 9016 – on request
• Split door for width 1000 (400+600) and 1200 (600+600)
• The switchboards can be divided into sections 600/400, 600/600, 400/800. The switchgear partitioning kit BPZ-SF-... is used for this purpose.
Technical data
-
Depth [mm]300
-
Width [mm]1000
-
External height [mm]1760
-
Level of securityIP30
-
Shield height [mm]1650
Other technical data
-
Width1015 mm
-
Depth315 mm
-
Material qualityOther
-
ColourGrey
-
FreestandingYes
-
Suitable for wall mountingNo
-
Intermediate mountingNo
-
With mounting plateNo
-
Suitable for wall built-inNo
-
Number of doors2
-
Suitable for metrical mountingYes
-
Pitched roofNo
-
With glazed doorNo
-
With rear doorNo
-
Degree of protection (IP)IP30
-
Thermal dissipation (Delta T = 20 K) according to IEC/TR 608900 W
-
Max. permissible load of the door(s) according to IEC 622080 N
-
Height1780 mm
-
MaterialSteel
-
Surface finishingPowder coating
-
RAL-number7035
-
Floor standing wall modelNo
-
Corner modelNo
-
CouplableNo
-
Mounting plate depth-adjustableYes
-
Pole fasteningNo
-
Number of locks0
-
Suitable for outdoor set-upNo
-
EMC-versionYes
-
With ventilation doorNo
-
Impact strengthIK08
-
Degree of protection (NEMA)Other
-
Max. permissible load of the enclosure according to IEC 622080 N
-
Max. permissible load of the mounting plate according to IEC 622080 N
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 63,023 |
| Volume (m3) | 0,569 |
| Width (m) | 1,015 |
| Length (m) | 0,315 |
| Depth (m) | 1,780 |
