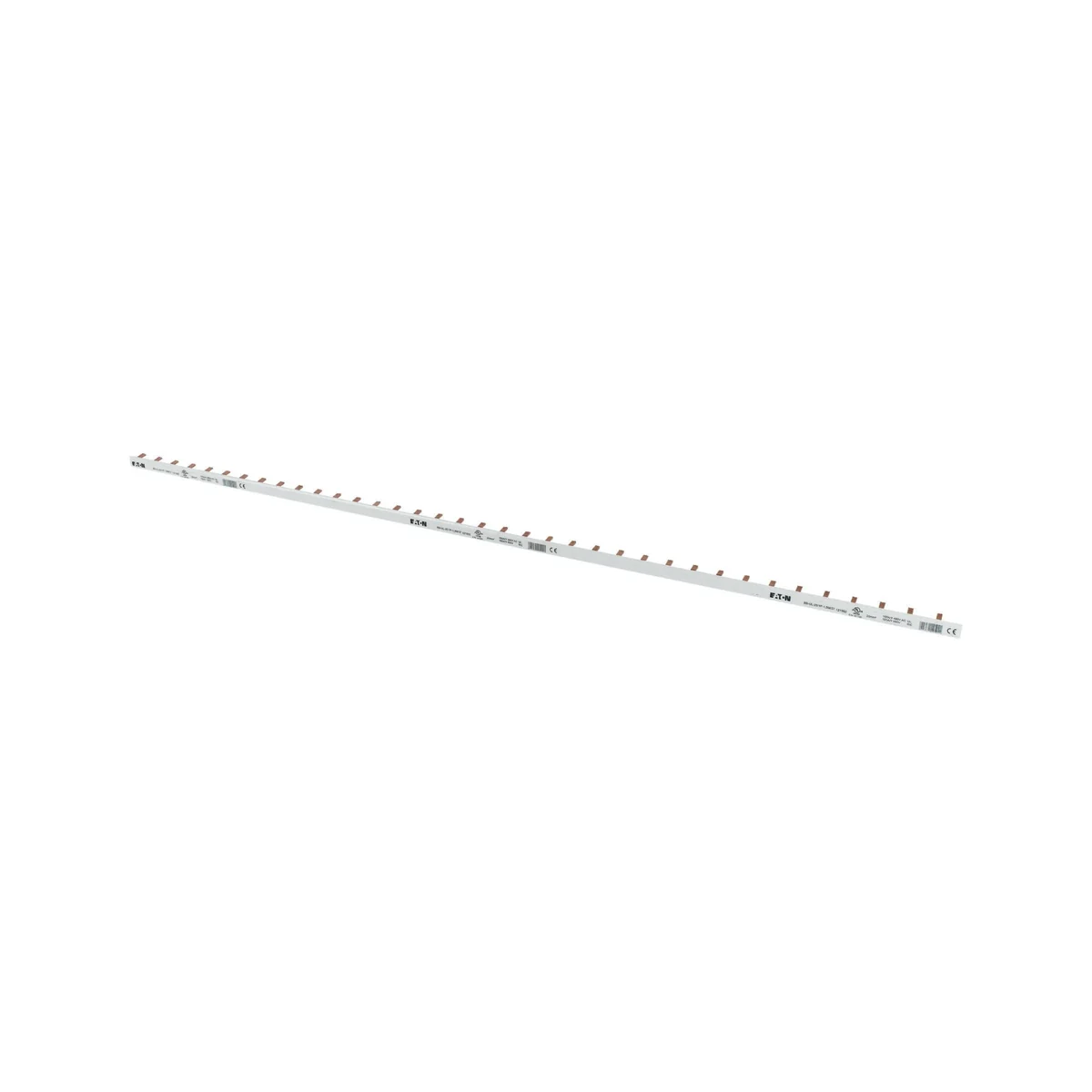

Single-phase railing of the block BB-UL-25 37JC, 1m long 121992
local index:
RPU026MOEL
Catalog No:
121992
EAN code:
4015081201921
Price:
45,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Switching devices for use in industry and functional buildings.
- Busbar system for circuit breaker
Technical data
-
Length [mm]1000
-
Number of modules37
-
Type of electrical connectionpin/pin
-
With insulationYes
-
Rated impulse voltage [kV]10
-
number of phases1
-
Number of poles37
-
Rail type1-phase
-
Rated operating voltage up to [V]277
-
cross section [mm²]25
Other technical data
-
Number of phases1
-
Suitable for number of devices37
-
Cross section25 mm²
-
Width in number of modular spacings37
-
Type of electric connectionPin
-
Rated surge voltage10 kV
-
Max. rated operation voltage Ue277 V
-
Suitable for devices with N-conductorNo
-
ColourOther
-
Number of poles37
-
Module width0 mm
-
Length985 mm
-
Rated permanent current Iu100 A
-
InsulatedYes
-
Conditioned rated short-circuit current Iq10 kA
-
Rated short-time withstand current lcw0 kA
-
Suitable for devices with auxiliary switchNo
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,313 | 0,329 | 3,290 |
| Volume (m3) | 0,000 | 0,000 | 0,004 |
| Width (m) | 0,015 | 0,017 | 0,080 |
| Length (m) | 0,985 | 0,987 | 1,070 |
| Depth (m) | 0,015 | 0,017 | 0,050 |
