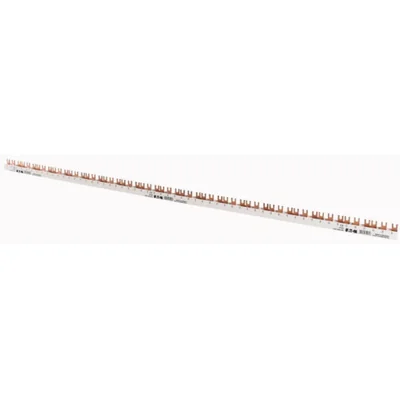

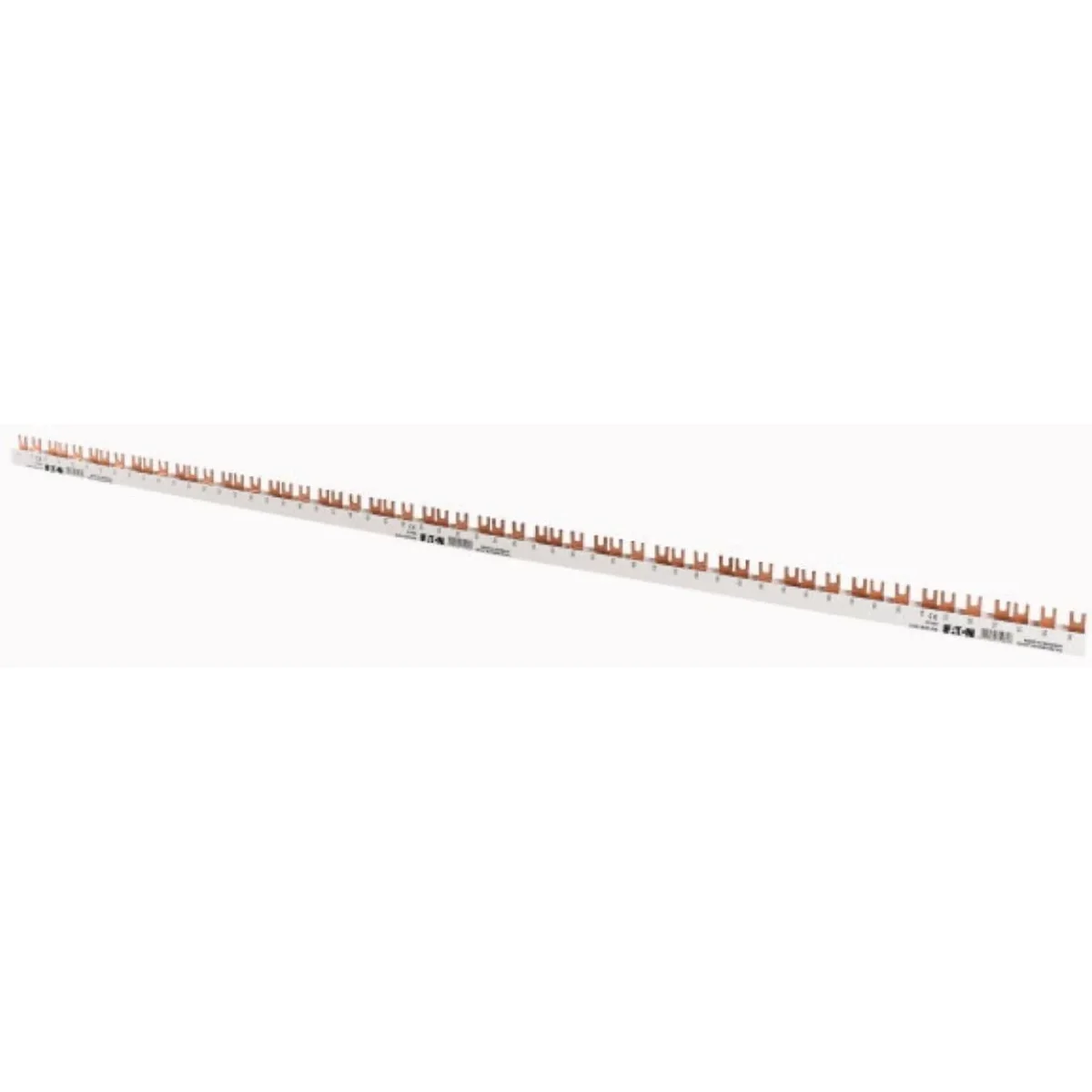

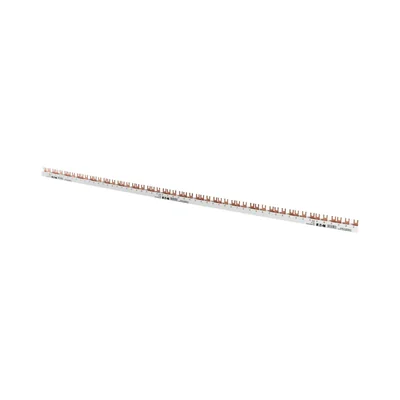

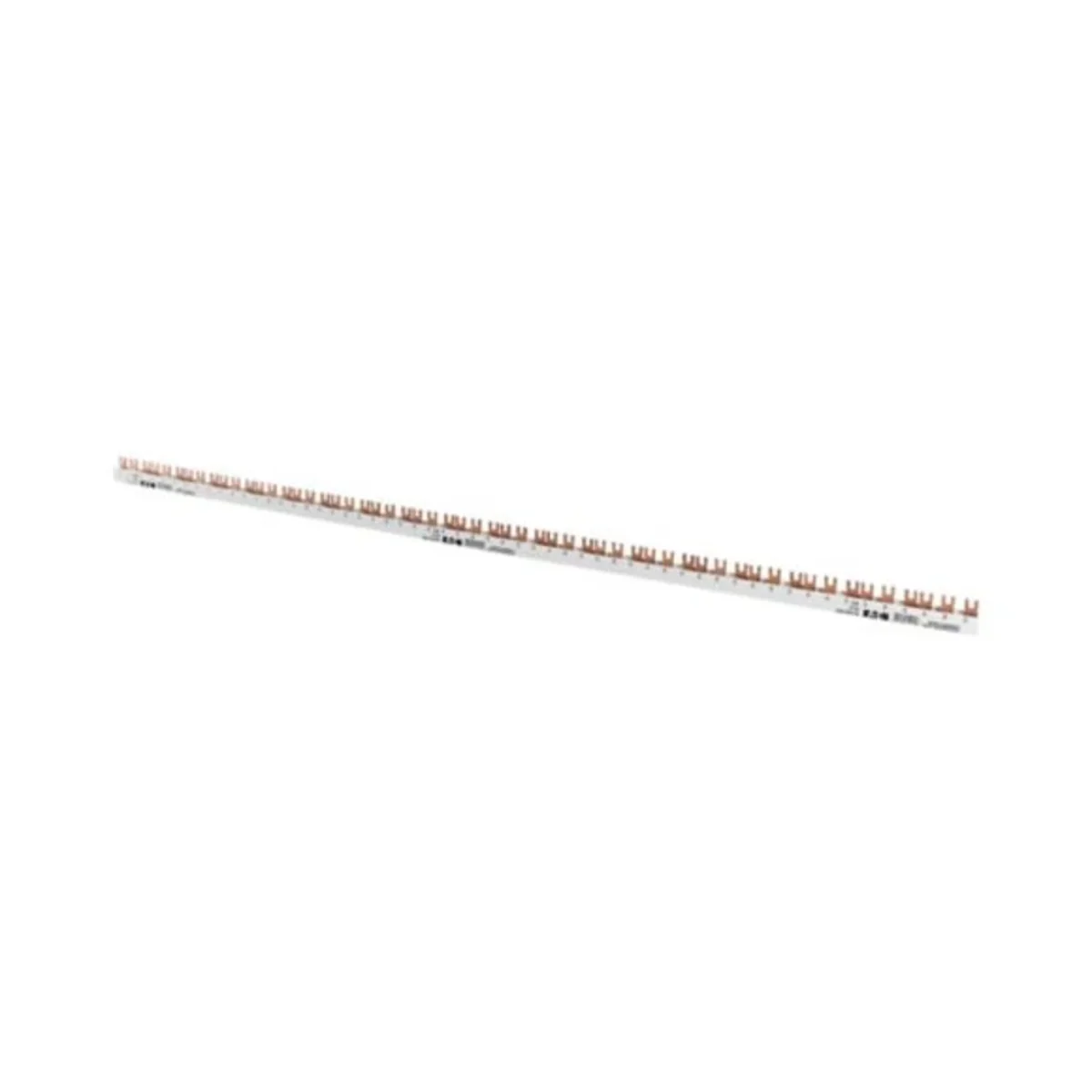

Rail for connecting modular equipment, Z-GV-16/3P+HS 271065

local index:
RPU056MOEL
Catalog No:
271065
EAN code:
4015082710651
Manufacturer: EATON
number of phases: 3
Price:
142,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
20
)
Print

Product description

Rails in spade design 16mm2.

Technical data

  • number of phases
    3

Other technical data

  • Number of phases
    3
  • Suitable for number of devices
    12
  • Cross section
    16 mm²
  • Rated permanent current Iu
    80 A
  • Insulated
    yes
  • Conditioned rated short-circuit current Iq
    0 kA
  • Rated short-time withstand current lcw
    0 kA
  • Suitable for devices with auxiliary switch
    yes
  • Number of poles
    3
  • Module width
    27 mm
  • Length
    30 mm
  • Type of electric connection
    Fork
  • Rated surge voltage
    0 kV
  • Max. rated operation voltage Ue
    415 V
  • Suitable for devices with N-conductor
    no

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 20 pcs.
Weight (kg) 0,613 12,260
Volume (m3) 0,000 0,009
Width (m) 1,018 0,103
Length (m) 0,032 1,070
Depth (m) 0,017 0,085
