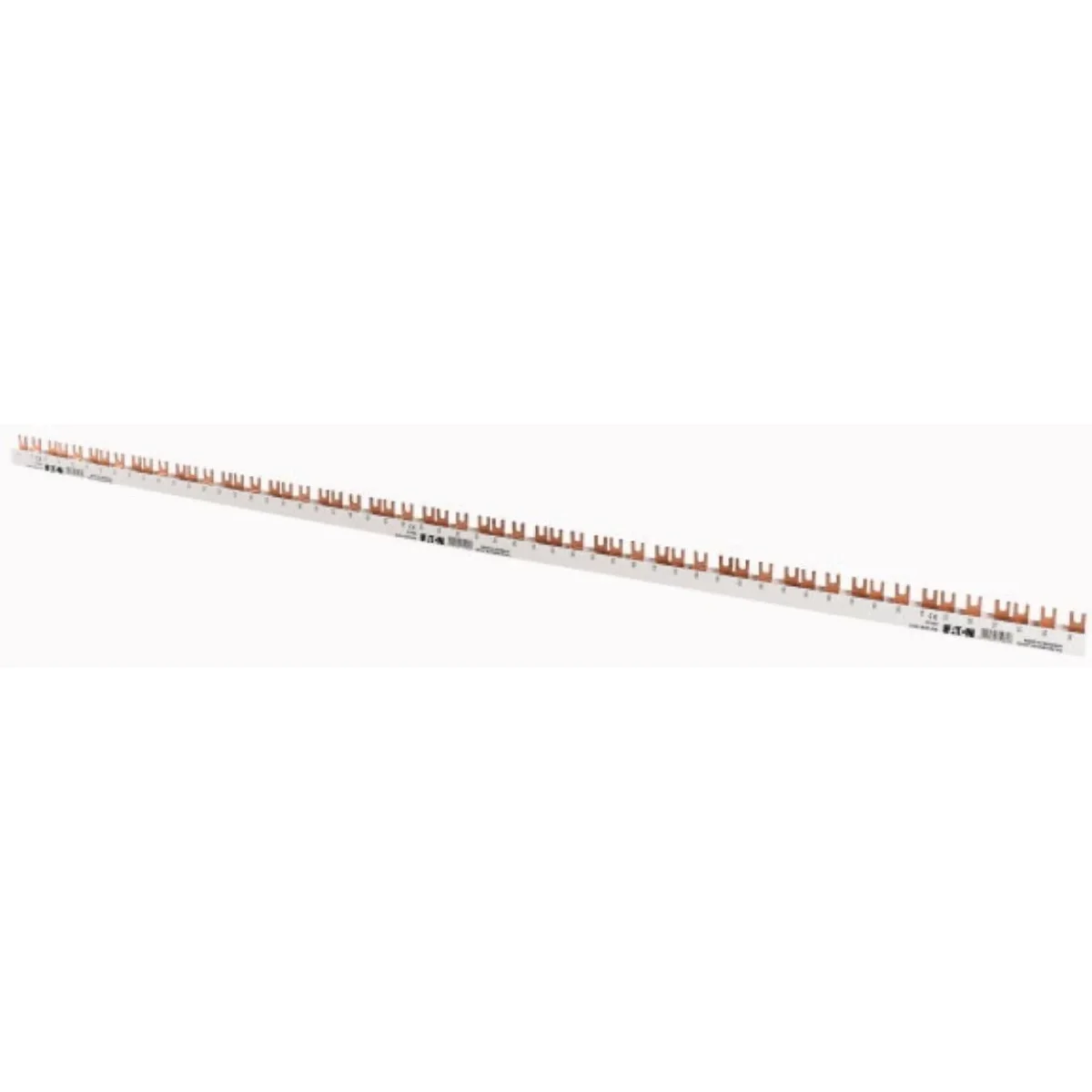

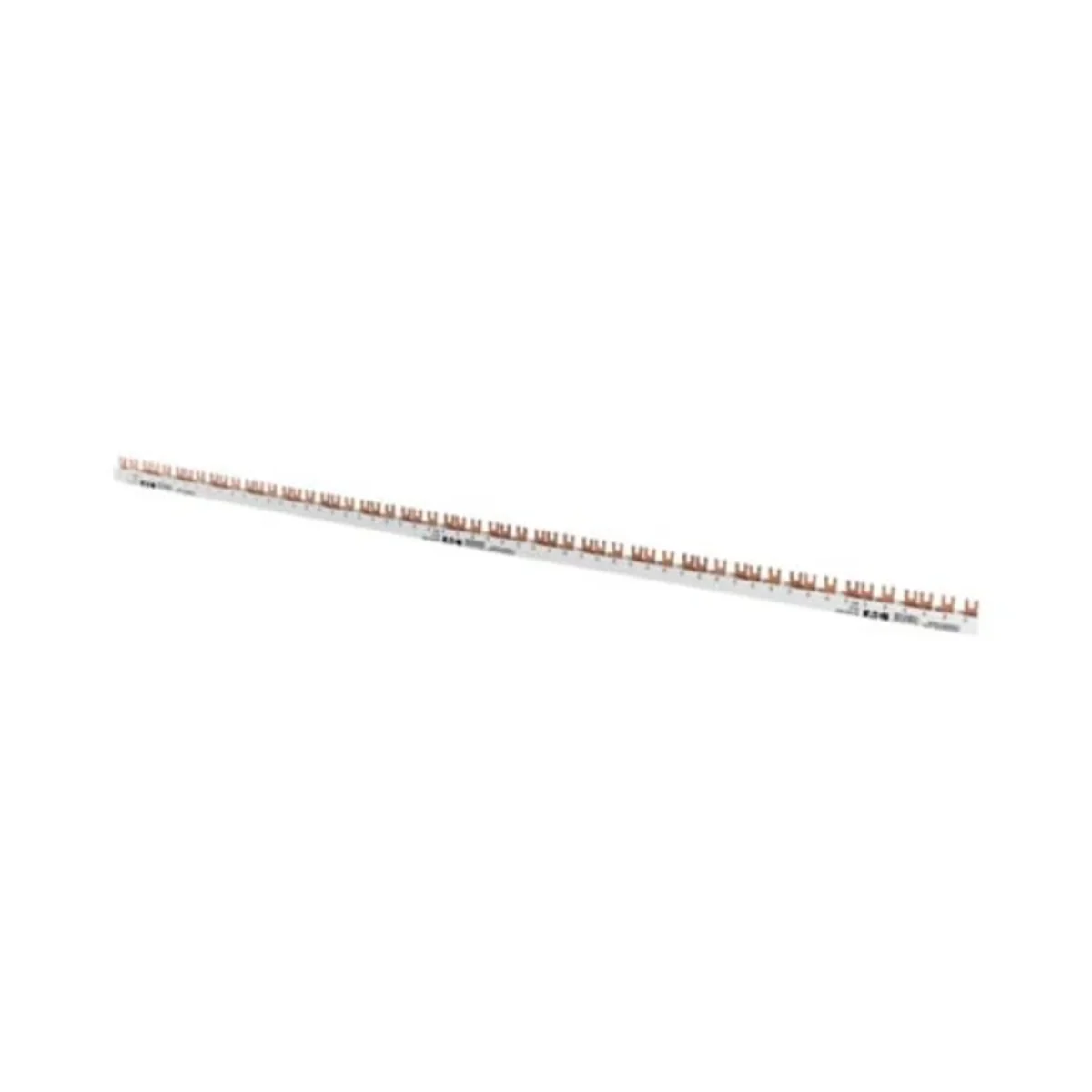

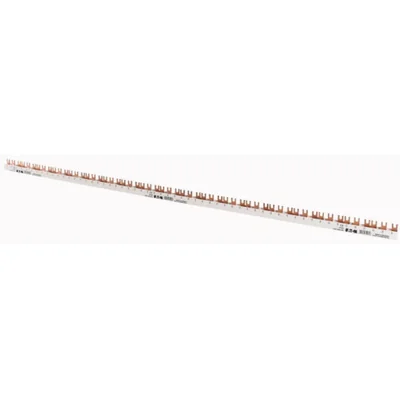

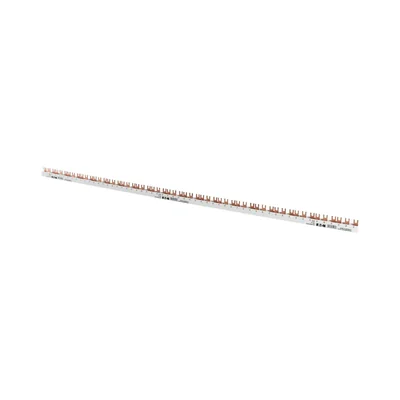

Rail for connecting modular equipment, Z-GV-16/1P+N-2TE 271063

local index:
RIR090MOEL
Catalog No:
271063
EAN code:
4015082710637
Manufacturer: EATON
number of phases: 1+N
Price:
263,32 zł
gross / pcs.
(including VAT 23%)
up to 2 weeks
On request
Quantity pcs.
(multiplicity:
20
)
Add to inquiry
Add to clipboard
Print

Product description

Fork rails 16mm2
• Length 1 m
• 16 mm2 - rated current 80A
• Supplied without caps

Technical data

  • number of phases
    1+N
  • PKWIU
    25.11.23.0

Other technical data

  • Number of phases
    2
  • Suitable for number of devices
    0
  • Cross section
    16 mm²
  • Rated permanent current Iu
    80 A
  • Insulated
    Yes
  • Conditioned rated short-circuit current Iq
    0 kA
  • Rated short-time withstand current lcw
    0 kA
  • Suitable for devices with auxiliary switch
    No
  • Number of poles
    1
  • Module width
    0 mm
  • Length
    30 mm
  • Type of electric connection
    Fork
  • Rated surge voltage
    0 kV
  • Max. rated operation voltage Ue
    415 V
  • Suitable for devices with N-conductor
    Yes

Manufacturer details

  • Manufacturer
    Eaton Electric Sp. z o.o.
  • Address
    80-299 Gdańsk Galaktyczna 30 Polska

Bulk packaging

A kind of package Skrzynia Karton Skrzynia Karton
Quantity 1 pcs. 20 pcs. 1 pcs. 20 pcs.
Weight (kg) 0,470 9,400 0,470 9,400
Volume (m3) 0,000 0,010 0,000 0,010
Width (m) 1,018 0,100 1,018 0,100
Length (m) 0,032 1,000 0,032 1,000
Depth (m) 0,017 0,100 0,017 0,100
