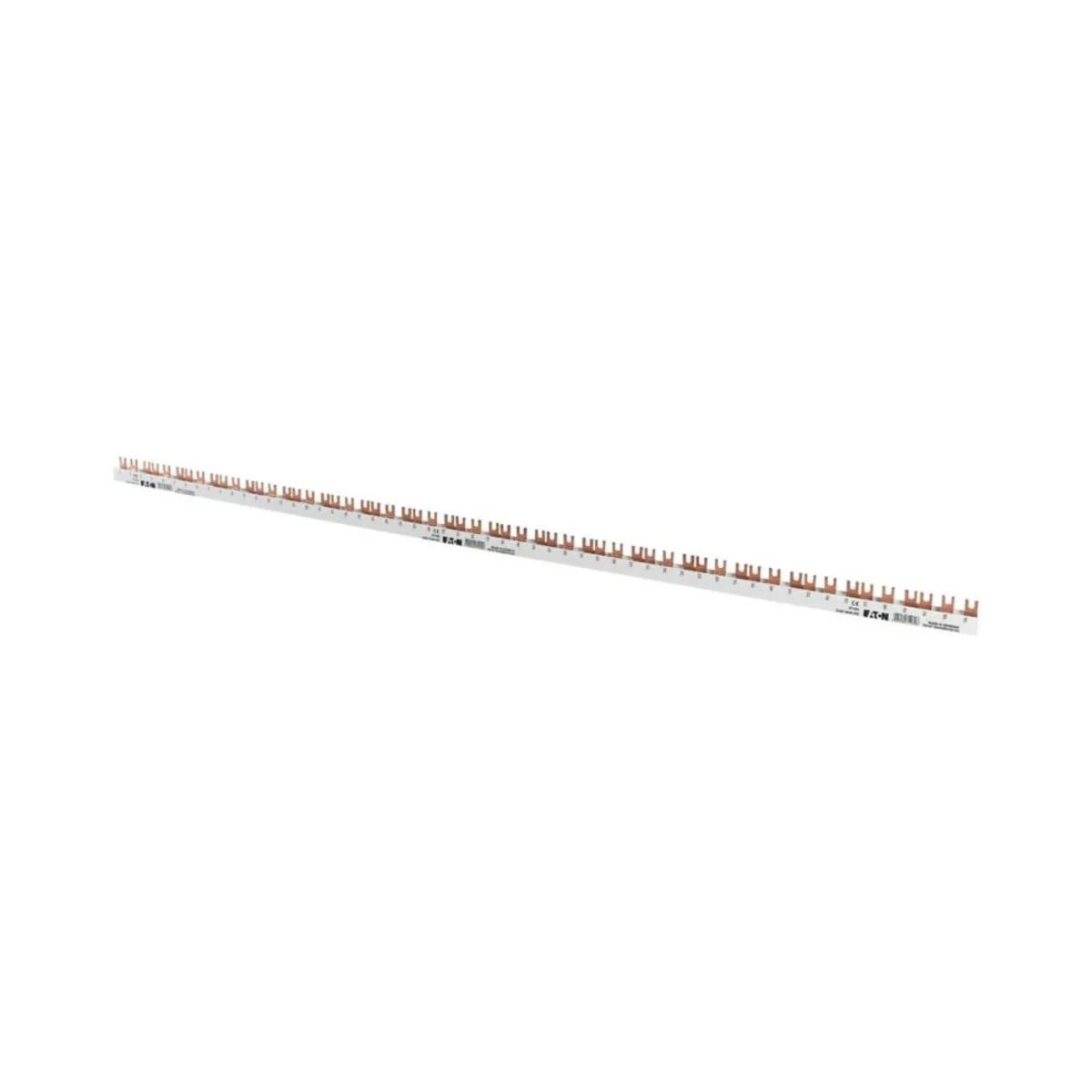

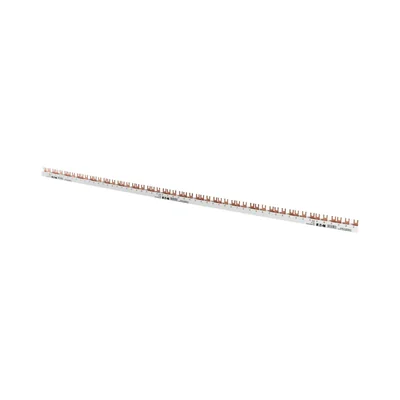

Rail for connecting modular equipment, Z-GV-16/1P+HS 271062
local index:
RIR088MOEL
Catalog No:
271062
EAN code:
4015082710620
Manufacturer:
EATON
number of phases: 1
Price:
71,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
10
)
Add to clipboard
Print
Ask about the product
Product description
Fork rails 16mm2
• Length 1 m
• 16 mm2 - rated current 80A
• Supplied without caps
• Length 1 m
• 16 mm2 - rated current 80A
• Supplied without caps
Technical data
-
number of phases1
-
PKWIU25.11.23.0
Other technical data
-
Number of phases1
-
Suitable for number of devices38
-
Cross section16 mm²
-
Liczba modułów1
-
Type of electric connectionFork
-
Rated surge voltage0 kV
-
Max. rated operation voltage Ue415 V
-
Suitable for devices with N-conductorNo
-
Number of poles1
-
Module width27 mm
-
Length1000 mm
-
Rated permanent current Iu80 A
-
InsulatedYes
-
Conditioned rated short-circuit current Iq25 kA
-
Rated short-time withstand current lcw0 kA
-
Suitable for devices with auxiliary switchYes
Bulk packaging
| A kind of package | Skrzynia | Karton | Karton |
| Quantity | 1 pcs. | 10 pcs. | 10 pcs. |
| Weight (kg) | 0,261 | 2,610 | 2,445 |
| Volume (m3) | 0,000 | 0,008 | 0,007 |
| Width (m) | 1,018 | 0,090 | 0,080 |
| Length (m) | 0,019 | 1,030 | 1,070 |
| Depth (m) | 0,016 | 0,090 | 0,080 |
