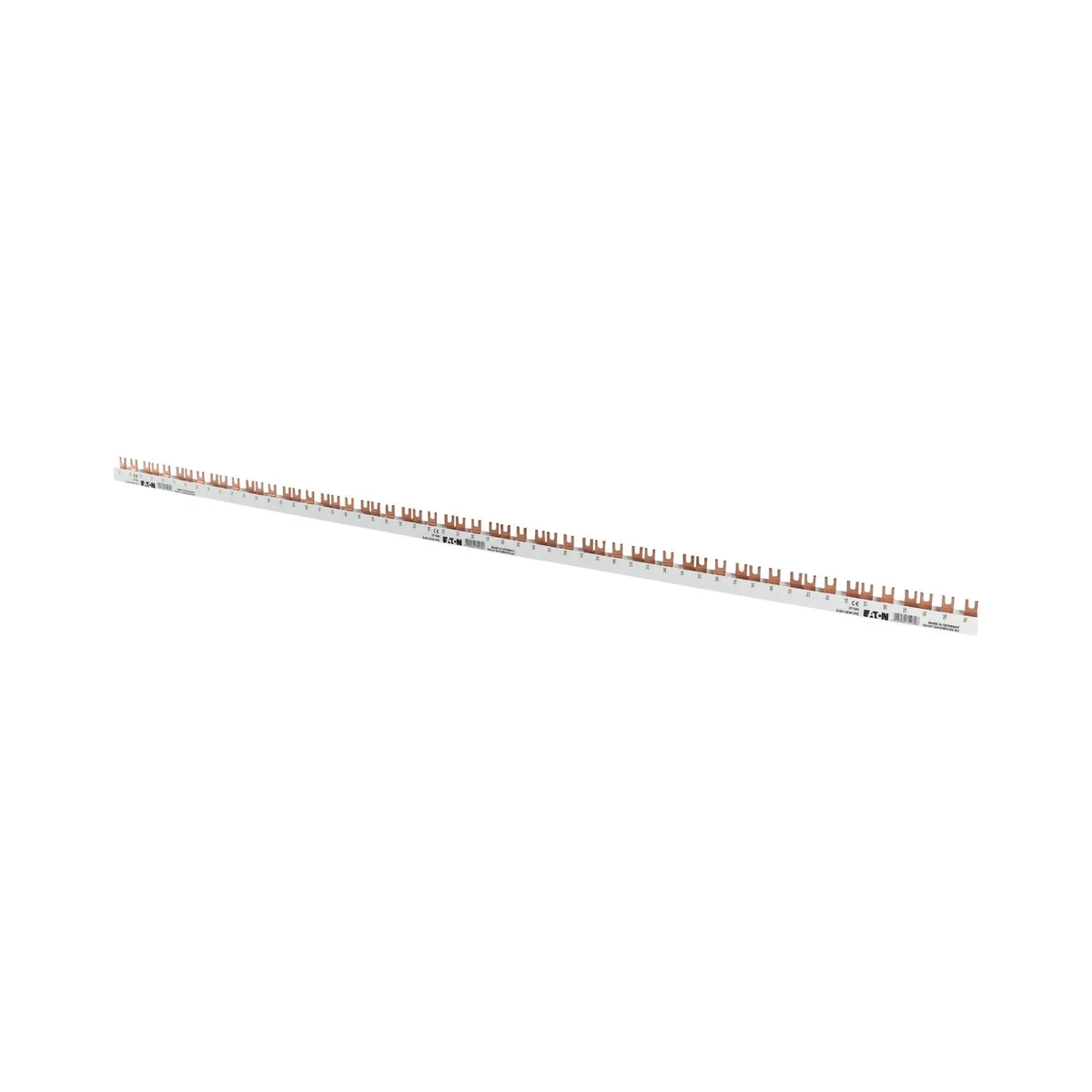

Rail for connecting modular equipment, Z-GV-16/1P-1TE 271061

local index:
RIR087MOEL
Catalog No:
271061
EAN code:
4015082710613
Manufacturer: EATON
number of phases: 1
Price:
32,91 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
10
)
Add to clipboard
Print

Product description

Fork rails 16mm2
• Length 1 m
• 16 mm2 - rated current 80A
• Supplied without caps

Technical data

  • number of phases
    1

Other technical data

  • Number of phases
    1
  • Suitable for number of devices
    56
  • Cross section
    16 mm²
  • Rated permanent current Iu
    80 A
  • Insulated
    Yes
  • Conditioned rated short-circuit current Iq
    0 kA
  • Rated short-time withstand current lcw
    0 kA
  • Suitable for devices with auxiliary switch
    No
  • Number of poles
    1
  • Module width
    0 mm
  • Length
    17.3 mm
  • Type of electric connection
    Fork
  • Rated surge voltage
    4 kV
  • Max. rated operation voltage Ue
    500 V
  • Suitable for devices with N-conductor
    No

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 10 pcs. 10 pcs.
Weight (kg) 0,275 2,750 2,974
Volume (m3) 0,000 0,002 0,004
Width (m) 1,018 0,110 0,080
Length (m) 0,019 0,175 1,070
Depth (m) 0,016 0,080 0,050
