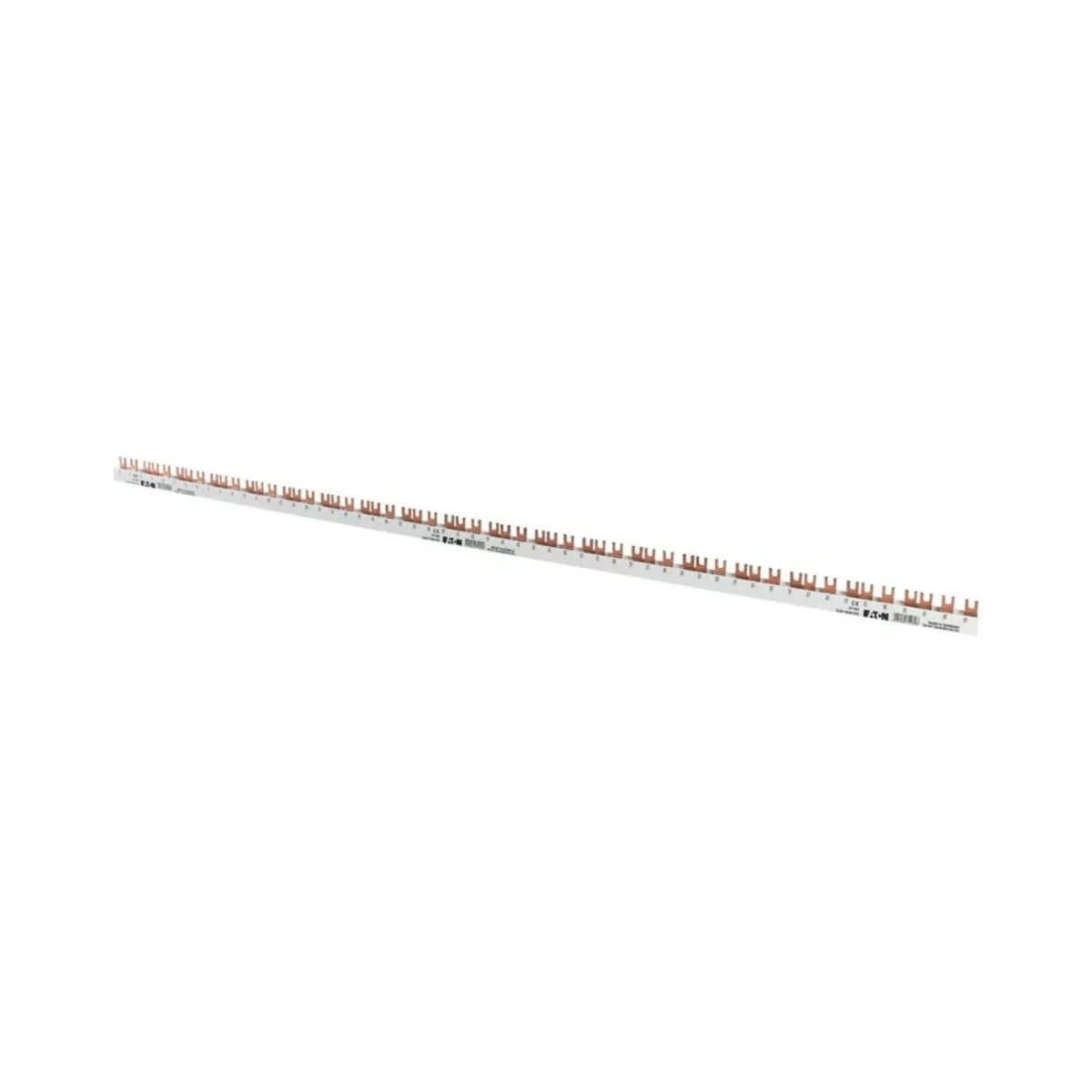

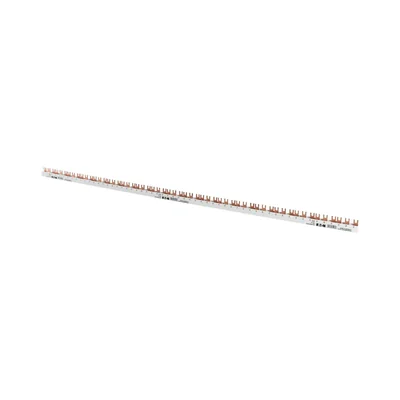

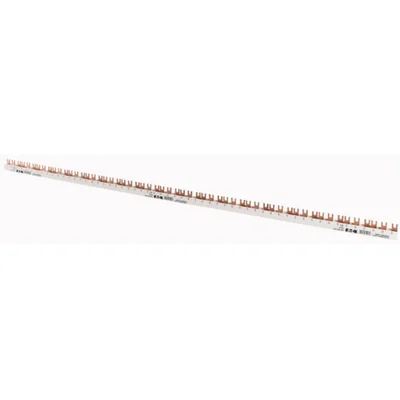

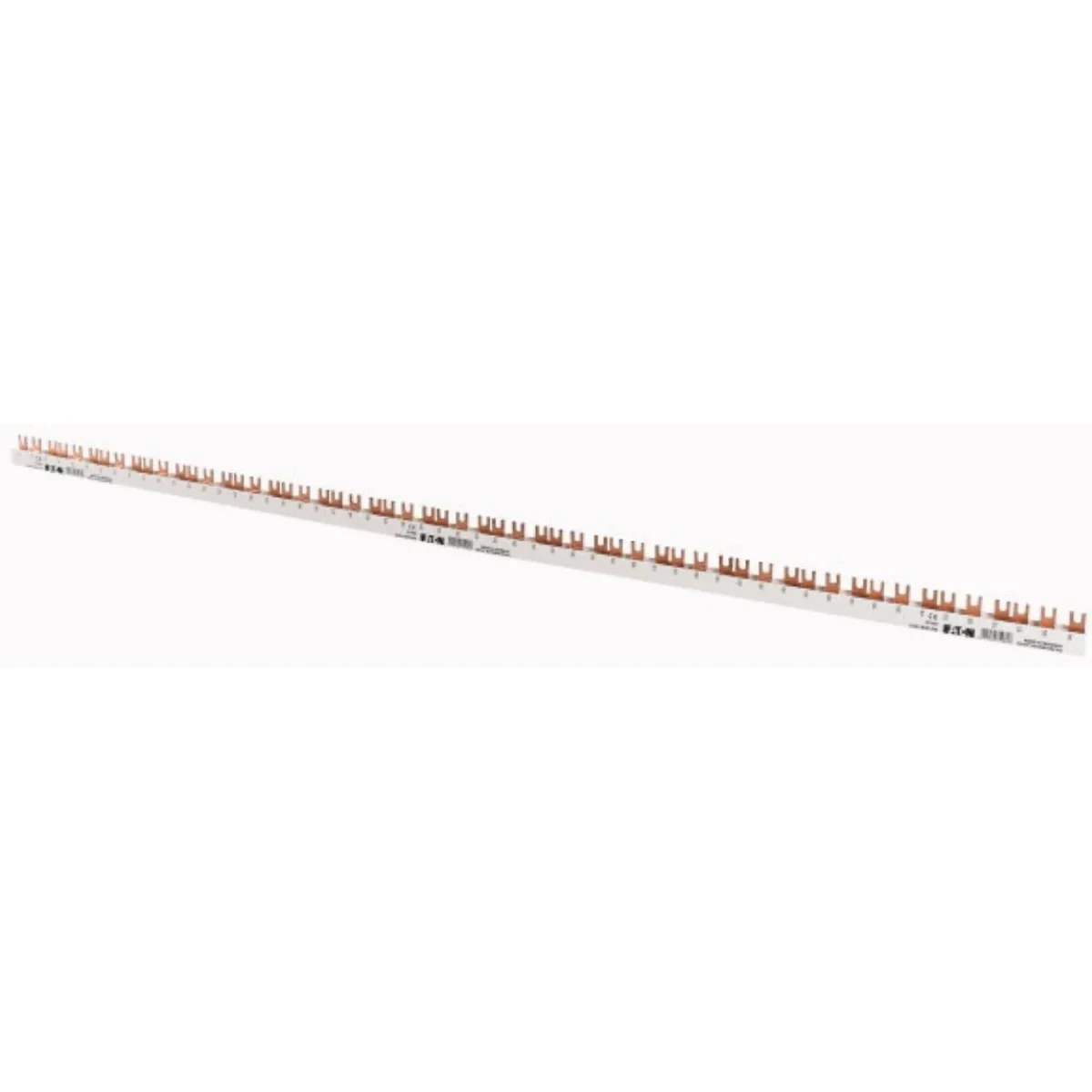

Rail for connecting modular equipment, Z-GV-10/1P-1TE 270339
local index:
RPU050MOEL
Catalog No:
270339
EAN code:
4015082703394
Manufacturer:
EATON
number of phases: 1
Price:
39,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
10
)
Add to clipboard
Print
Ask about the product
Product description
Fork rails 10mm2.
Technical data
-
number of phases1
Other technical data
-
Number of phases1
-
Suitable for number of devices57
-
Cross section10 mm²
-
Rated permanent current Iu63 A
-
InsulatedYes
-
Conditioned rated short-circuit current Iq25 kA
-
Rated short-time withstand current lcw0 kA
-
Suitable for devices with auxiliary switchNo
-
Number of poles1
-
Module width17.8 mm
-
Length16.8 mm
-
Type of electric connectionFork
-
Rated surge voltage0 kV
-
Max. rated operation voltage Ue415 V
-
Suitable for devices with N-conductorNo
Bulk packaging
| A kind of package | Skrzynia | Karton | Karton |
| Quantity | 1 pcs. | 10 pcs. | 100 pcs. |
| Weight (kg) | 0,243 | 2,430 | 2,675 |
| Volume (m3) | 0,000 | 0,007 | 0,007 |
| Width (m) | 1,018 | 0,080 | 0,080 |
| Length (m) | 0,019 | 1,070 | 1,070 |
| Depth (m) | 0,016 | 0,080 | 0,080 |
