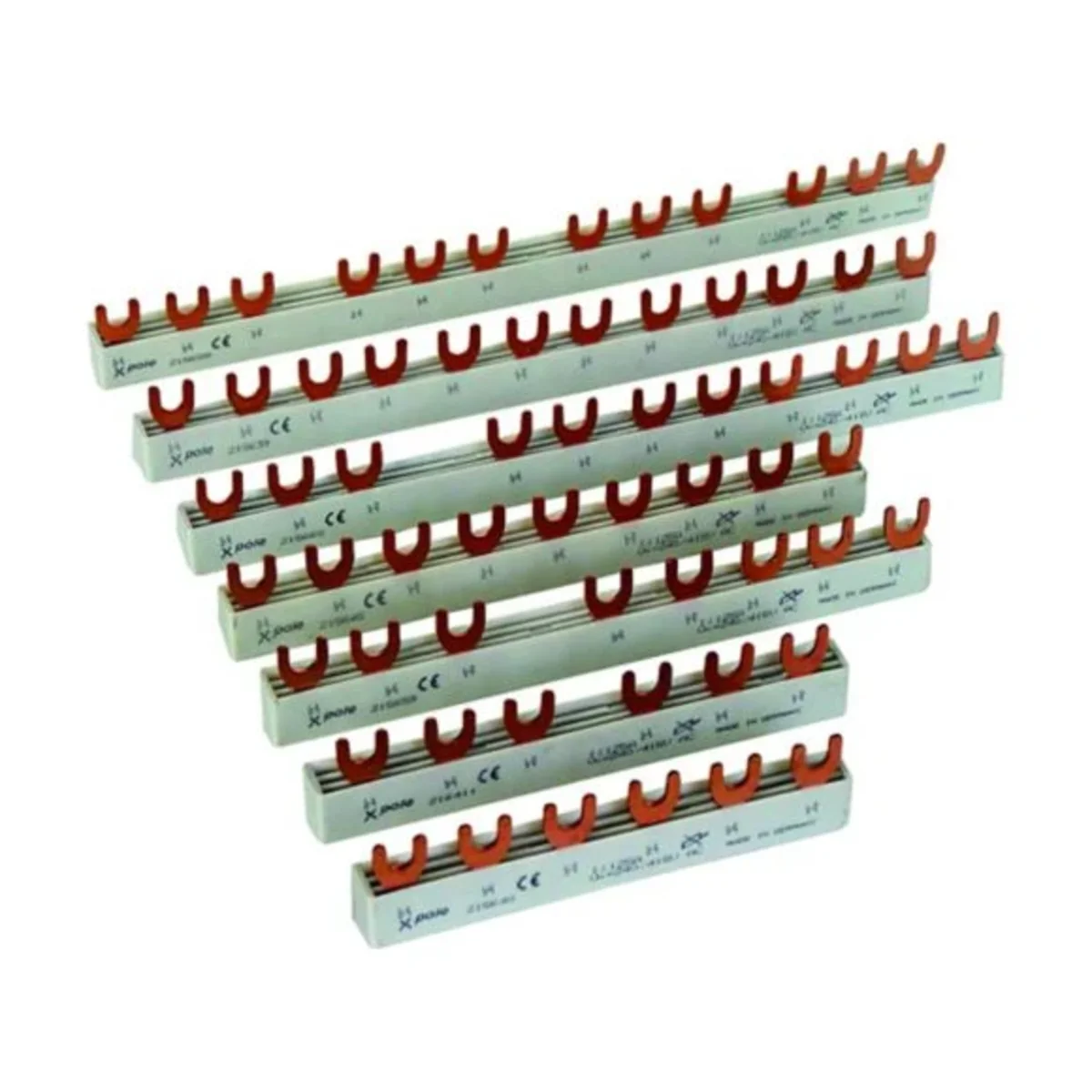

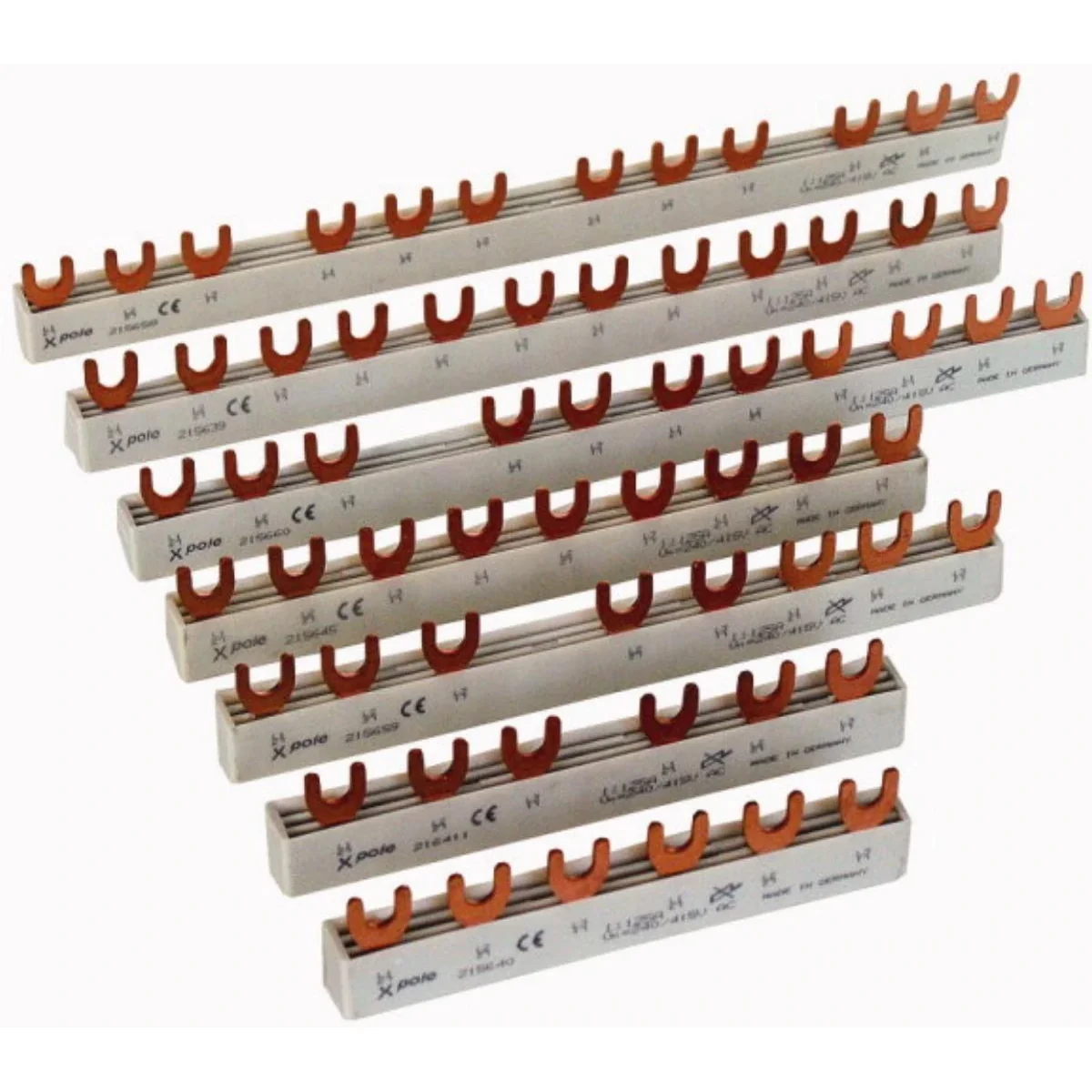

Rail for connecting modular equipment, EVG-4PHAS/12MODUL 215643
local index:
RIR097MOEL
Catalog No:
215643
EAN code:
4014380536710
Price:
94,69 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
10
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Euro-Vario busbars in fork design
• Rated current 63A.
• 10mm2
• Rated current 63A.
• 10mm2
Technical data
-
number of phases4
-
Number of modules12
Other technical data
-
Number of phases4
-
Suitable for number of devices3
-
Cross section10 mm²
-
Rated permanent current Iu63 A
-
InsulatedYes
-
Conditioned rated short-circuit current Iq25 kA
-
Rated short-time withstand current lcw0 kA
-
Suitable for devices with auxiliary switchNo
-
Number of poles4
-
Module width0 mm
-
Length210 mm
-
Type of electric connectionFork
-
Rated surge voltage4 kV
-
Max. rated operation voltage Ue500 V
-
Suitable for devices with N-conductorYes
Manufacturer details
-
ManufacturerEaton Electric Sp. z o.o.
-
Address80-299 Gdańsk Galaktyczna 30 Polska
-
E-mail
Bulk packaging
| A kind of package | Skrzynia | Karton | Karton |
| Quantity | 1 pcs. | 10 pcs. | 100 pcs. |
| Weight (kg) | 0,096 | 0,960 | 9,500 |
| Volume (m3) | 0,000 | 0,001 | 0,017 |
| Width (m) | 0,012 | 0,086 | 0,385 |
| Length (m) | 0,212 | 0,218 | 0,192 |
| Depth (m) | 0,032 | 0,075 | 0,230 |
Files to download
