Rail for connecting modular devices, EVG-4PHAS/8MODUL 215644

local index:
RRR355MOEL
Catalog No:
215644
EAN code:
4015082156442
Manufacturer: EATON
number of phases: 4
Number of modules: 8
Price:
19,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
10
)
Add to clipboard
Print

Product description

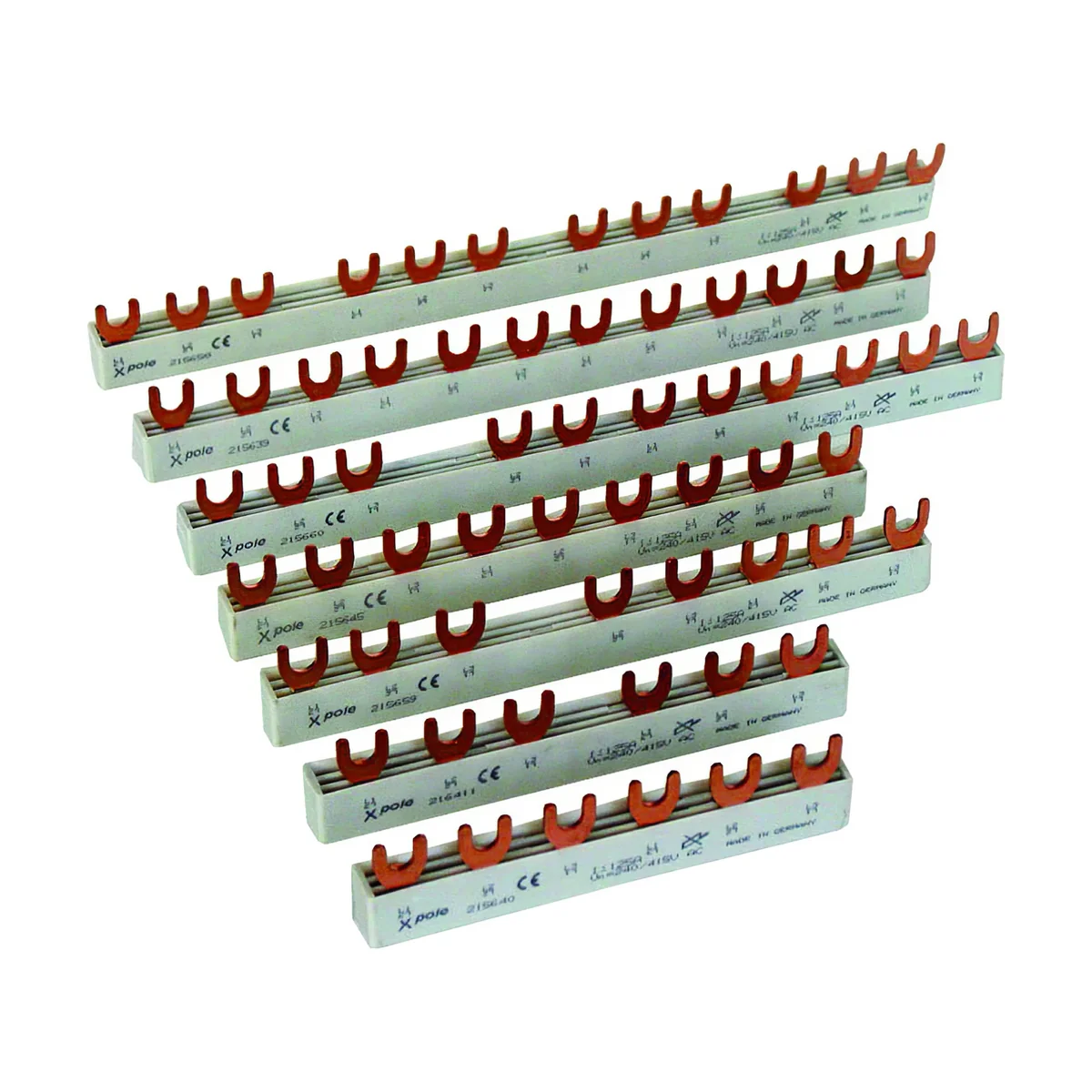

Euro-Vario busbars in fork design
• Rated current 63A.
• 10mm2

Technical data

  • number of phases
    4
  • Number of modules
    8

Other technical data

  • Number of phases
    4
  • Suitable for number of devices
    2
  • Cross section
    10 mm²
  • Rated permanent current Iu
    63 A
  • Insulated
    Yes
  • Conditioned rated short-circuit current Iq
    25 kA
  • Rated short-time withstand current lcw
    0 kA
  • Suitable for devices with auxiliary switch
    No
  • Number of poles
    4
  • Module width
    0 mm
  • Length
    140 mm
  • Type of electric connection
    Fork
  • Rated surge voltage
    4 kV
  • Max. rated operation voltage Ue
    500 V
  • Suitable for devices with N-conductor
    Yes

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 10 pcs. 100 pcs.
Weight (kg) 0,084 0,840 8,300
Volume (m3) 0,000 0,001 0,017
Width (m) 0,012 0,086 0,385
Length (m) 0,142 0,218 0,192
Depth (m) 0,032 0,075 0,230
