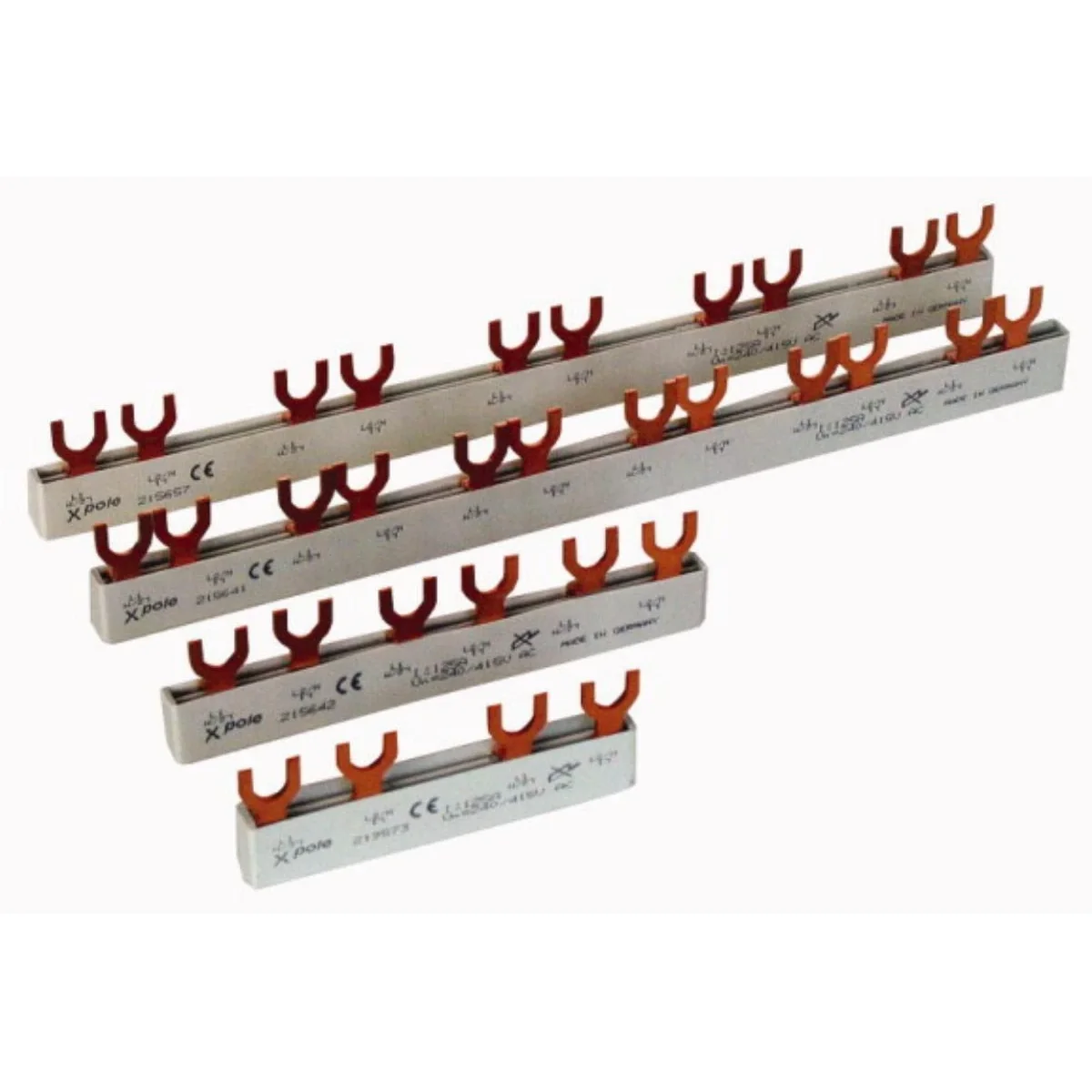

Rail for connecting modular devices, EVG-3PHAS/12MODUL/HI 215658
local index:
RIR196MOEL
Catalog No:
215658
EAN code:
4014380536918
Price:
13,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
20
)
Add to clipboard
Print
Ask about the product
Product description
Euro-Vario busbars in fork design
• Rated current 63A.
• 10mm2
• Rated current 63A.
• 10mm2
Technical data
-
number of phases3
-
Number of modules12
Other technical data
-
Number of phases3
-
Suitable for number of devices0
-
Cross section10 mm²
-
Rated permanent current Iu63 A
-
InsulatedYes
-
Conditioned rated short-circuit current Iq25 kA
-
Rated short-time withstand current lcw0 kA
-
Suitable for devices with auxiliary switchYes
-
Number of poles3
-
Module width0 mm
-
Length235 mm
-
Type of electric connectionFork
-
Rated surge voltage4 kV
-
Max. rated operation voltage Ue500 V
-
Suitable for devices with N-conductorNo
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 20 pcs. |
| Weight (kg) | 0,090 | 0,094 | 1,876 |
| Volume (m3) | 0,000 | 0,000 | 0,002 |
| Width (m) | 0,006 | 0,008 | 0,091 |
| Length (m) | 0,235 | 0,237 | 0,330 |
| Depth (m) | 0,030 | 0,032 | 0,080 |
