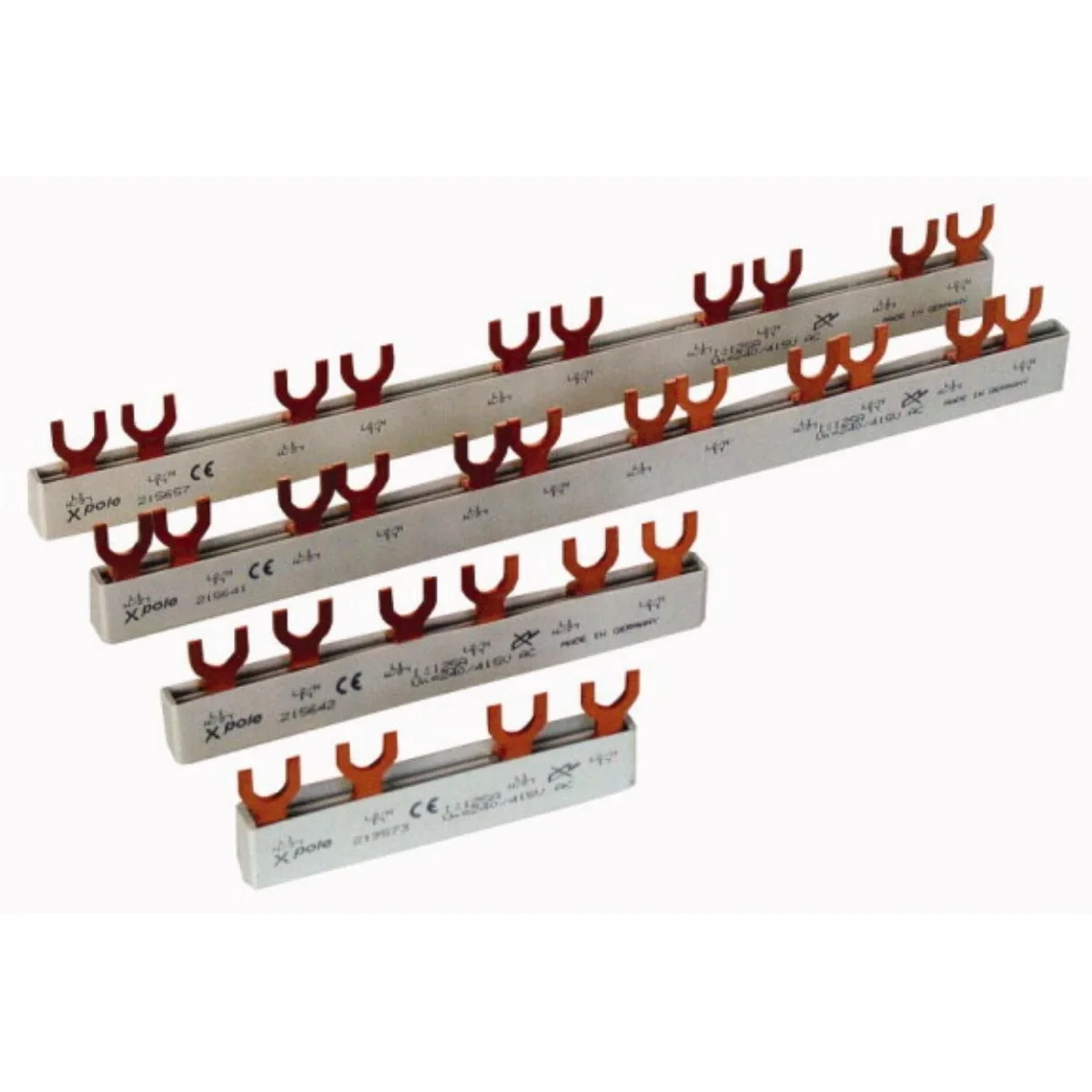

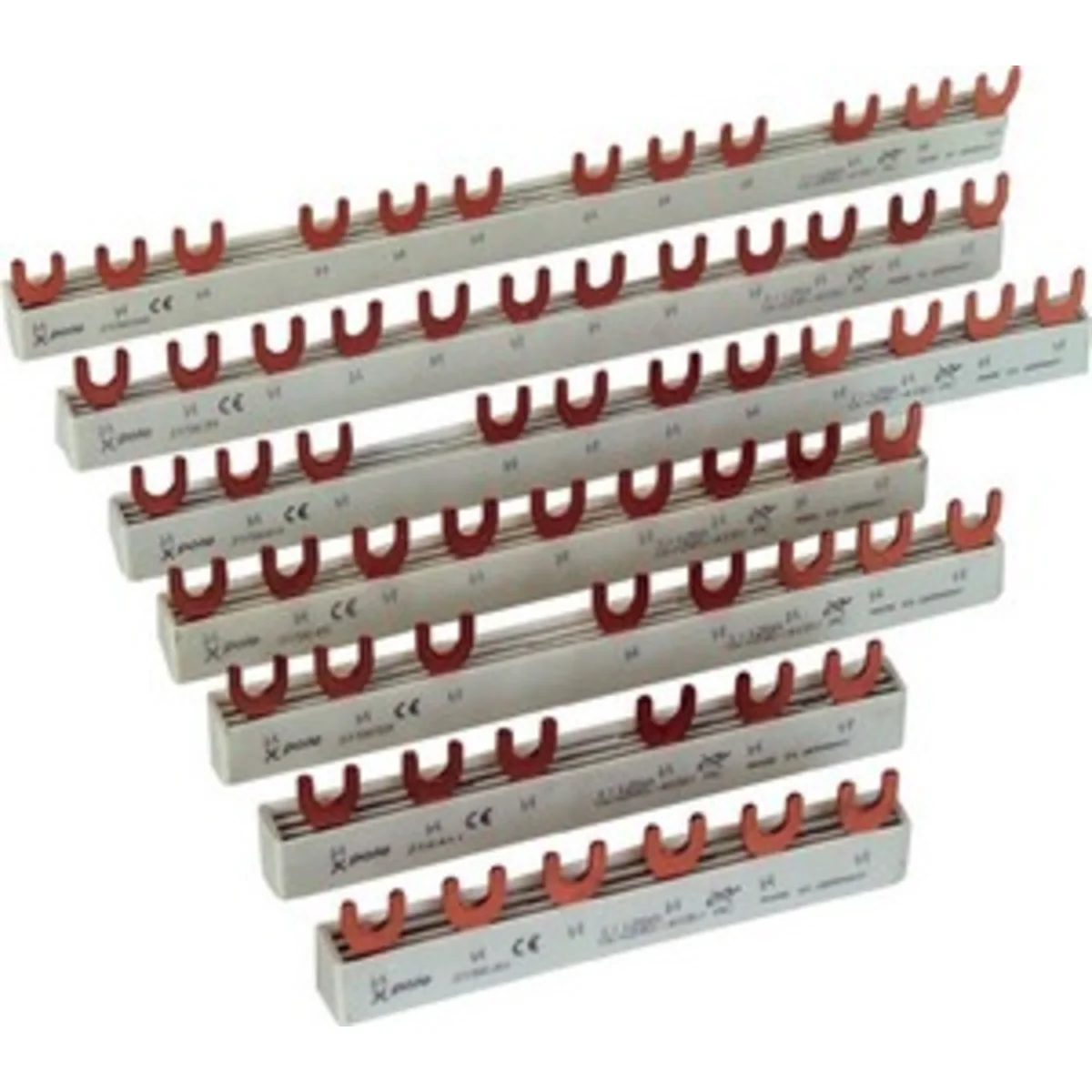

Rail for connecting modular devices, EVG-1PHAS/9MODUL/HI 215656

local index:
RRR369MOEL
Catalog No:
215656
EAN code:
4014380536871
Manufacturer: EATON
number of phases: 1
Number of modules: 9
Price:
11,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
40
)
Add to clipboard
Print

Product description

Euro-Vario busbars for connecting devices with auxiliary contacts.

Technical data

  • number of phases
    1
  • Number of modules
    9

Other technical data

  • Number of phases
    1
  • Suitable for number of devices
    18
  • Cross section
    10 mm²
  • Rated permanent current Iu
    63 A
  • Insulated
    Yes
  • Conditioned rated short-circuit current Iq
    25 kA
  • Rated short-time withstand current lcw
    0 kA
  • Suitable for devices with auxiliary switch
    Yes
  • Number of poles
    1
  • Module width
    0 mm
  • Length
    228 mm
  • Type of electric connection
    Fork
  • Rated surge voltage
    4 kV
  • Max. rated operation voltage Ue
    500 V
  • Suitable for devices with N-conductor
    Yes

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 40 pcs.
Weight (kg) 0,043 1,716
Volume (m3) 0,000 0,002
Width (m) 0,006 0,091
Length (m) 0,230 0,330
Depth (m) 0,023 0,080
