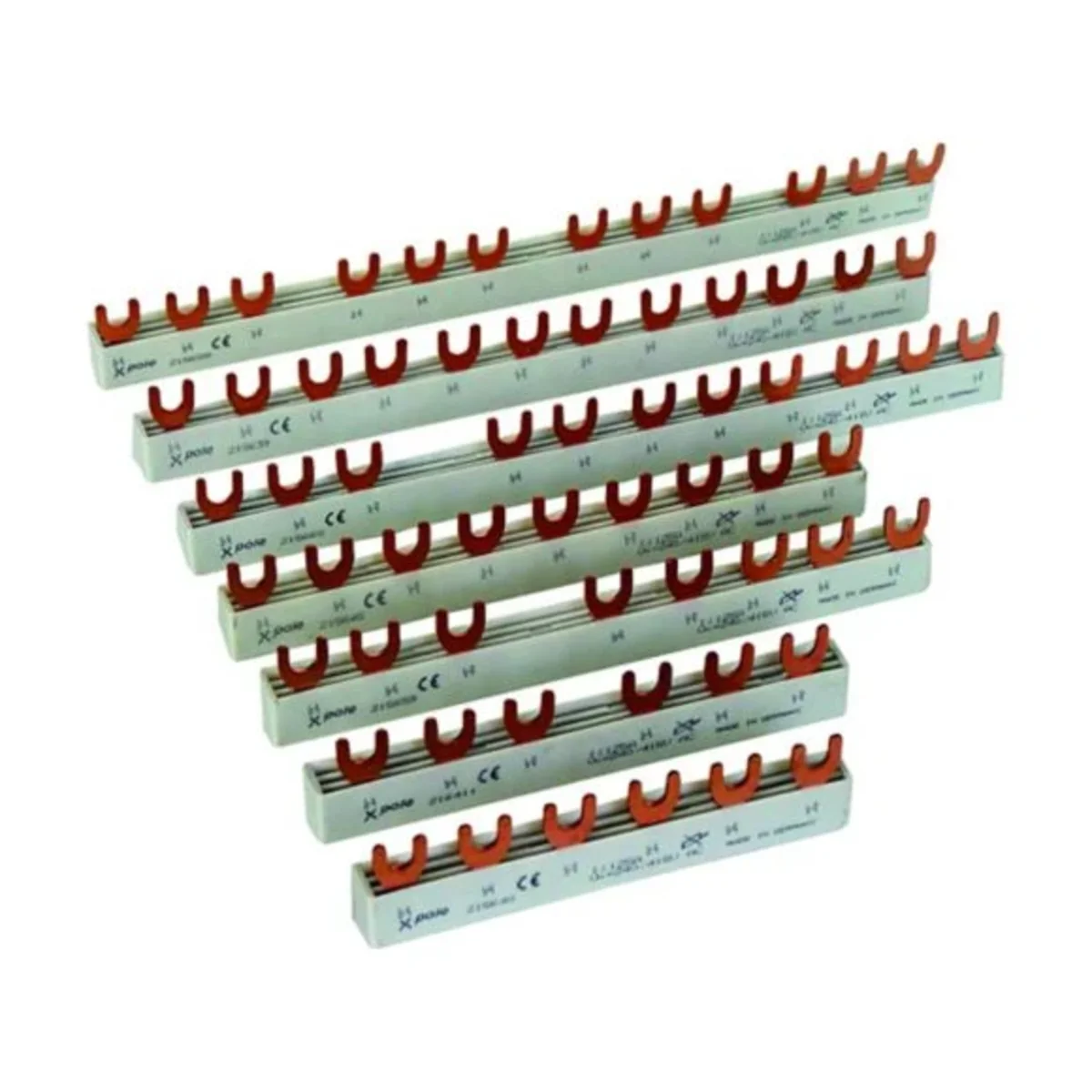

Rail for connecting modular devices, EVG-1PHAS/6MODUL 215638

local index:
RIR084MOEL
Catalog No:
215638
EAN code:
4014380536666
Manufacturer: EATON
Number of poles: 1
Price:
4,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
40
)
Add to clipboard
Print

Product description

Euro-Vario connection rails in fork design.

Technical data

  • Number of poles
    1

Other technical data

  • Number of phases
    1
  • Suitable for number of devices
    6
  • Cross section
    10 mm²
  • Rated permanent current Iu
    63 A
  • Insulated
    Yes
  • Conditioned rated short-circuit current Iq
    25 kA
  • Rated short-time withstand current lcw
    0 kA
  • Suitable for devices with auxiliary switch
    No
  • Number of poles
    1
  • Module width
    0 mm
  • Length
    105 mm
  • Type of electric connection
    Fork
  • Rated surge voltage
    4 kV
  • Max. rated operation voltage Ue
    500 V
  • Suitable for devices with N-conductor
    No

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 40 pcs. 800 pcs.
Weight (kg) 0,021 0,850 16,800
Volume (m3) 0,000 0,001 0,017
Width (m) 0,032 0,091 0,385
Length (m) 0,107 0,113 0,192
Depth (m) 0,037 0,077 0,230
