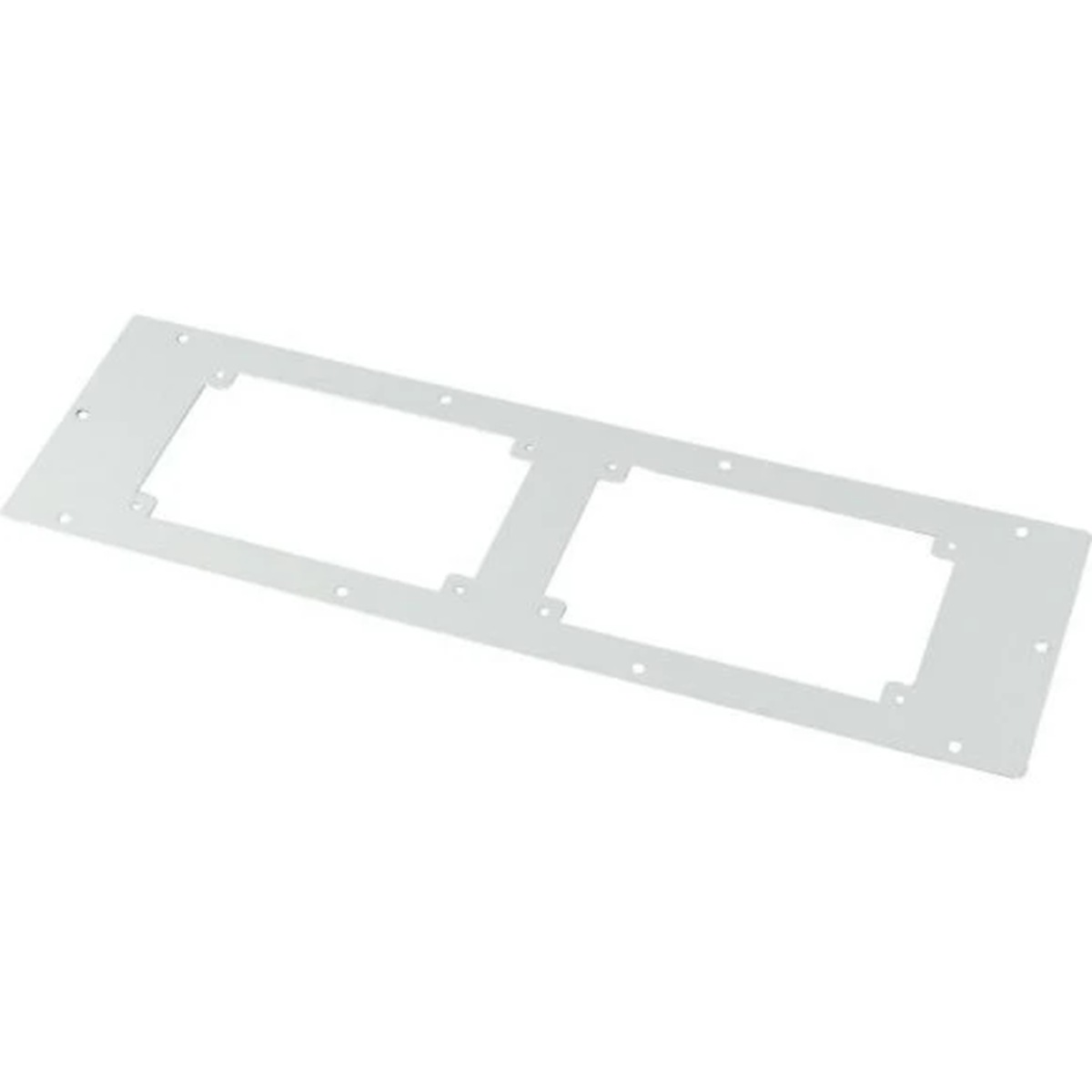

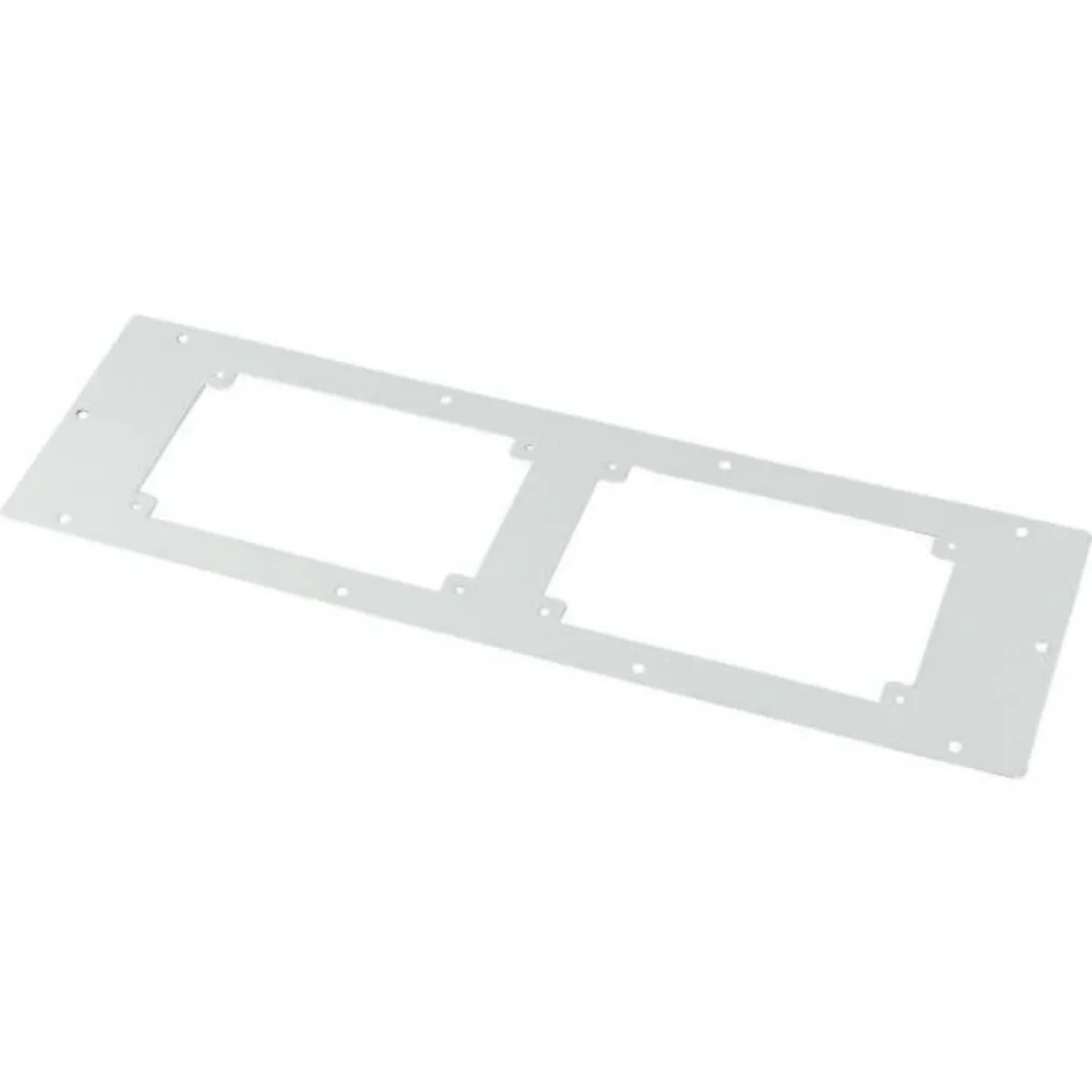

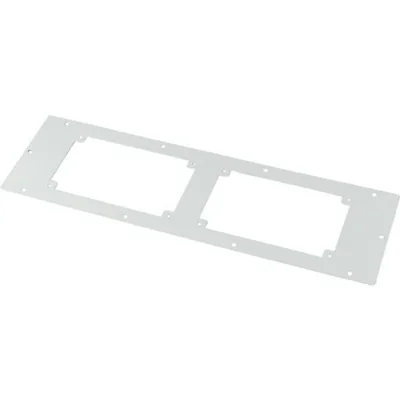

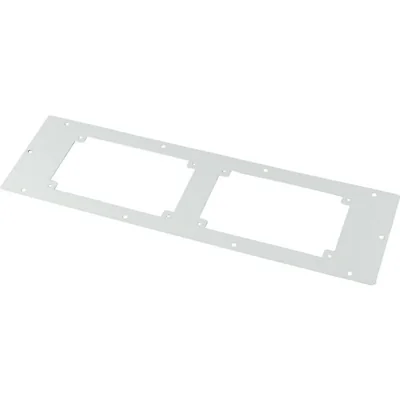

Plate for mounting flanges in CS, AFP-6-CS enclosures 112917

local index:
RRR522MOEL
Catalog No:
112917
EAN code:
4015081124558
Manufacturer: EATON
For enclosures: CS-46/200 CS-46/250 CS-46/300 CS-66/200 CS-66/250, CS-66/300, CS-86/200, CS-86/250, CS-86/300, CS-106/250, CS-106/300, CS-126/250
Number of flanges F3A: 2
Width [mm]: 600
Price:
54,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Bottom cover with a cut-out for F3A flanges
• Not suitable for 150mm depth
• Holes prepared for F3A-...
• With proper use of F3A flanges, the maximum degree of protection is IP 55
• Made of steel sheet, powder coated in gray RAL 7035

Technical data

  • For enclosures
    CS-46/200 CS-46/250 CS-46/300 CS-66/200 CS-66/250, CS-66/300, CS-86/200, CS-86/250, CS-86/300, CS-106/250, CS-106/300, CS-126/250
  • Width [mm]
    600
  • Number of flanges F3A
    2
  • PKWIU
    25.11.23.0

Other technical data

  • Model
    Floor plate
  • Suitable for enclosure building height
    1200 mm
  • Width
    600 mm
  • Depth
    175 mm
  • Material
    Metal
  • RAL-number
    7035
  • Suitable for enclosure building width
    600 mm
  • Suitable for enclosure building depth
    300 mm
  • Height
    5 mm
  • Max. load capacity
    0 kg
  • Colour
    Grey

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,068
Volume (m3) 0,001
Width (m) 0,620
Length (m) 0,005
Depth (m) 0,190
