ORION plus auto/distribution housing transparent door 650X500X250 FL170A

Name: ORION plus auto/distribution housing transparent door 650X500X250
Brand: HAGER
SKU: RMH005HAGE
Price: 280.71 PLN

local index:

RMH005HAGE

Catalog No:

FL170A

EAN code:

3250610670736

ORION plus auto/distribution housing transparent door 650X500X250

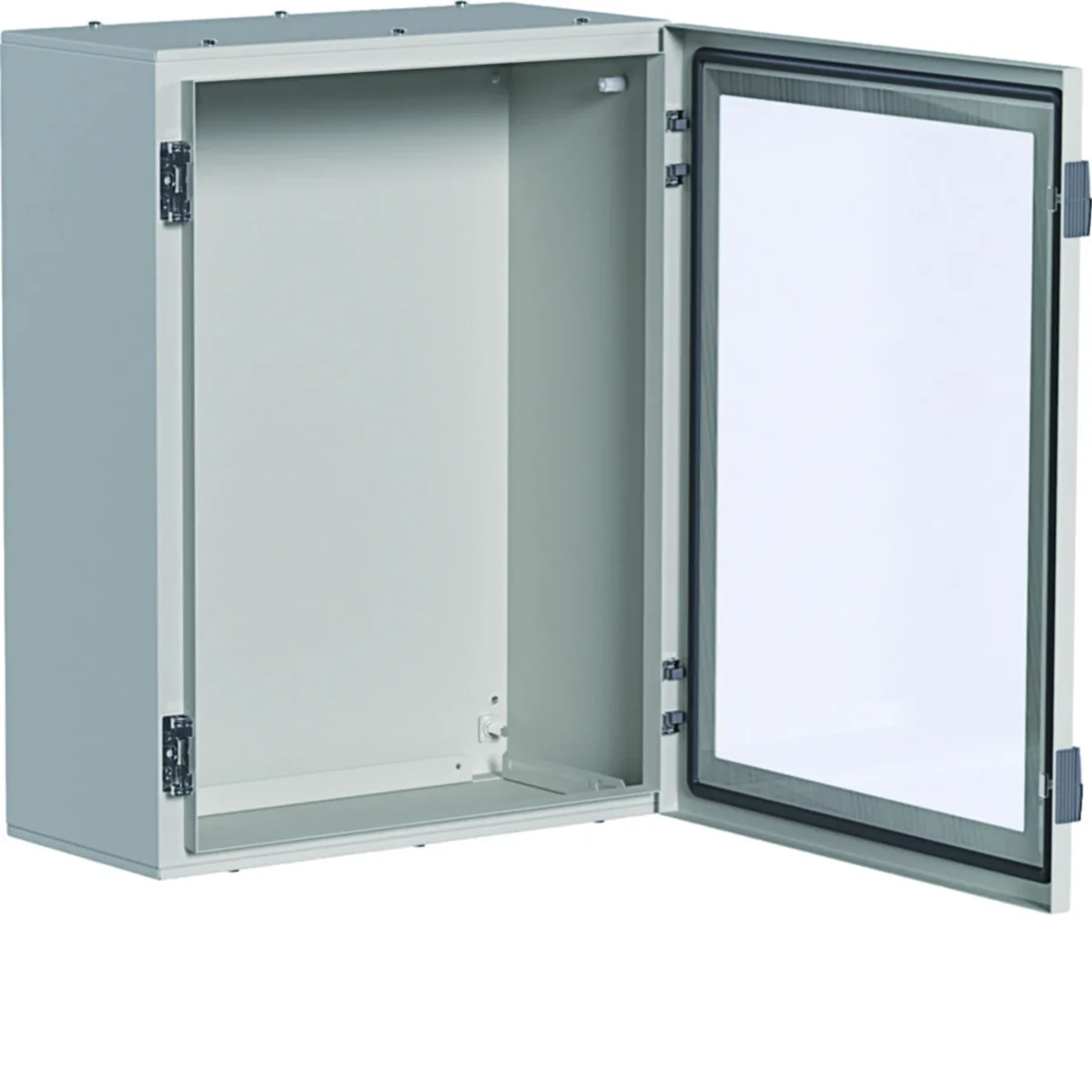

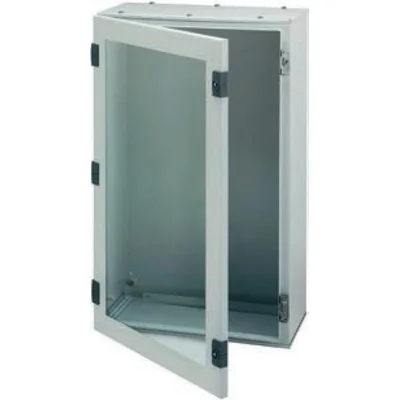

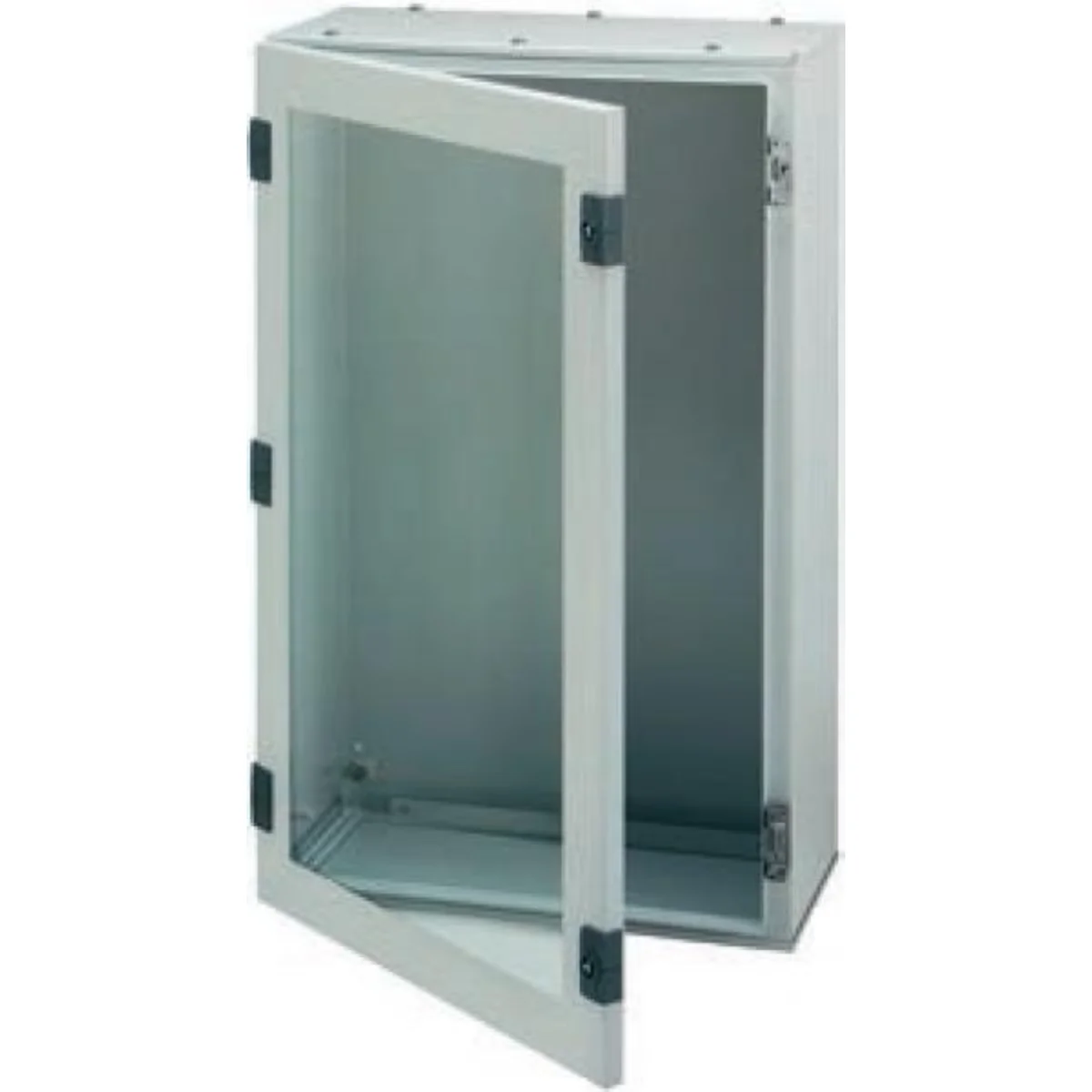

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 200

Level of security: IP65

Width [mm]: 500

See full description

Price:

280,71 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Orion Plus chassis auto/distribution transparent door 650x500x250
• surface-mounted enclosures IP65/IK10
• for indoor applications
• insulation class I
• color RAL 7035 (grey)
• standards: EN 60439-1, EN 62208, EN 50298
• metal door with one or two locks with a triangular insert
• the ability to easily change the door from left to right
• perfectly fixed and fitted door
• standard housings adapted for direct mounting of mounting plates
• facilitated preparation of cable entries through dismountable lower and upper casing plates
Internal development system:
• housing for devices for rated current max. 630A
• rated voltage Un - 400 V, 50/60 Hz
• rated insulation voltage Ui - 690 V
• impulse voltage Uimp - 8 kV
• short-circuit current max. Icc - 35kA

Technical data

Depth [mm]

200
Width [mm]

500
PKWIU

27.12.40.0

Level of security

IP65
Height [mm]

650

Other technical data

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

Yes
Nominal current (In)

630 A
Width

500 mm
Built-in depth

250 mm
Material plate thickness cabinet

1.2 mm
Colour

Grey
Number of modules

88
Width in number of modular spacings

22
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Type of covering

Door
Type of door

Single
With lock

Yes
Height

650 mm
Depth

250 mm
Inner depth

200 mm
Material plate thickness door/cover

21.5 mm
RAL-number

7035
Number of rows

4
Number of openings for flange plates

2
Number of conduit inlets

2
Surface protection

Powder coating
Suitable for outdoor use

Yes
Degree of protection (IP)

IP65
Impact strength

IK10

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	8 pcs.
Weight (kg)	16,000	16,400	131,200
Width (m)	0,500	0,270	0,800
Length (m)	0,650	0,700	1,200
Depth (m)	0,250	0,525	1,200
