ORION plus auto/distribution housing full door 950X600X250 FL125A

Name: ORION plus auto/distribution housing full door 950X600X250
Brand: HAGER
SKU: RMP010HAGE
Price: 348.42 PLN

local index:

RMP010HAGE

Catalog No:

FL125A

EAN code:

3250610670552

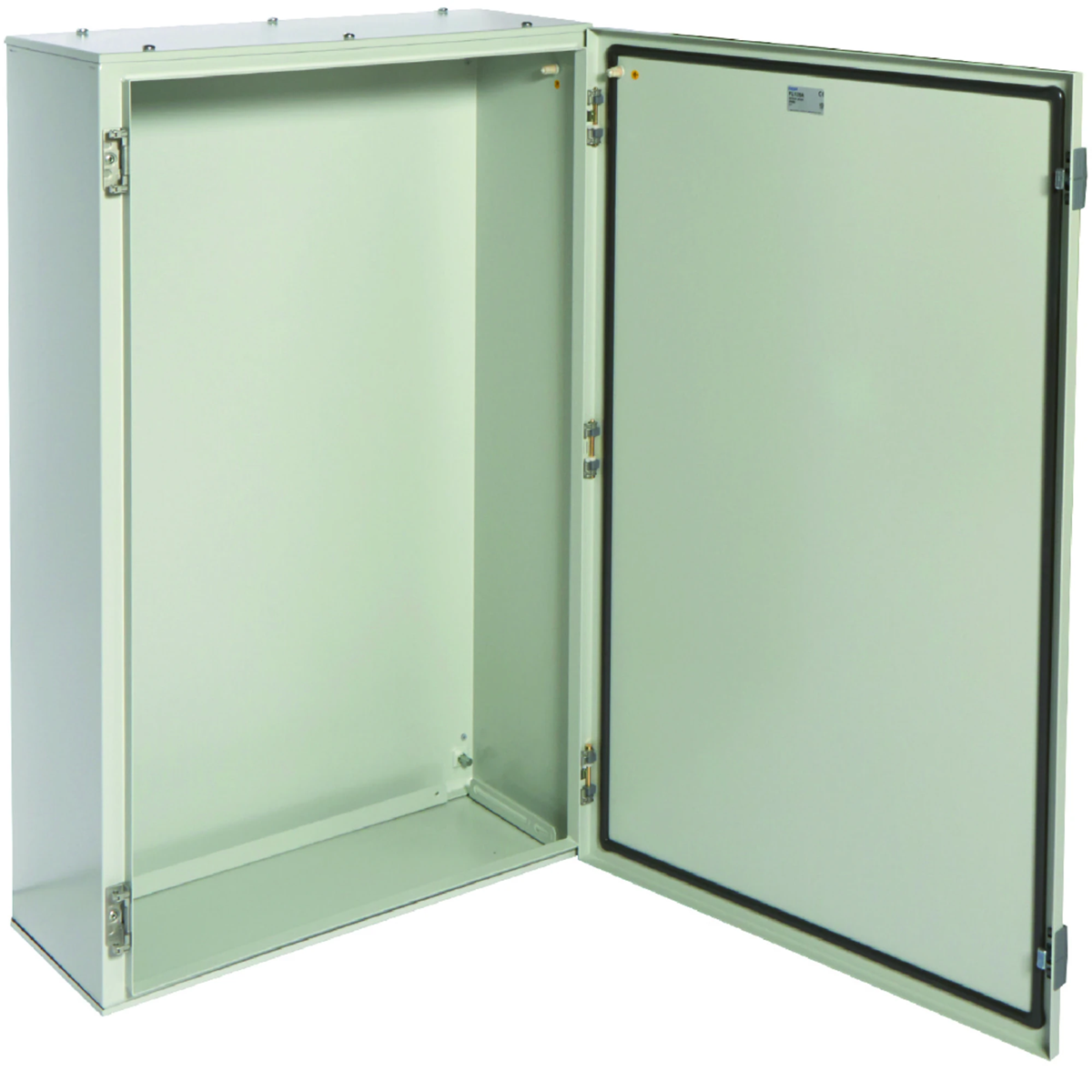

ORION plus auto/distribution housing full door 950X600X250

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 250

Level of security: IP65

Width [mm]: 600

See full description

Price:

348,42 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Orion Plus chassis auto/distribution full door 950x600x250
• surface-mounted enclosures IP65/IK10
• for indoor applications
• insulation class I
• color RAL 7035 (grey)
• standards: EN 60439-1, EN 62208, EN 50298
• metal door with one or two locks with a triangular insert
• the ability to easily change the door from left to right
• perfectly fixed and fitted door
• standard housings adapted for direct mounting of mounting plates
• facilitated preparation of cable entries through dismountable lower and upper enclosure plates
Interior development system:
• housing for devices for rated current max. 630A
• rated voltage Un - 400 V, 50/60 Hz
• rated insulation voltage Ui - 690 V
• impulse voltage Uimp - 8 kV
• short-circuit current max. Icc - 35kA

Technical data

Depth [mm]

250
Width [mm]

600
PKWIU

27.12.40.0

Level of security

IP65
Height [mm]

950

Other technical data

Mounting method

Other
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

630 A
Width

600 mm
Built-in depth

250 mm
Material plate thickness cabinet

2 mm
Colour

Grey
Number of modules

156
Width in number of modular spacings

26
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Type of covering

Cover
Type of door

Single
With lock

Yes
Height

950 mm
Depth

250 mm
Inner depth

250 mm
Material plate thickness door/cover

2 mm
RAL-number

7035
Number of rows

6
Number of openings for flange plates

2
Number of conduit inlets

2
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP65
Impact strength

IK10

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	4 pcs.
Weight (kg)	24,030	35,000	100,000
Width (m)	6,000	0,282	0,800
Length (m)	9,500	0,995	1,160
Depth (m)	2,500	0,630	1,200
