ORION plus auto/distribution housing full door 1250X800X300 FL130A

Name: ORION plus auto/distribution housing full door 1250X800X300
Brand: HAGER
SKU: RMR010HAGE
Price: 609.08 PLN

local index:

RMR010HAGE

Catalog No:

FL130A

EAN code:

3250610674147

ORION plus auto/distribution housing full door 1250X800X300

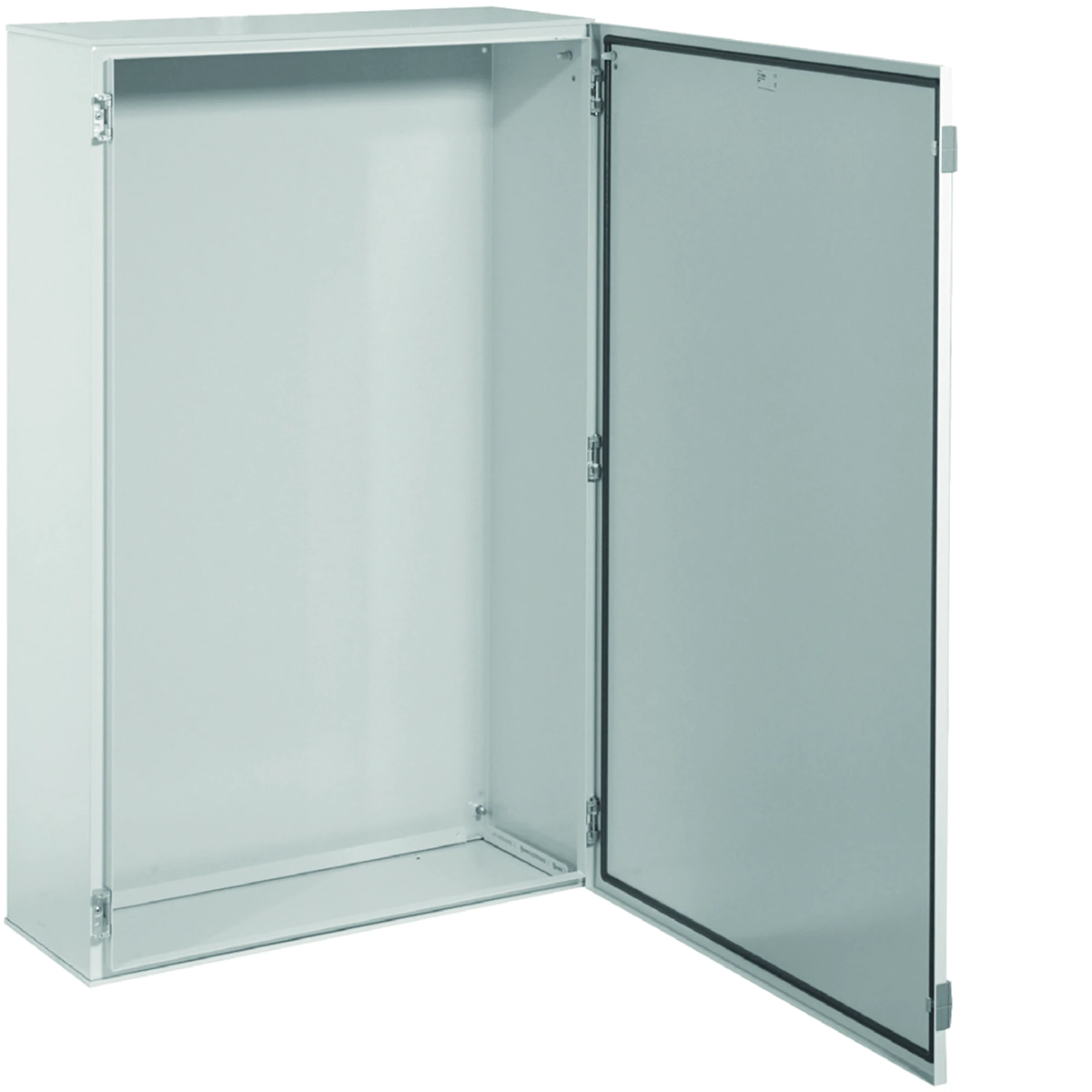

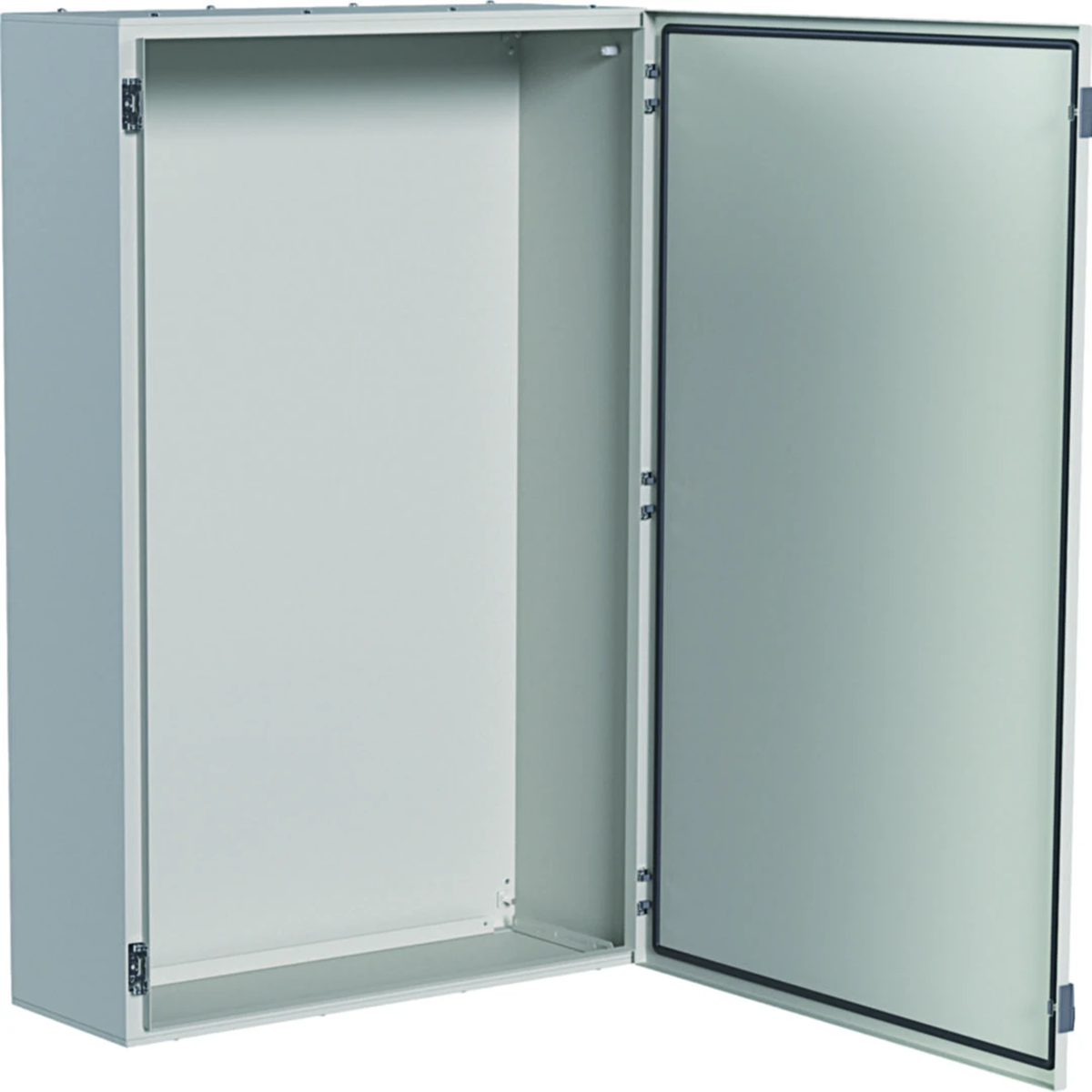

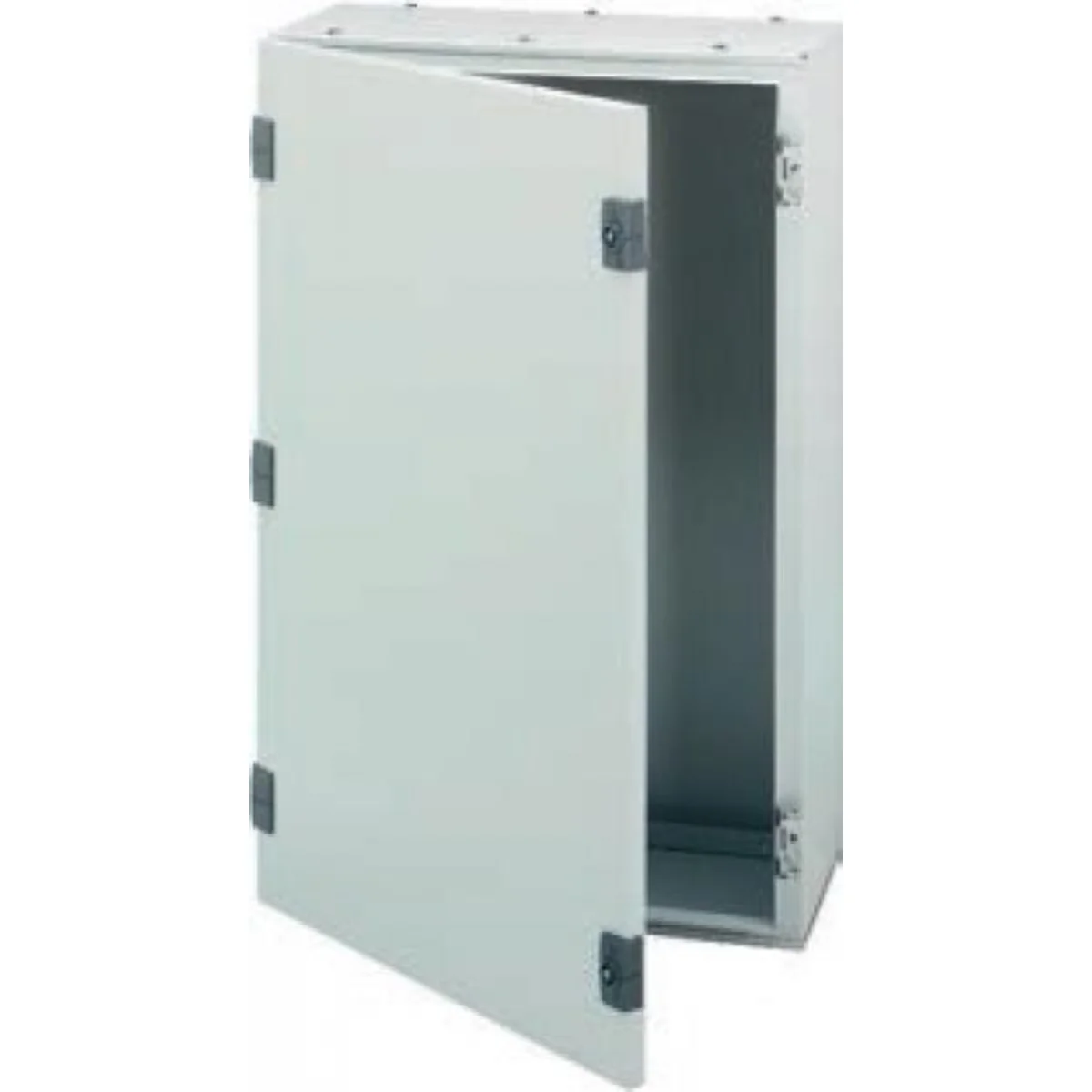

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 300

Level of security: IP65

Width [mm]: 800

See full description

Large-size product

Price:

609,08 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Orion Plus chassis auto/distribution full door 1250x800x300
• surface-mounted enclosures IP65/IK10
• for indoor applications
• insulation class I
• color RAL 7035 (grey)
• standards: EN 60439-1, EN 62208, EN 50298
• metal door with one or two locks with a triangular insert
• the ability to easily change the door from left to right
• perfectly fixed and fitted door
• standard housings adapted for direct mounting of mounting plates
• facilitated preparation of cable entries through dismountable lower and upper enclosure plates
Interior development system:
• housing for devices for rated current max. 630A
• rated voltage Un - 400 V, 50/60 Hz
• rated insulation voltage Ui - 690 V
• impulse voltage Uimp - 8 kV
• short-circuit current max. Icc - 35kA

Technical data

Depth [mm]

300
Width [mm]

800
PKWIU

27.12.40.0

Level of security

IP65
Height [mm]

1250

Other technical data

Mounting method

Other
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

630 A
Width

800 mm
Built-in depth

350 mm
Material plate thickness cabinet

2 mm
Colour

Grey
Number of modules

296
Width in number of modular spacings

37
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Type of covering

Cover
Type of door

Single
With lock

Yes
Height

1250 mm
Depth

300 mm
Inner depth

300 mm
Material plate thickness door/cover

2 mm
RAL-number

7035
Number of rows

8
Number of openings for flange plates

2
Number of conduit inlets

2
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP65
Impact strength

IK10

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	3 pcs.
Weight (kg)	40,000	40,100	120,300
Width (m)	0,800	0,320	0,830
Length (m)	1,250	1,290	1,450
Depth (m)	0,350	0,830	1,200
