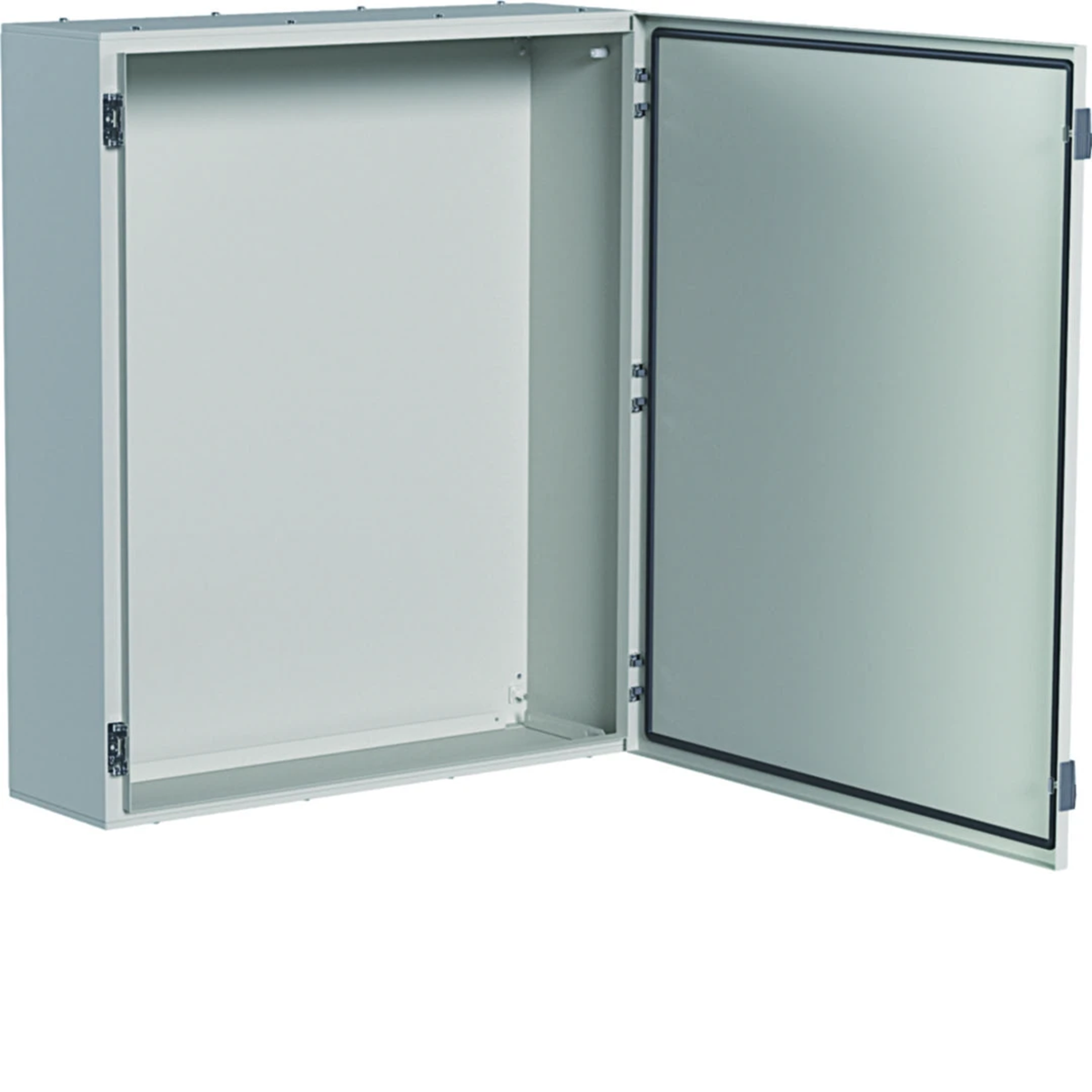

ORION enclosure plus automation/distribution solid door FL127A

Orion Plus chassis auto/distribution full door 950x800x250
• surface-mounted enclosures IP65/IK10
• for indoor applications
• insulation class I
• color RAL 7035 (grey)
• standards: EN 60439-1, EN 62208, EN 50298
• metal door with one or two locks with a triangular insert
• the ability to easily change the door from left to right
• perfectly fixed and fitted door
• standard housings adapted for direct mounting of mounting plates
• facilitated preparation of cable entries through dismountable lower and upper enclosure plates
Interior development system:
• housing for devices for rated current max. 630A
• rated voltage Un - 400 V, 50/60 Hz
• rated insulation voltage Ui - 690 V
• impulse voltage Uimp - 8 kV
• short-circuit current max. Icc - 35kA
