ORION enclosure plus automation/distribution solid door FL107A

Name: ORION enclosure plus automation/distribution solid door
Brand: HAGER
SKU: RMH016HAGE
Price: 135.44 PLN

local index:

RMH016HAGE

Catalog No:

FL107A

EAN code:

3250610674031

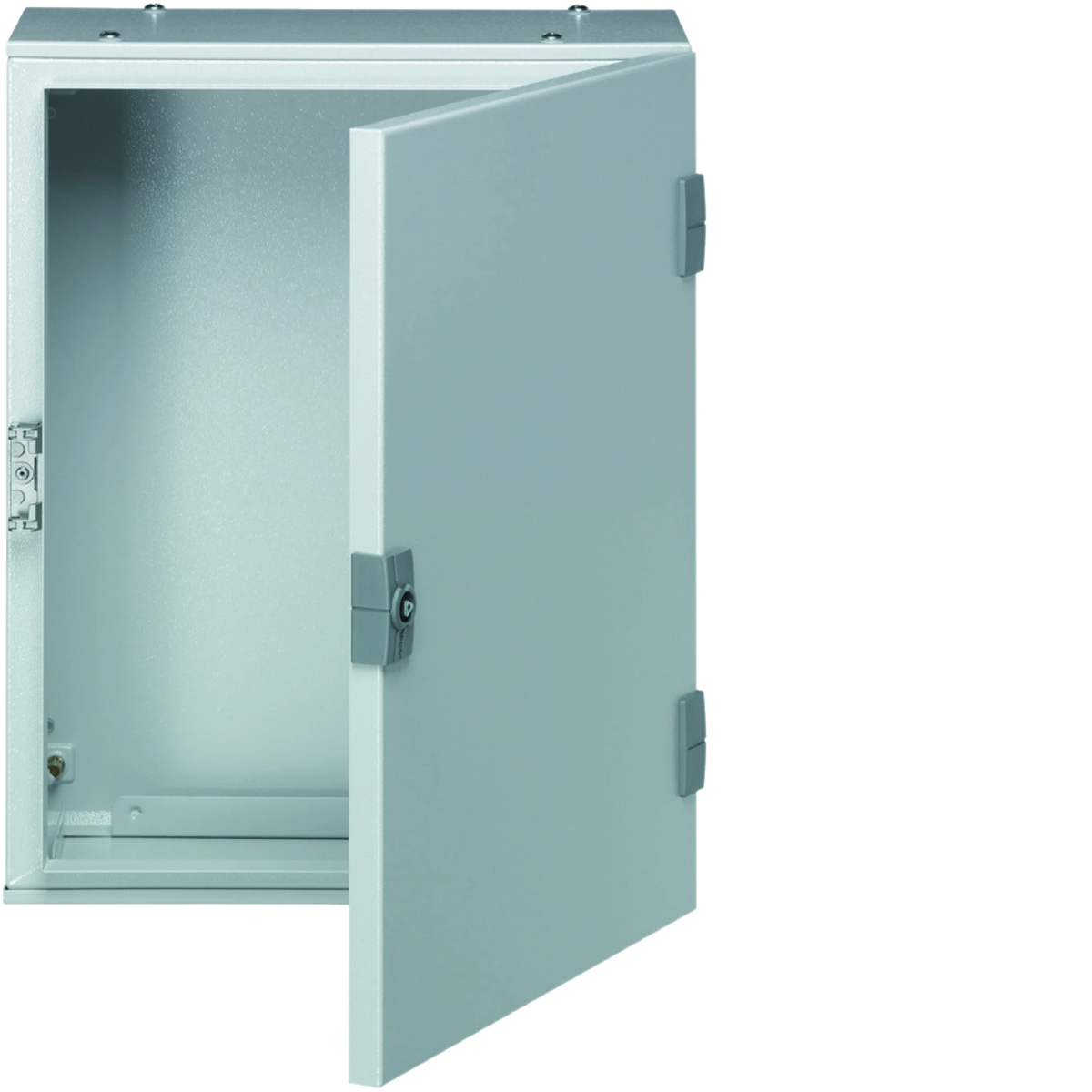

ORION enclosure plus automation/distribution solid door

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 200

Level of security: IP65

Width [mm]: 300

See full description

Price:

135,44 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Orion Plus chassis auto/distribution full door 400x300x200
• surface-mounted enclosures IP65/IK10
• for indoor applications
• insulation class I
• color RAL 7035 (grey)
• standards: EN 60439-1, EN 62208, EN 50298
• metal door with one or two locks with a triangular insert
• the ability to easily change the door from left to right
• perfectly fixed and fitted door
• standard housings adapted for direct mounting of mounting plates
• facilitated preparation of cable entries through dismountable lower and upper enclosure plates
Interior development system:
• housing for devices for rated current max. 630A
• rated voltage Un - 400 V, 50/60 Hz
• rated insulation voltage Ui - 690 V
• impulse voltage Uimp - 8 kV
• short-circuit current max. Icc - 35kA

Technical data

Depth [mm]

200
Width [mm]

300
PKWIU

27.12.40.0

Level of security

IP65
Height [mm]

400

Other technical data

Mounting method

Surface mounted
Cover model

With notch
Transparent cover/door

No
Nominal current (In)

630 A
Width

300 mm
Built-in depth

200 mm
Material plate thickness cabinet

2 mm
Colour

Grey
Number of openings for flange plates

2
Number of conduit inlets

2
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP65
Impact strength

IK10

Type of covering

Door
Type of door

Single
With lock

Yes
Height

400 mm
Depth

200 mm
Inner depth

200 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Extension possible

No
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	22 pcs.
Weight (kg)	7,600	7,610	192,420
Width (m)	0,445	0,445	0,800
Length (m)	0,222	0,222	1,045
Depth (m)	0,332	0,332	1,200
