ORION enclosure plus automation/distribution solid door FL104A

local index:
RMP002HAGE
Catalog No:
FL104A
EAN code:
3250610670446
Manufacturer: HAGER
Depth [mm]: 160
Level of security: IP65
Width [mm]: 300
Price:
126,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

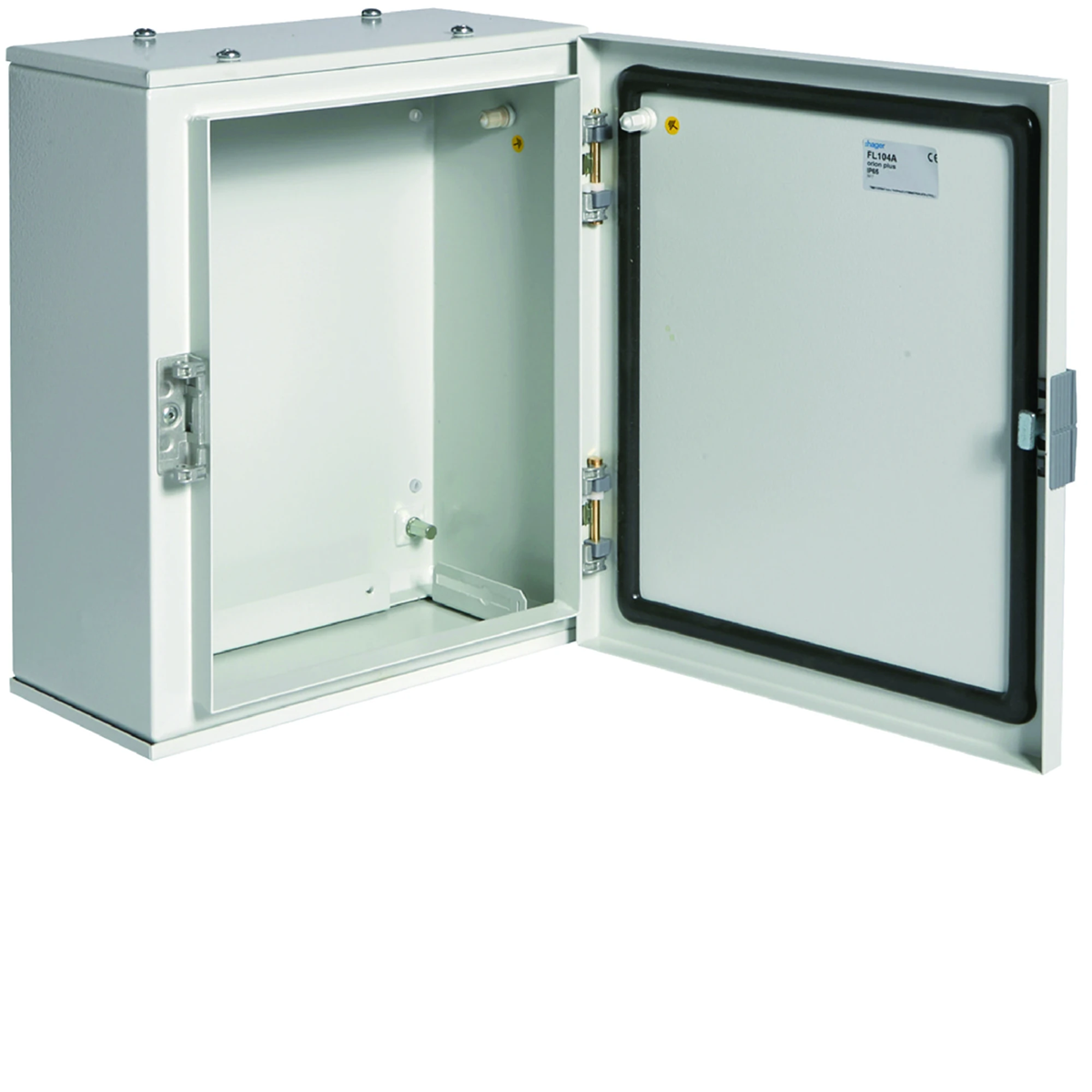

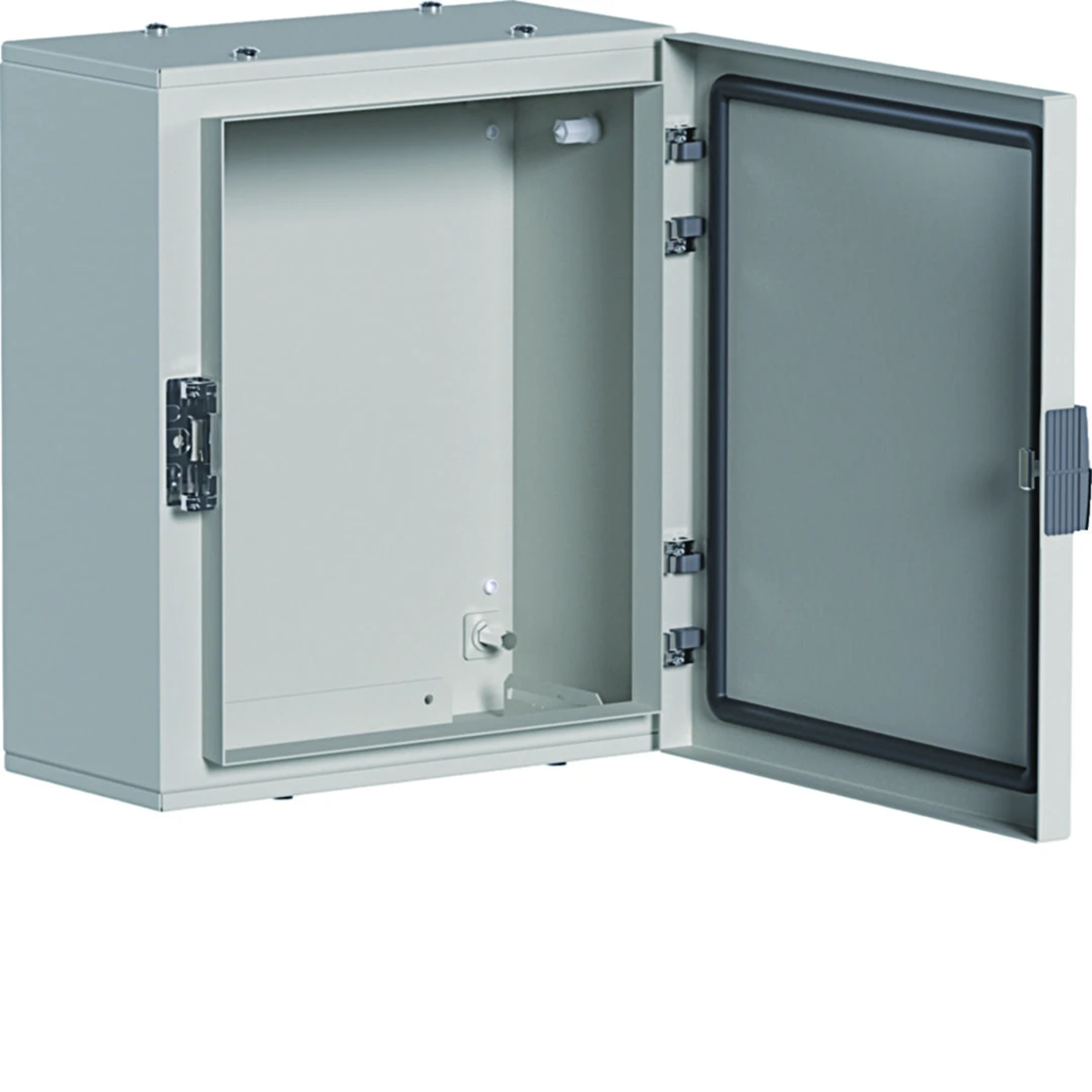

Orion Plus chassis auto/distribution full door 350x300x160
• surface-mounted enclosures IP65/IK10
• for indoor applications
• insulation class I
• color RAL 7035 (grey)
• standards: EN 60439-1, EN 62208, EN 50298
• metal door with one or two locks with a triangular insert
• the ability to easily change the door from left to right
• perfectly fixed and fitted door
• standard housings adapted for direct mounting of mounting plates
• facilitated preparation of cable entries through dismountable lower and upper casing plates
Internal development system:
• housing for devices for rated current max. 630A
• rated voltage Un - 400 V, 50/60 Hz
• rated insulation voltage Ui - 690 V
• impulse voltage Uimp - 8 kV
• short-circuit current max. Icc - 35kA

Technical data

  • Depth [mm]
    160
  • Width [mm]
    300
  • PKWIU
    27.12.40.0
  • Level of security
    IP65
  • Height [mm]
    350

Other technical data

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    630 A
  • Width
    300 mm
  • Built-in depth
    160 mm
  • Material plate thickness cabinet
    2 mm
  • RAL-number
    7035
  • Number of rows
    2
  • Number of openings for flange plates
    2
  • Number of conduit inlets
    2
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP65
  • Impact strength
    IK10
  • Type of covering
    Cover
  • Type of door
    Single
  • With lock
    Yes
  • Height
    350 mm
  • Depth
    160 mm
  • Inner depth
    160 mm
  • Colour
    Grey
  • Number of modules
    20
  • Width in number of modular spacings
    10
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    I
  • Circuit integrity
    None

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 36 pcs.
Weight (kg) 6,160 6,680 263,480
Width (m) 0,300 0,180 0,800
Length (m) 0,350 0,395 1,125
Depth (m) 0,160 0,325 1,200
