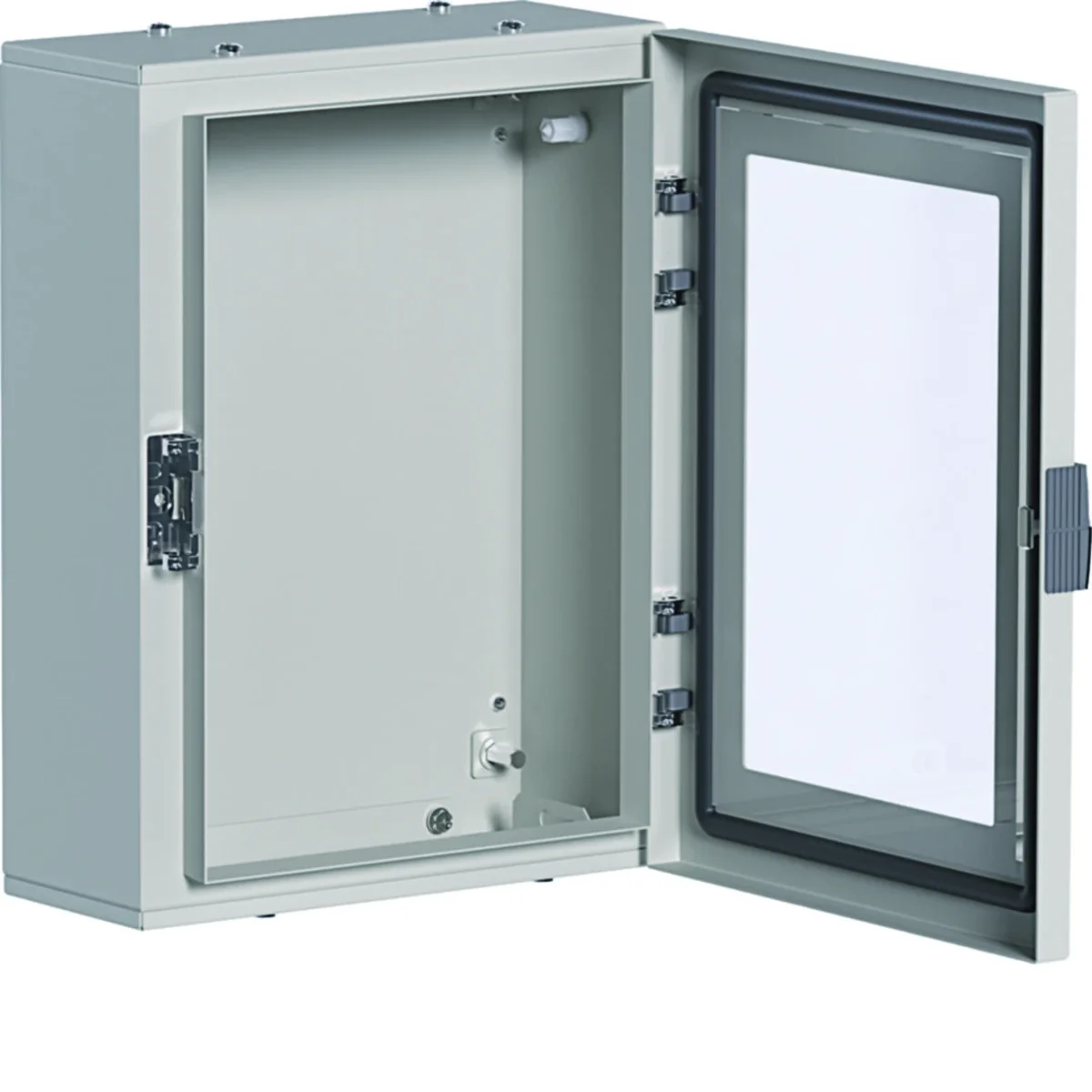

ORION+ 400x300x160mm Steel casing for transparent doors FL156A

local index:
RMH089HAGE
Catalog No:
FL156A
EAN code:
3250610674178
Manufacturer: HAGER
Length [mm]: 400
Depth [mm]: 160
Protection class: AND
Price:
160,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Steel sheet enclosure for accessories, transparent door, orion+ series.

  • surface mounting IP65/IK10,
  • for indoor use,
  • insulation class I,
  • grey,
  • standards: EN 60439-1, EN 62208, EN 50298,< /li>
  • the door can be easily changed from left to right,
  • perfectly fixed and matched doors,
  • standard enclosures are adapted for direct mounting of mounting plates,
  • facilitated preparation of cable entries by removable lower and upper housing plates.

Internal installation system:

  • housing for cameras on rated current max. 630 A,
  • rated voltage Un - 400 V, 50/60 Hz,
  • rated insulation voltage Ui - 690 V,
  • impulse voltage Uimp - 8 kV ,
  • short-circuit current max. Icc - 35 kA.

Series characteristics:

orion+ enclosures are designed to work in harsh conditions. Internal equipment can be implemented flexibly by mounting mounting plates or DIN rails (in two versions), thus offering the appropriate equipment system - the classic function of electricity distribution and applications for control and automation of industrial processes.

Technical data

  • Length [mm]
    400
  • Protection class
    AND
  • Level of security
    IP65
  • Height [mm]
    400
  • Lock type
    Triangular 7mm
  • Depth [mm]
    160
  • Family
    ORION+
  • Width [mm]
    300
  • Surface finish
    Powder coated
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Surface mounted
  • Cover model
    With notch
  • Transparent cover/door
    Yes
  • Nominal current (In)
    630 A
  • Width
    300 mm
  • Built-in depth
    160 mm
  • Material plate thickness cabinet
    2 mm
  • Colour
    Grey
  • Number of openings for flange plates
    2
  • Number of conduit inlets
    2
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP65
  • Impact strength
    IK10
  • Type of covering
    Door
  • Type of door
    Single
  • With lock
    Yes
  • Height
    400 mm
  • Depth
    160 mm
  • Inner depth
    160 mm
  • Material plate thickness door/cover
    1.5 mm
  • RAL-number
    7035
  • Extension possible
    No
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    I
  • Circuit integrity
    None

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 30 pcs.
Weight (kg) 6,799 6,940 230,200
Width (m) 0,300 0,325 0,820
Length (m) 0,400 0,180 1,110
Depth (m) 0,160 0,450 1,200
