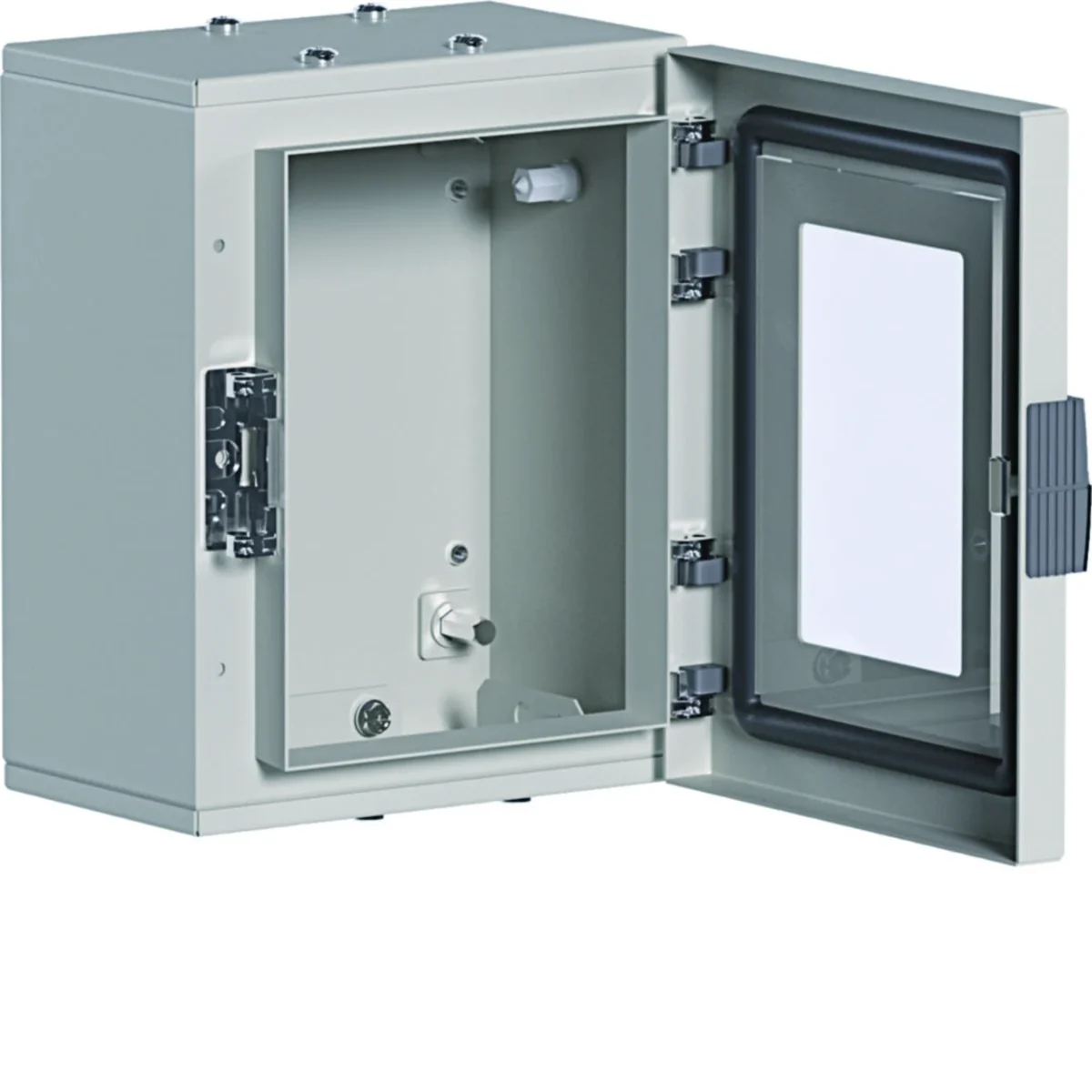

ORION+ 250x200x160mm Steel casing for transparent doors FL151A

Steel sheet enclosure for accessories, transparent door, orion+ series.

• surface mounting IP65/IK10,
• for indoor use,
• insulation class I,
• grey,
• standards: EN 60439-1, EN 62208, EN 50298,< /li>
• the door can be easily changed from left to right,
• perfectly fixed and matched doors,
• standard enclosures are adapted for direct mounting of mounting plates,
• facilitated preparation of cable entries by removable lower and upper housing plates.

Internal installation system:

• housing for cameras on rated current max. 630 A,
• rated voltage Un - 400 V, 50/60 Hz,
• rated insulation voltage Ui - 690 V,
• impulse voltage Uimp - 8 kV ,
• short-circuit current max. Icc - 35 kA.

Series characteristics:

orion+ enclosures are designed to work in harsh conditions. Internal equipment can be implemented flexibly by mounting mounting plates or DIN rails (in two versions), thus offering the appropriate equipment system - the classic function of electricity distribution and applications for control and automation of industrial processes.
