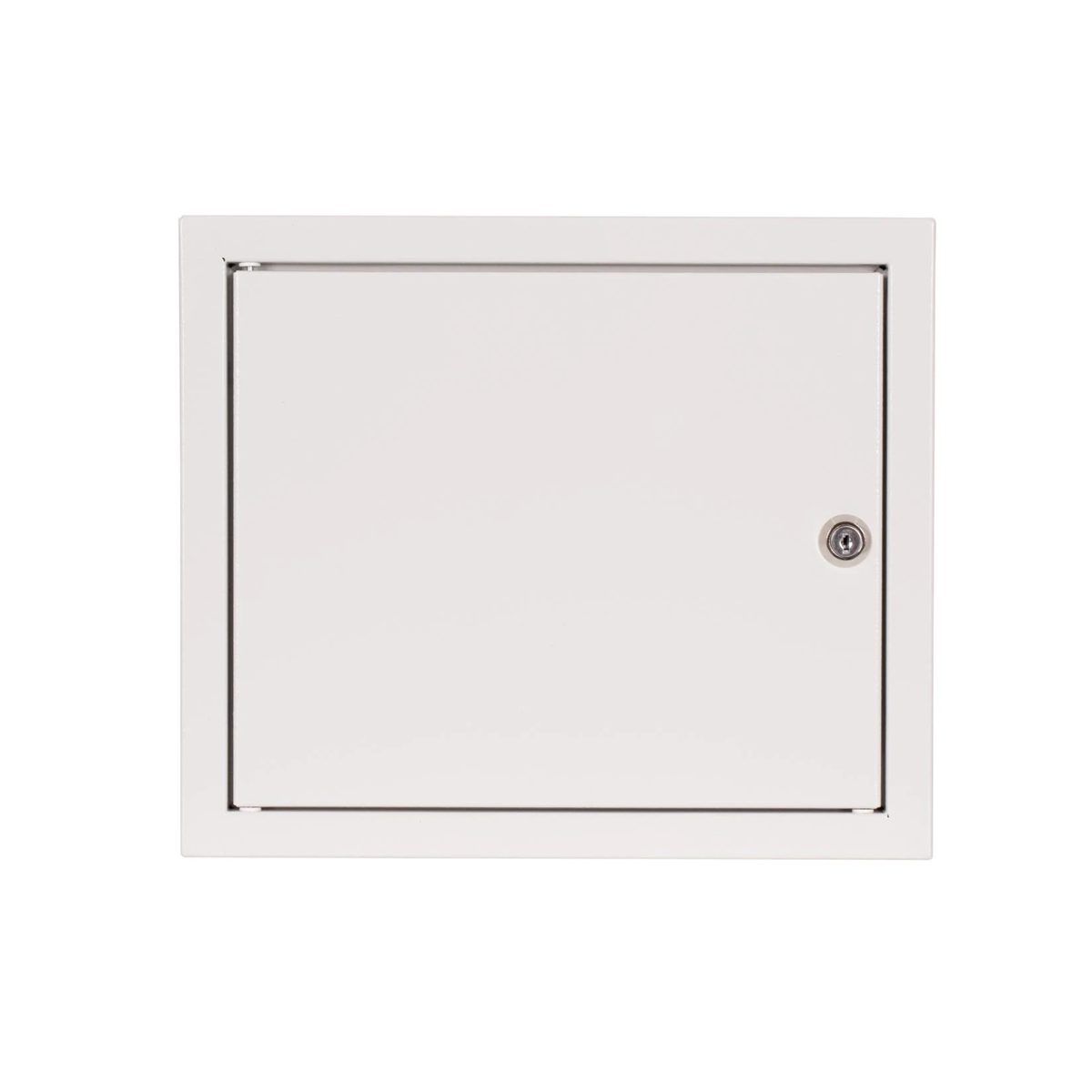

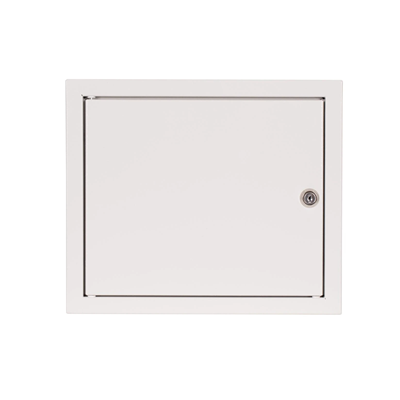

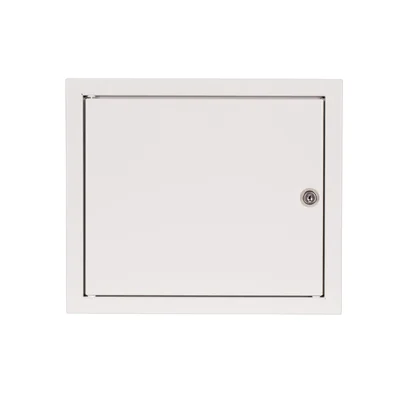

NRP 12 Z modular, metal, surface-mounted switchgear NRP 12 Z

local index:
RMR093SABA
Catalog No:
NRP 12 Z
EAN code:
5907813122149
Manufacturer: SABAJ SYSTEM
Depth [mm]: 130
Number of modules: 12
Width [mm]: 310
Price:
46,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 25 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application:

Indoor LV switchgears, depending on the type of installed apparatus, may, together with the distribution of electricity, perform the following functions:
- control of electrical devices
- control and supervision of the production process

Installation method: wall mounting
Operating conditions: air humidity ÷50%
Ambient temperature: max 40°C min -5°C
Enclosure of the LV switchgear:

Steel sheet with a thickness 1 mm, with a protective varnish coating in RAL 9002 color, applied by electrostatic method : Un=380 V
rated insulation voltage: Ui=500V
protection class: I
protection degree: IP 31

The standard set includes:

Steel sheet enclosure
protection mask
door closed with a latch or lock, solid or with glass
TH 35/7.5 rail
terminal rails
a set of screws + nuts
protective conductor
round and rectangular plastic end caps
a set of stickers with assembly instructions

Technical data

  • Depth [mm]
    130
  • Width [mm]
    310
  • Height [mm]
    265
  • Number of modules
    12
  • Version
    With a lock
  • PKWIU
    27.12.31.0
