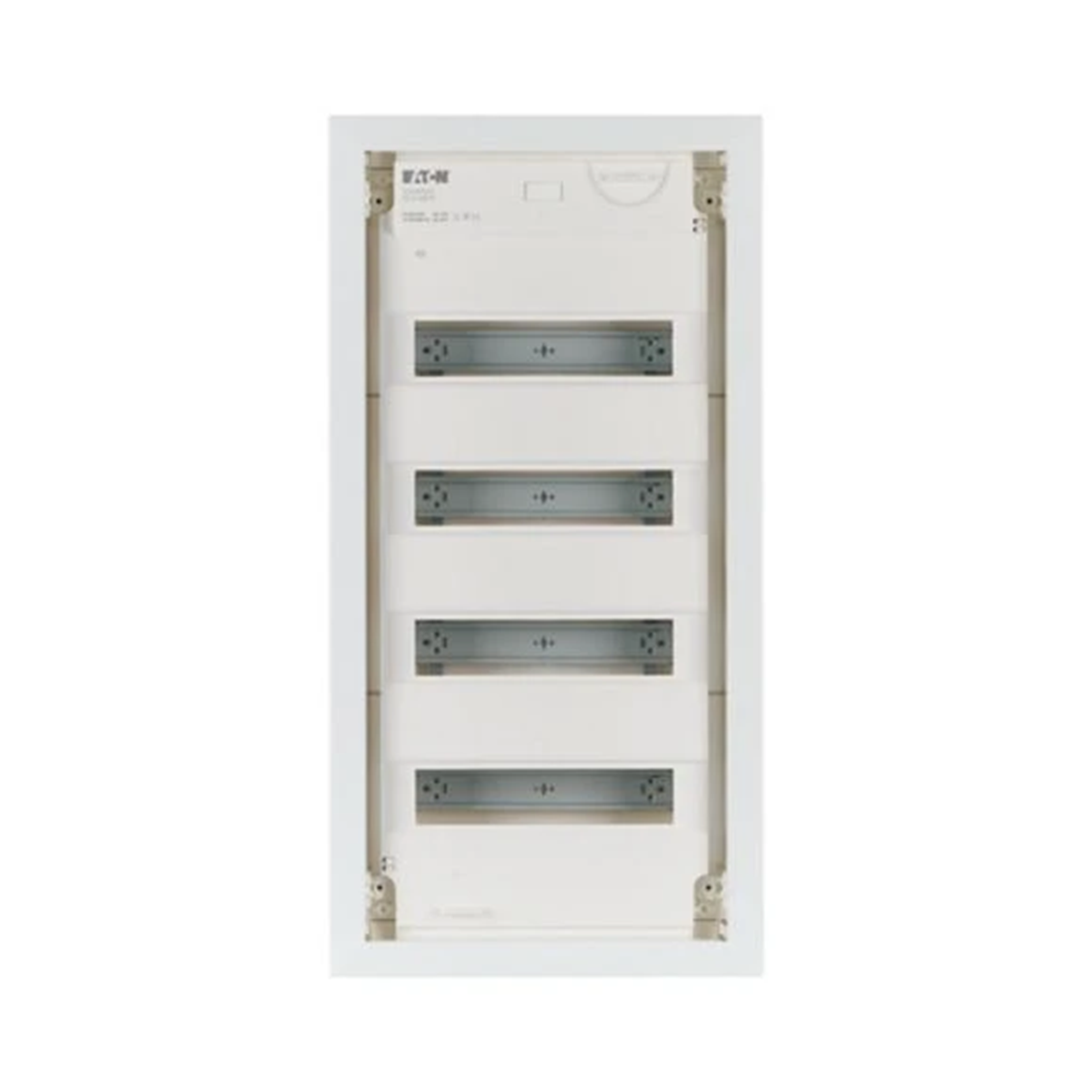

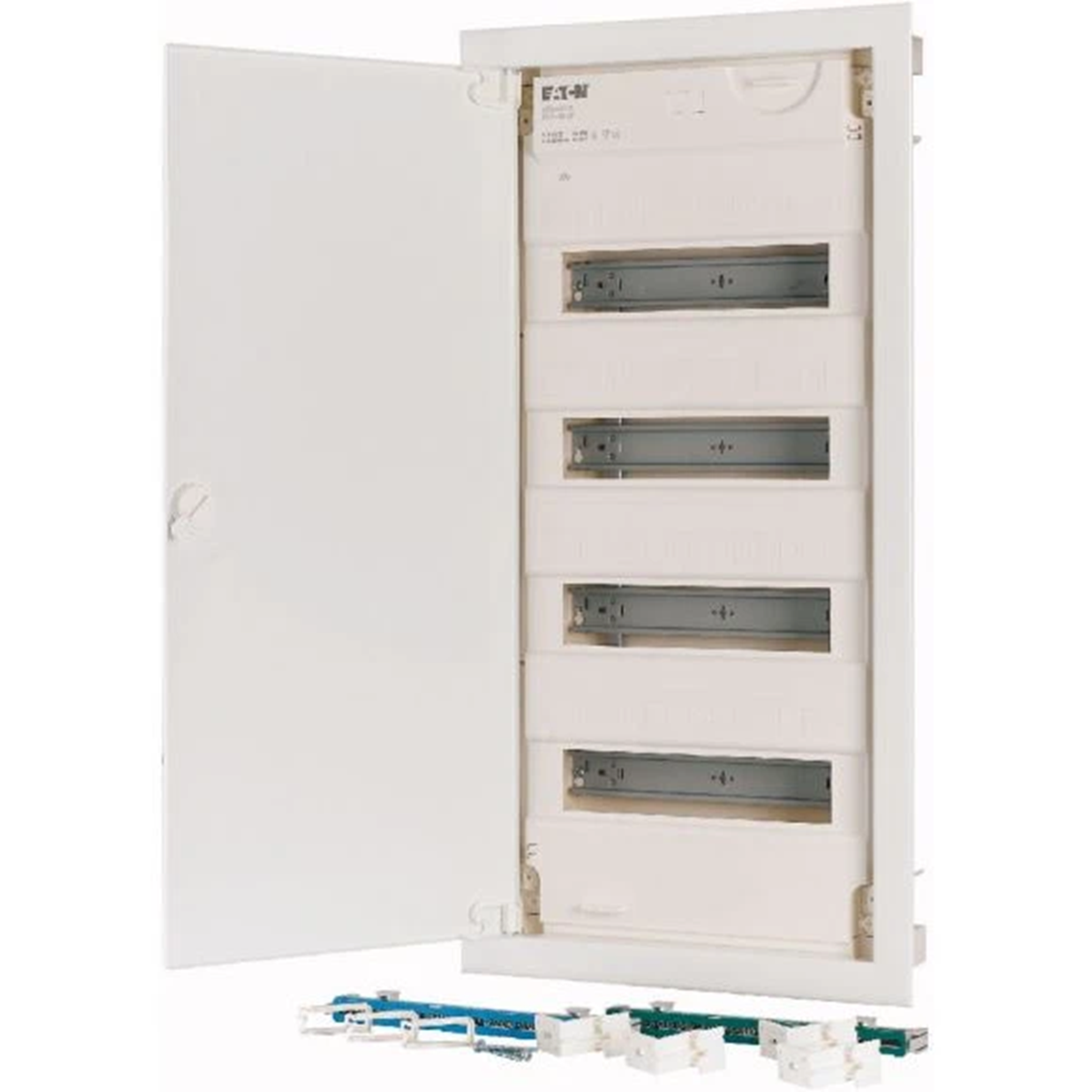

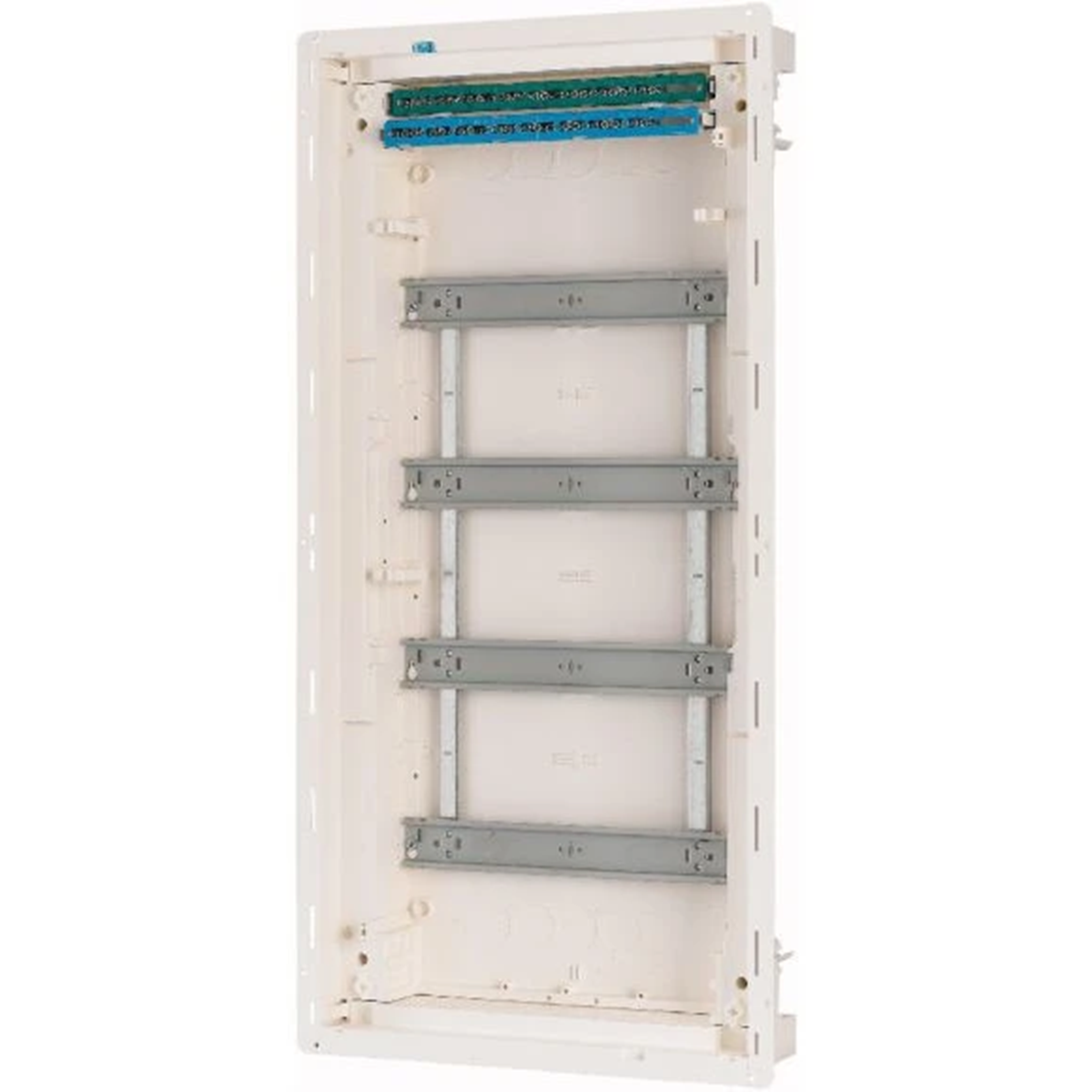

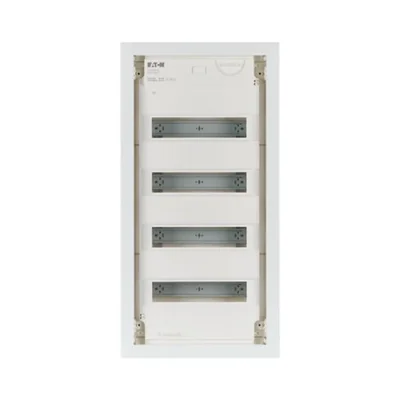

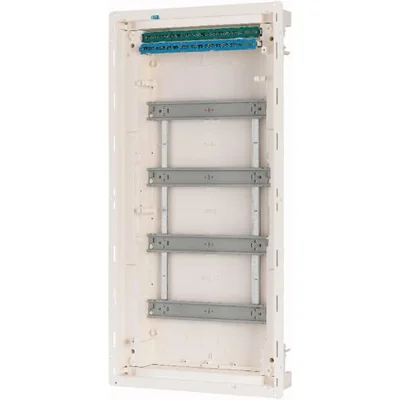

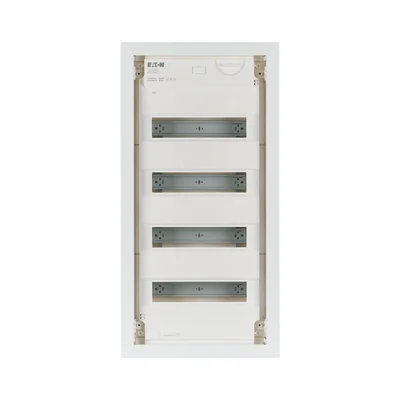

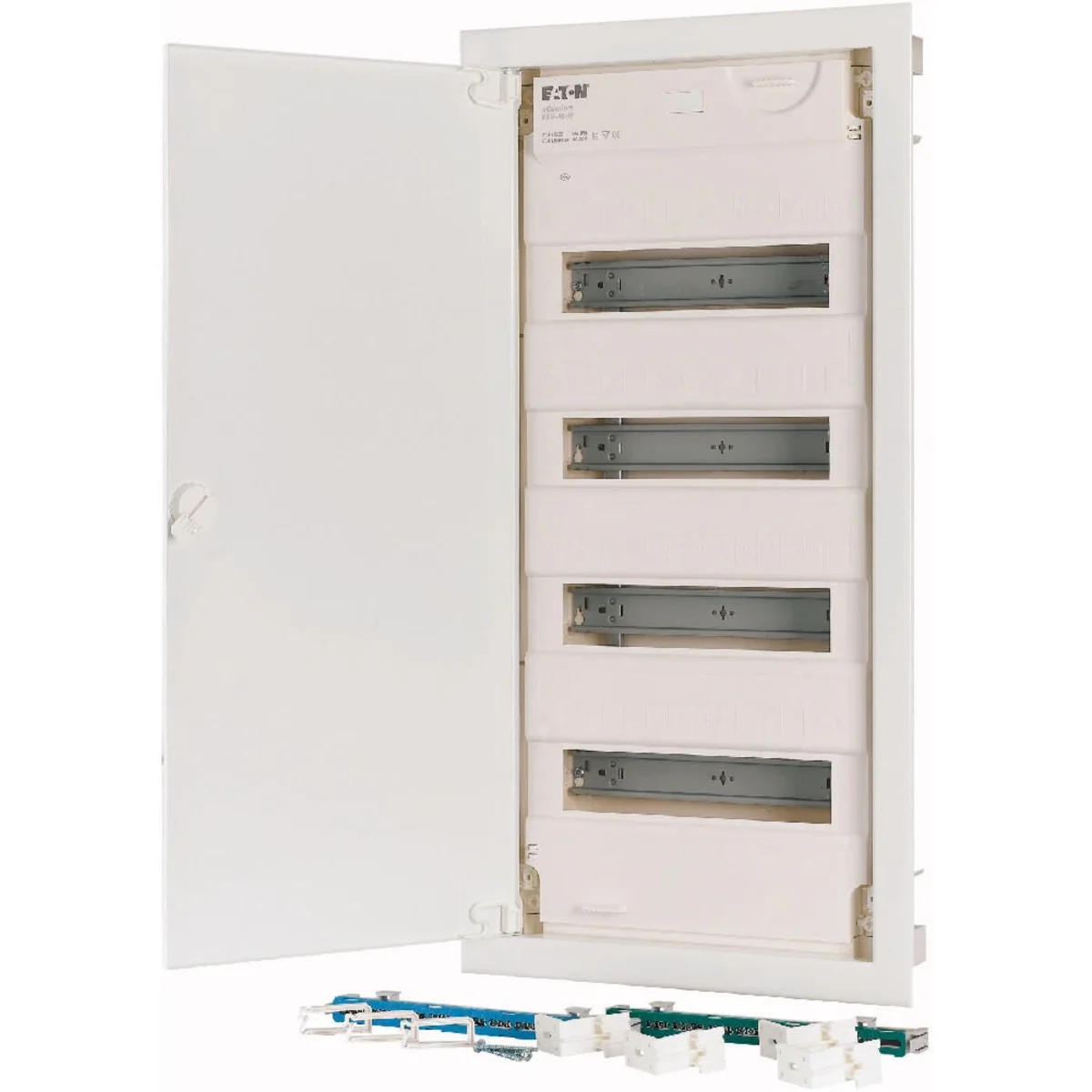

Modular switchgear KLV-48UPS-SF p/t IP30 4x12M super flat 178821

Electrical switchgear KLV-48UPS-SF flush-mounted metal with solid door is an element of the electrical network, it contains devices and components for: connecting, interrupting, controlling, protecting, measuring and regulating electric circuits, motors and mechanisms. Switchgears of the KLV series have a stable construction of a flush-mounted cassette with an integrated spirit level and can be installed in masonry as well as plaster walls. The set with the switchgear includes N/PE terminal strips. The entire KLV series complies with the IEC/EN 60670-24 and IEC/EN 62208 and IEC/EN 61439-3 standards.

Parameters:

• number of rows: 4< /li>
• Glow wire test (GWT): 650 ºC
• Installation depth: 88 mm
• Protrusion depth: 75 mm

Features:

• N/PE terminal strips
• self-extinguishing plastic, resistant to overheating up to 650°C, hot wire test acc. IEC/EN 62208
• super-flat
• stable construction of flush-mounted cassette with integrated spirit level
• galvanized DIN rail, stable construction with crossbars 125 mm row spacing
• easy to change the position of the door
• holes for quick mounting on the wall
• compensation of plaster unevenness
• weaknesses for cable entry from each side
< li>low halogen
