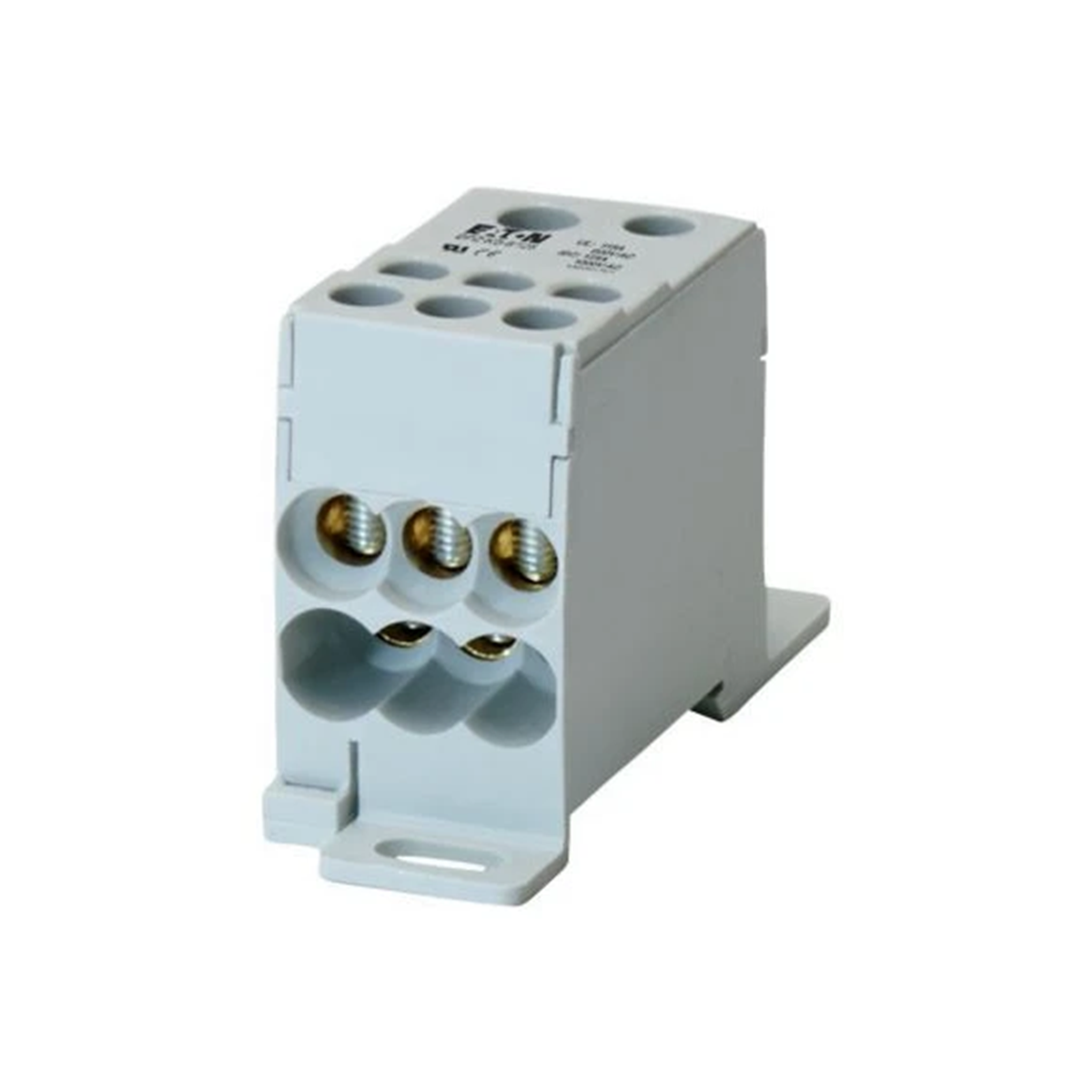

Modular block of distribution strips, BPZ-KB-6/125 102714

local index:
RRR043MOEL
Catalog No:
102714
EAN code:
4015081025749
Manufacturer: EATON
Rated current [A]: 125
exits: 6
Price:
29,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Modular distribution block, 1-pole BPZ-KB
• Mounting on TS35 mm rail

Technical data

  • Rated current [A]
    125
  • PKWIU
    25.11.23.0
  • exits
    6

Other technical data

  • Height
    73.8 mm
  • Depth
    46.3 mm
  • Number of poles
    1
  • Conductor cross section solid (solid, stranded)
    2.5 ... 35 mm²
  • With PE-rail
    No
  • Width
    27 mm
  • Max. rated current
    125 A
  • Conductor cross section flexible (fine-strand) with cable end sleeve
    2.5 ... 35 mm²
  • Number of clamp positions per pole
    7
  • With N-rail
    No

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 50 pcs.
Weight (kg) 0,142 7,100
Volume (m3) 0,000 0,001
Width (m) 0,055 0,240
Length (m) 0,080 0,275
Depth (m) 0,030 0,014
