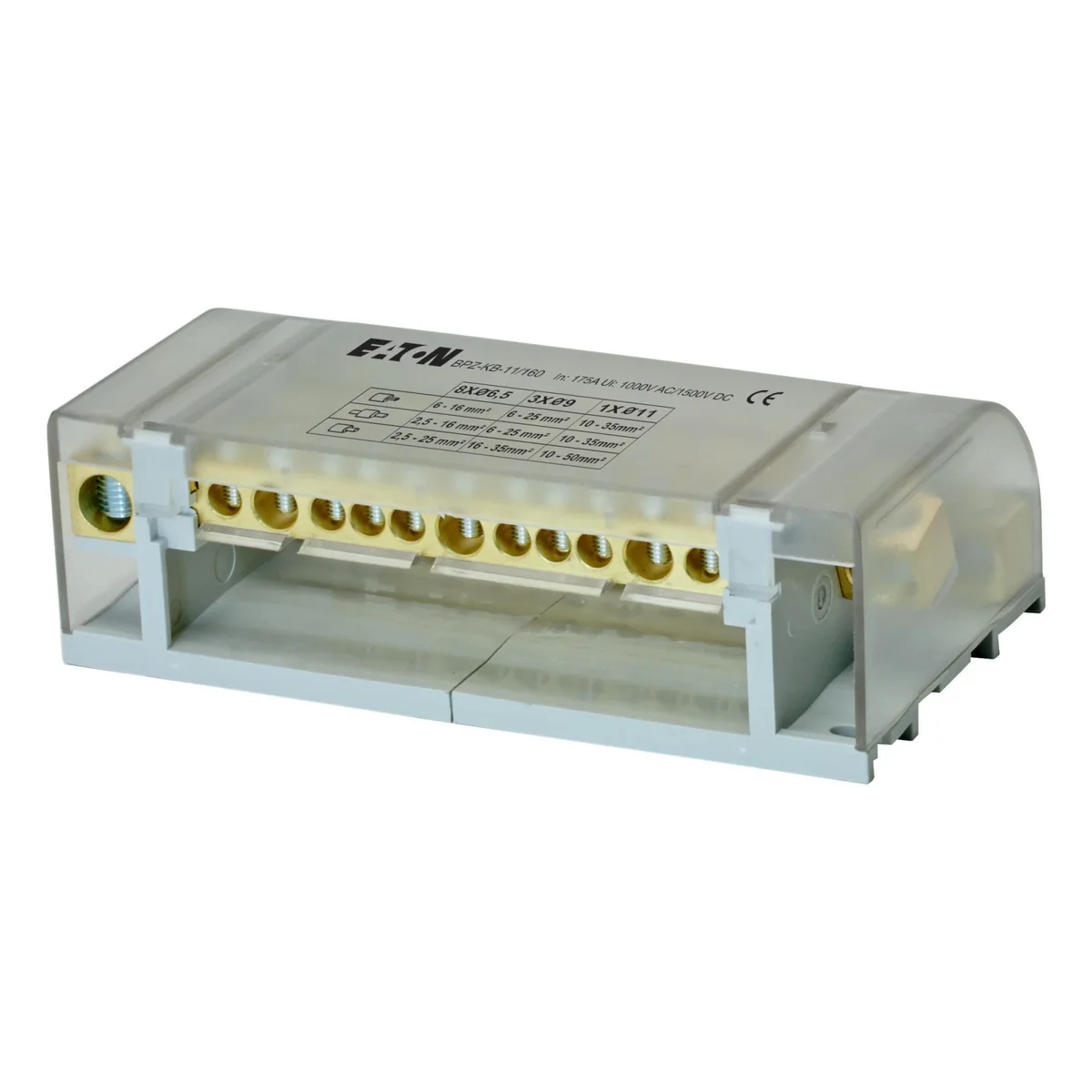

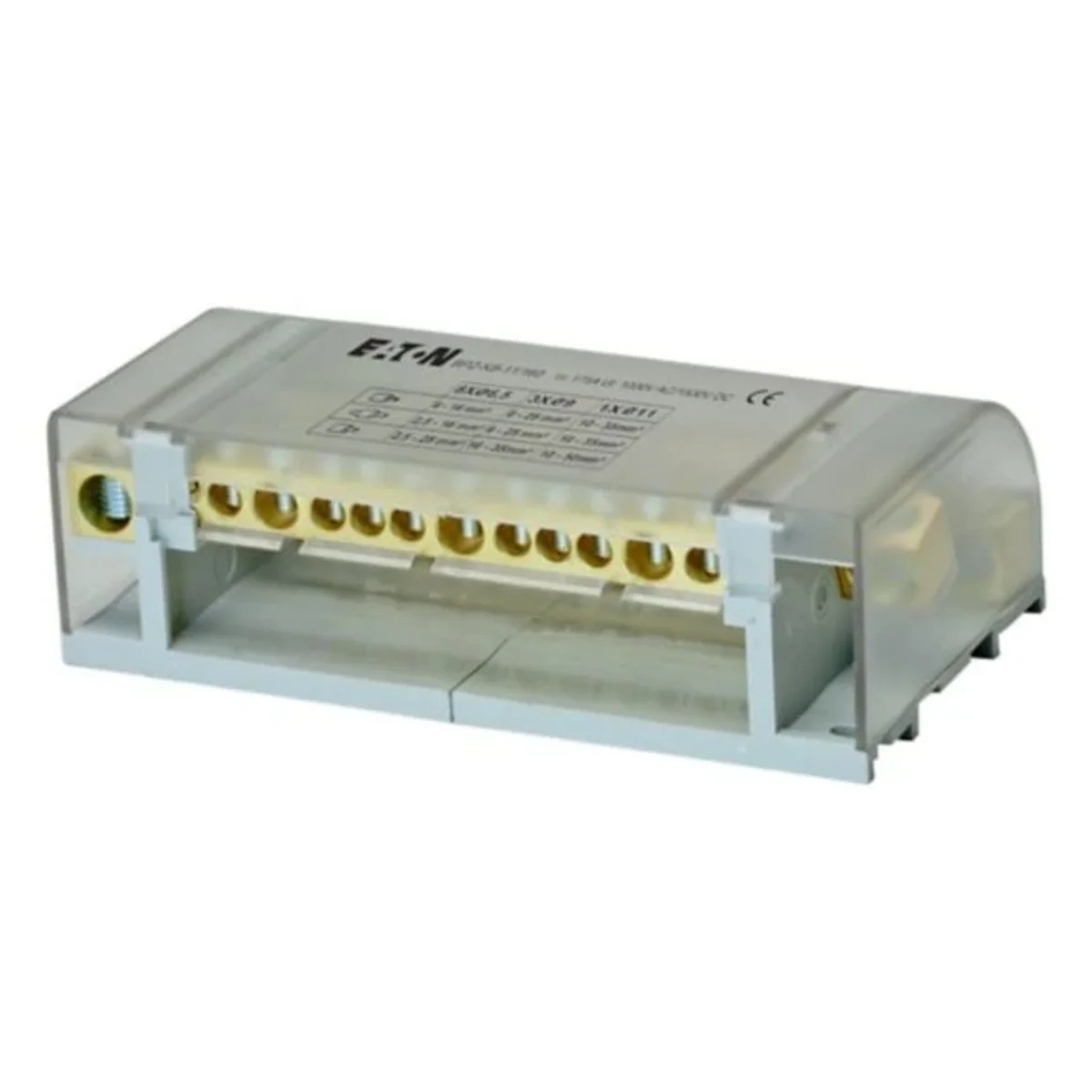

Modular block of distribution strips, BPZ-KB-11/160 102716

local index:
RRR082MOEL
Catalog No:
102716
EAN code:
4015081025763
Manufacturer: EATON
Rated current [A]: 160
inputs: 1x(L1/L2/L3/N)
exits: 11x(L1/L2/L3/N)
Price:
136,38 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Modular distribution block, 4-pole

Technical data

  • Rated current [A]
    160
  • exits
    11x(L1/L2/L3/N)
  • inputs
    1x(L1/L2/L3/N)

Other technical data

  • Height
    86 mm
  • Depth
    50.2 mm
  • Number of poles
    4
  • Conductor cross section solid (solid, stranded)
    2.5 ... 50 mm²
  • With PE-rail
    No
  • Width
    160.4 mm
  • Max. rated current
    160 A
  • Conductor cross section flexible (fine-strand) with cable end sleeve
    2.5 ... 50 mm²
  • Number of clamp positions per pole
    12
  • With N-rail
    No

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 50 pcs.
Weight (kg) 0,718 -
Volume (m3) 0,001 -
Width (m) 0,160 -
Length (m) 0,050 -
Depth (m) 0,086 -
