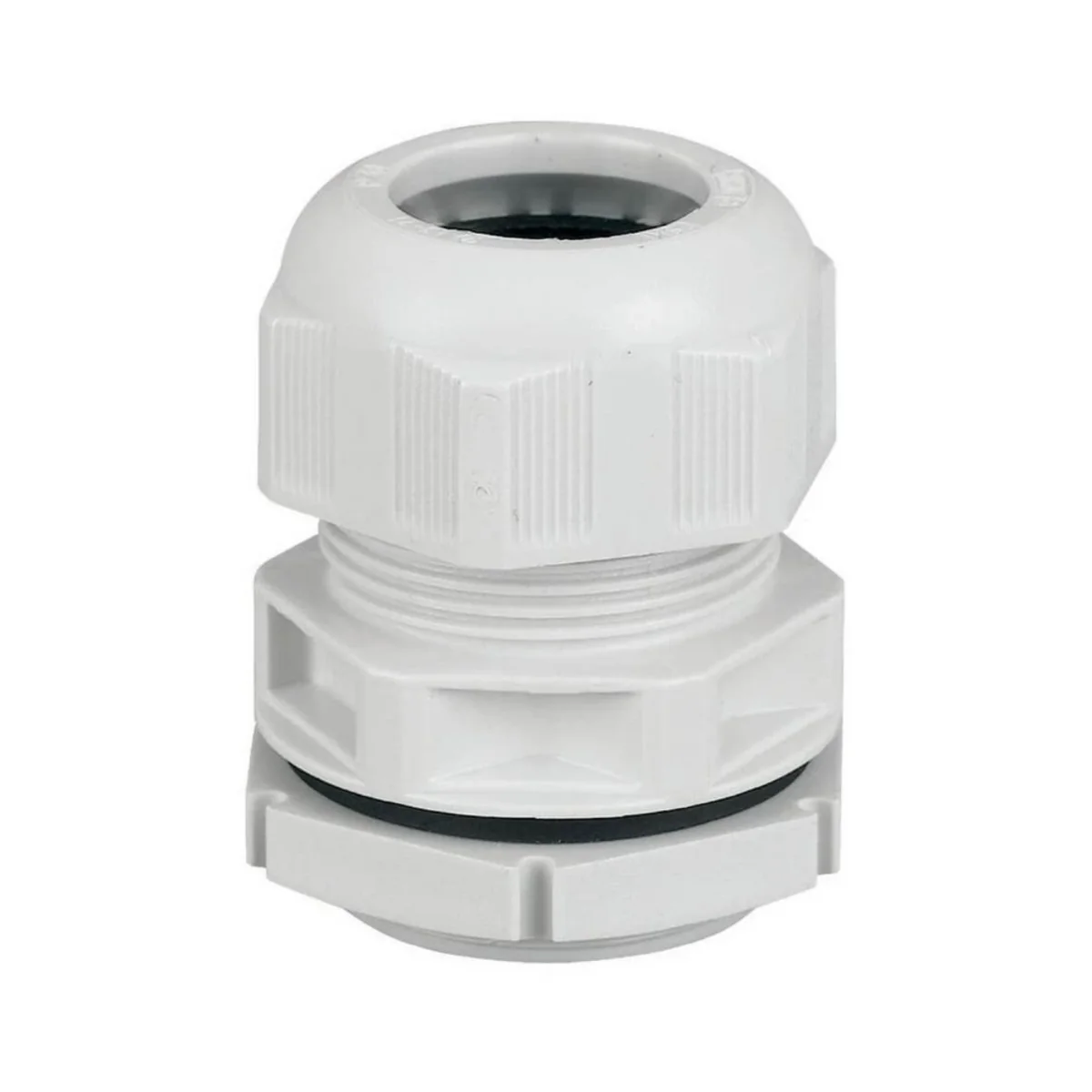

Metric cable gland, V-M50 206913
local index:
RRR373MOEL
Catalog No:
206913
EAN code:
4015082069131
Manufacturer:
EATON
Hole diameter [mm]: 50.5
Cable outer diameter [mm]: 21-35
Insertion of the cable: M50
Price:
37,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
5
)
Add to clipboard
Print
Ask about the product
Product description
Cable gland, metric according to EN 50262
• IP68, made of polyamide, halogen-free
• Flammability class V2, according to UL94
• Gray color RAL 7035
• IP68, made of polyamide, halogen-free
• Flammability class V2, according to UL94
• Gray color RAL 7035
Technical data
-
Hole diameter [mm]50.5
-
Insertion of the cableM50
-
Cable outer diameter [mm]21-35
Other technical data
-
Thread typeMetric
-
Nominal thread size inch/gas pipe threadOther
-
Thread length14 mm
-
Hexagon angular dimension0 mm
-
MaterialPlastic
-
Surface protectionUntreated
-
Glass-fibre reinforcedNo
-
Shock resistantYes
-
Bend radius protection/trumpet flareNo
-
Snapping in openingNo
-
Multi seal areaNo
-
With strain reliefYes
-
Separable screw glandNo
-
Explosion-tested versionNo
-
For Ex-Zone dustNone
-
EMC-versionNo
-
Nominal thread size metric/PG50
-
Pitch thread1.5 mm
-
Wrench width55 mm
-
Suitable for cable diameter21 ... 35 mm
-
Material qualityPolyamide (PA)
-
Halogen freeYes
-
Degree of protection (IP)IP68
-
RAL-number7035
-
With locknutYes
-
ModelStraight
-
Flat cable couplingNo
-
Type of sealingCut-out ring
-
Operating temperature-20 ... 120 °C
-
For Ex-zone gasNone
-
For armoured cableNo
-
ScreenedNo
Bulk packaging
| A kind of package | Skrzynia | Karton |
| Quantity | 1 pcs. | 5 pcs. |
| Weight (kg) | 0,119 | 0,595 |
| Volume (m3) | 0,000 | 0,002 |
| Width (m) | 0,052 | 0,110 |
| Length (m) | 0,082 | 0,150 |
| Depth (m) | 0,052 | 0,126 |
