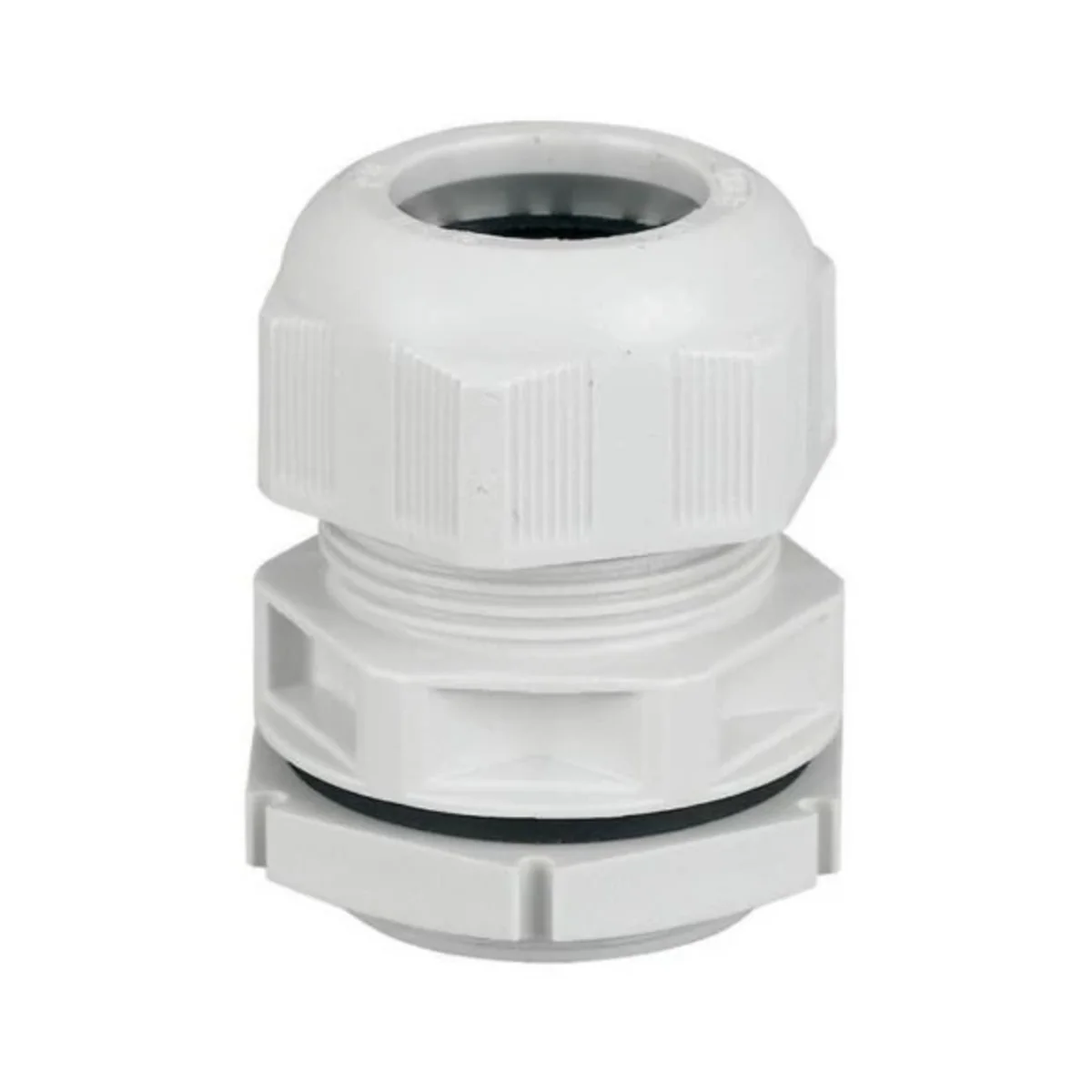

Metric cable gland, V-M32 206912

local index:
RRR378MOEL
Catalog No:
206912
EAN code:
4015082069124
Manufacturer: EATON
Hole diameter [mm]: 32.5
Cable outer diameter [mm]: 13-21
Insertion of the cable: M32
Price:
8,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
10
)
Add to clipboard
Print

Product description

Cable gland, metric according to EN 50262
• IP68, made of polyamide, halogen-free
• Flammability class V2, according to UL94
• Gray color RAL 7035

Technical data

  • Hole diameter [mm]
    32.5
  • Insertion of the cable
    M32
  • Cable outer diameter [mm]
    13-21

Other technical data

  • Thread type
    Metric
  • Nominal thread size inch/gas pipe thread
    Other
  • Thread length
    12 mm
  • Hexagon angular dimension
    0 mm
  • Material
    Plastic
  • Surface protection
    Untreated
  • Glass-fibre reinforced
    No
  • Shock resistant
    Yes
  • Bend radius protection/trumpet flare
    No
  • Snapping in opening
    No
  • Multi seal area
    No
  • With strain relief
    Yes
  • Separable screw gland
    No
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None
  • EMC-version
    No
  • Nominal thread size metric/PG
    32
  • Pitch thread
    1.5 mm
  • Wrench width
    50 mm
  • Suitable for cable diameter
    13 ... 21 mm
  • Material quality
    Polyamide (PA)
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP68
  • RAL-number
    7035
  • With locknut
    Yes
  • Model
    Straight
  • Flat cable coupling
    No
  • Type of sealing
    Cut-out ring
  • Operating temperature
    -20 ... 120 °C
  • For Ex-zone gas
    None
  • For armoured cable
    No
  • Screened
    No

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 10 pcs.
Weight (kg) 0,039 0,387
Volume (m3) 0,000 0,001
Width (m) 0,032 0,082
Length (m) 0,072 0,140
Depth (m) 0,032 0,117
