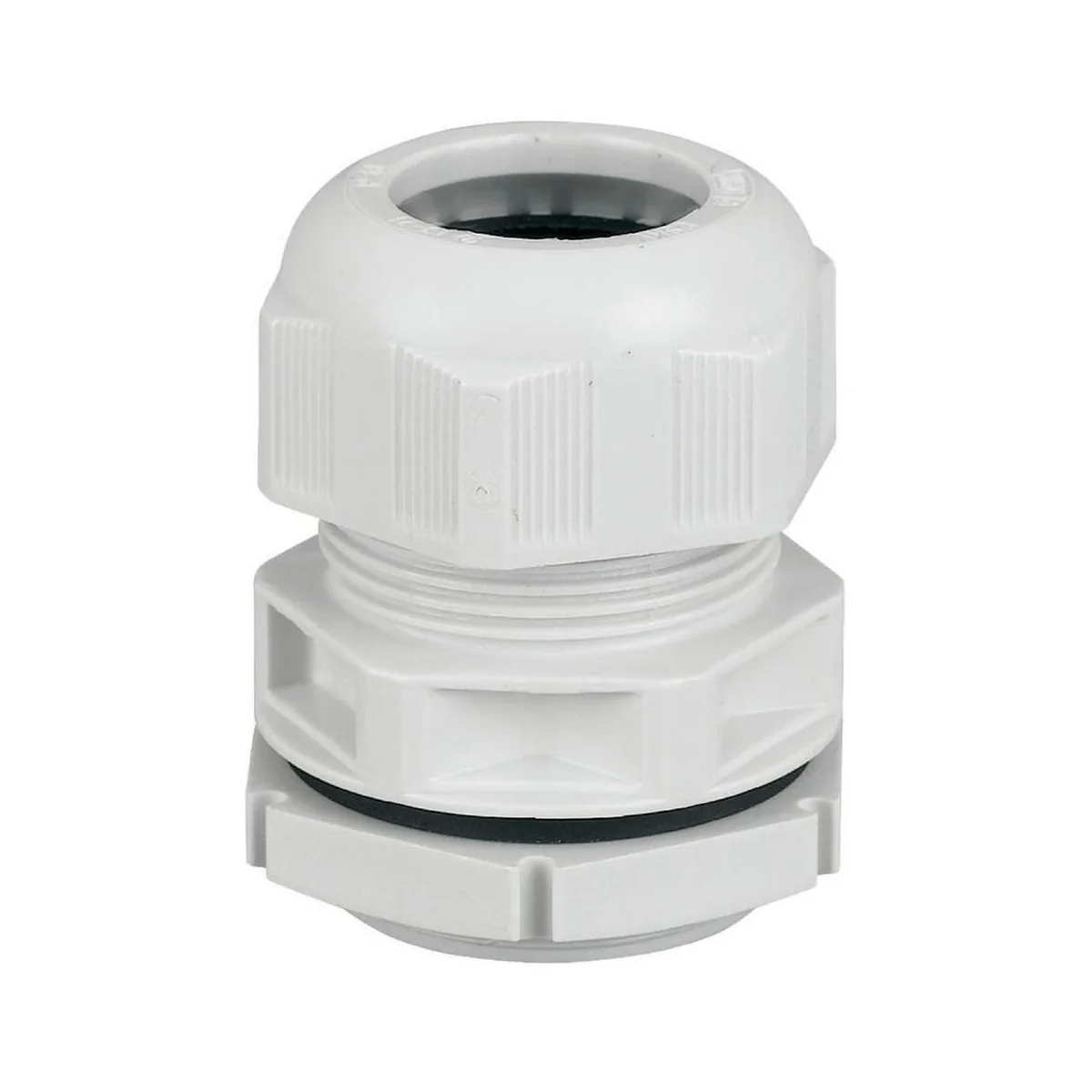

Metric cable gland, V-M25 20 pcs. 206911
local index:
RRR379MOEL
Catalog No:
206911
EAN code:
4015082069117
Manufacturer:
EATON
Pieces in the package: 20
Hole diameter [mm]: 25.5
Cable outer diameter [mm]: 2014-09-17 00:00:00
Price:
83,47 €
gross / pkg.
(including VAT 23%)
4,17 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Cable gland, metric according to EN 50262
• IP68, made of polyamide, halogen-free
• Flammability class V2, according to UL94
• Gray color RAL 7035
Technical data
-
Pieces in the package20
-
Cable outer diameter [mm]2014-09-17 00:00:00
-
Hole diameter [mm]25.5
-
Insertion of the cableM25
Other technical data
-
Thread typeMetric
-
Nominal thread size inch/gas pipe threadOther
-
Thread length10 mm
-
Hexagon angular dimension0 mm
-
MaterialPlastic
-
Surface protectionUntreated
-
Glass-fibre reinforcedNo
-
Shock resistantYes
-
Bend radius protection/trumpet flareNo
-
Snapping in openingNo
-
Multi seal areaNo
-
With strain reliefYes
-
Separable screw glandNo
-
Explosion-tested versionNo
-
For Ex-Zone dustNone
-
EMC-versionNo
-
Nominal thread size metric/PG25
-
Pitch thread1.5 mm
-
Wrench width36 mm
-
Suitable for cable diameter9 ... 12 mm
-
Material qualityPolyamide (PA)
-
Halogen freeYes
-
Degree of protection (IP)IP68
-
RAL-number7035
-
With locknutYes
-
ModelStraight
-
Flat cable couplingNo
-
Type of sealingCut-out ring
-
Operating temperature-20 ... 120 °C
-
For Ex-zone gasNone
-
For armoured cableNo
-
ScreenedNo
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Karton | |
| Quantity | 1 pkg. | 1 pkg. |
| Weight (kg) | 0,022 | 0,456 |
| Volume (m3) | 0,000 | 0,001 |
| Width (m) | 0,030 | 0,082 |
| Length (m) | 0,070 | 0,140 |
| Depth (m) | 0,030 | 0,116 |
