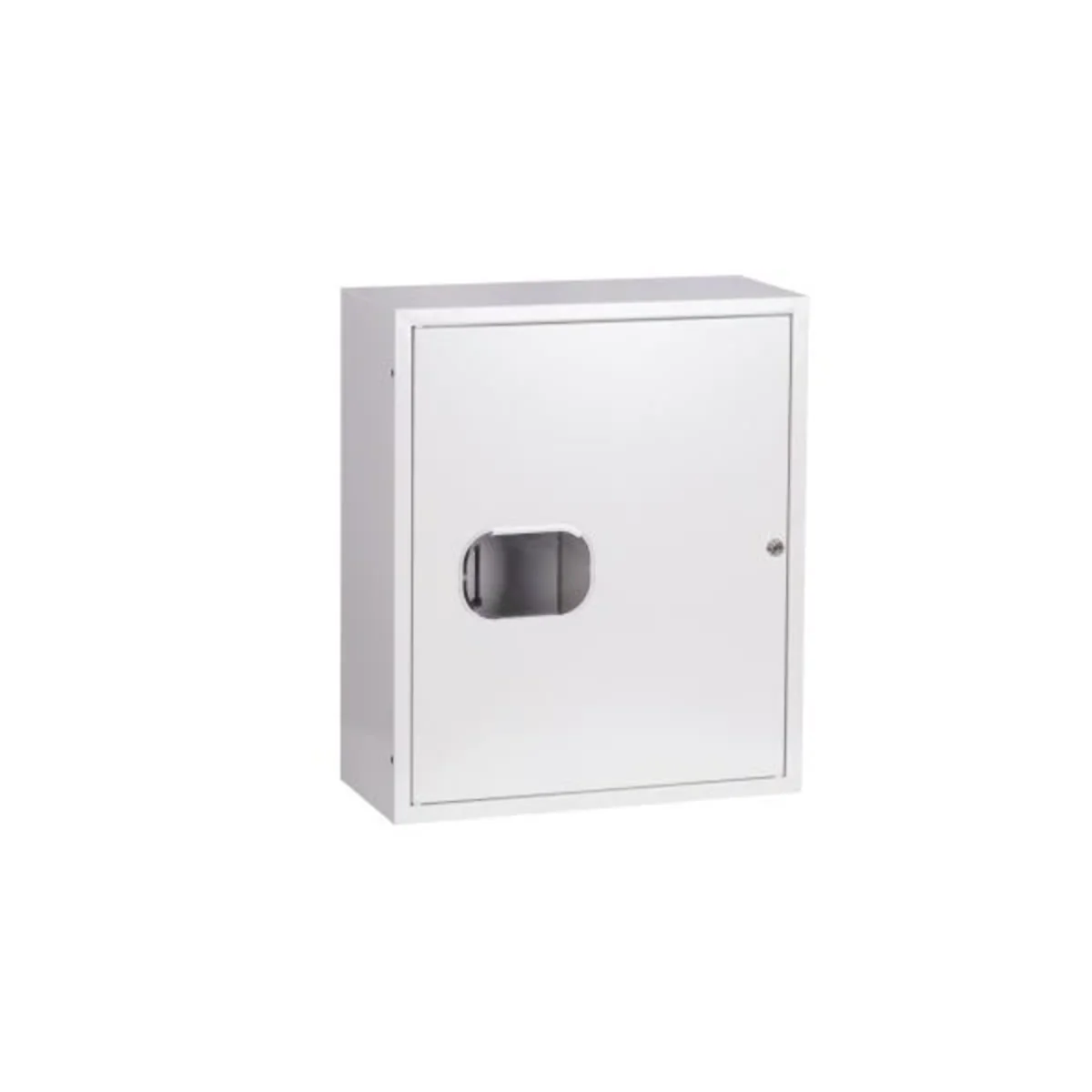

Metal surface-mounted meter switchboard NRL 24 ZSZ NRL 24 ZSZ

local index:
RMR160SABA
Catalog No:
NRL 24 ZSZ
EAN code:
5907813122941
Manufacturer: SABAJ SYSTEM
Depth [mm]: 220
Number of modules: 24
Width [mm]: 490
Price:
145,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 25 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application:

Indoor LV switchgears, depending on the type of installed apparatus, may, together with the distribution of electricity, perform the following functions: - measurement, control of electrical devices - control and supervision of the production process

Installation method: built-in in the wall
Operating conditions: air humidity ÷50%
Ambient temperature: max 40°C min -5°C
Execution of the LV switchgear housing:

Steel sheet 1 mm thick, with protective varnish coating in RAL 9002 color, applied by electrostatic method V
rated insulation voltage: Ui=500V
protection class: I
protection degree: IP 31

Technical data

  • Depth [mm]
    220
  • Width [mm]
    490
  • Height [mm]
    580
  • Number of modules
    24
  • Version
    With lock and glass
  • PKWIU
    27.12.31.0
