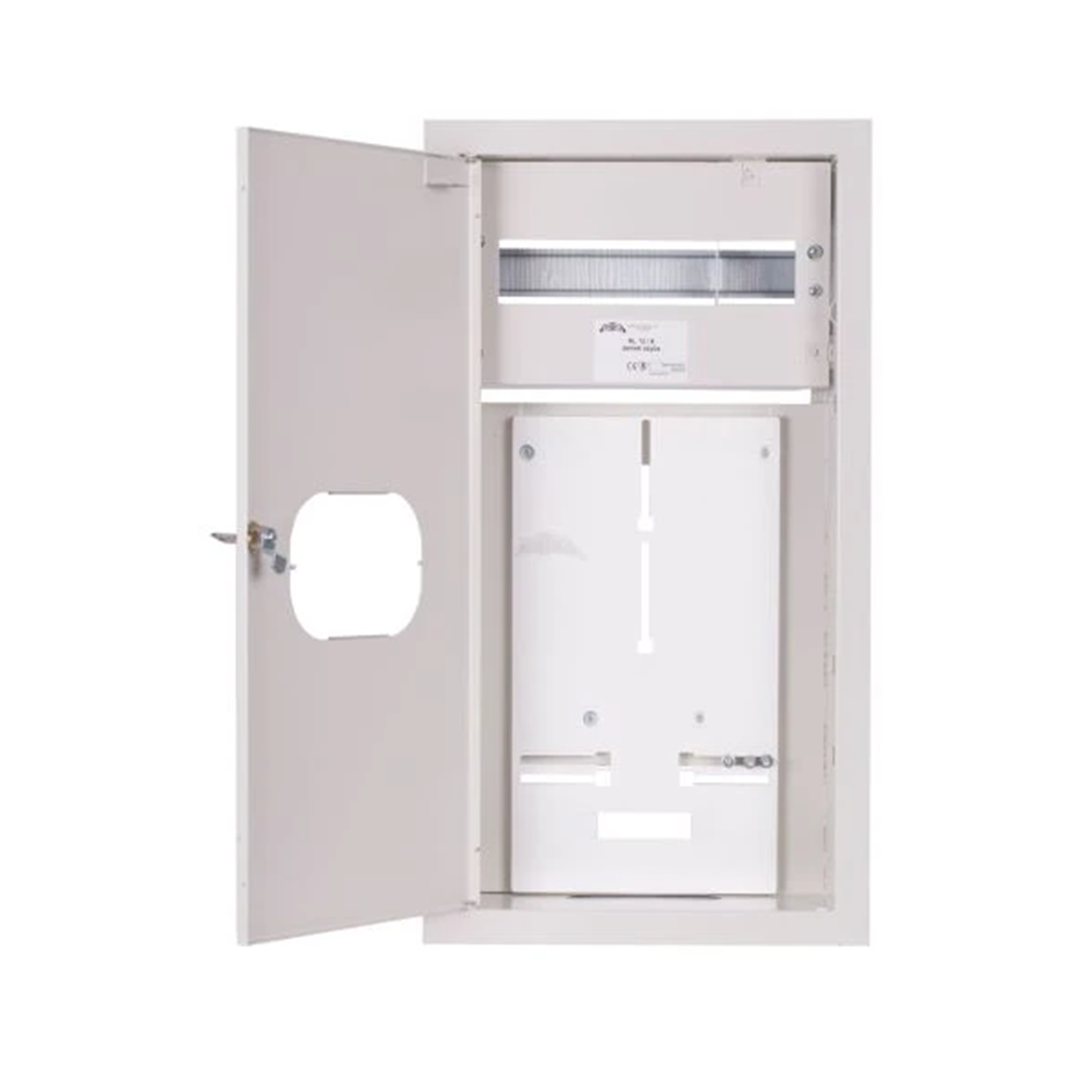

Metal surface-mounted meter switchboard NRL 12 ZSZ NRL 12 ZSZ

local index:
RMR164SABA
Catalog No:
NRL 12 ZSZ
EAN code:
5907813122859
Manufacturer: SABAJ SYSTEM
Depth [mm]: 220
Number of modules: 12
Width [mm]: 310
Price:
103,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 21 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application:

Indoor low-voltage switchgears, depending on the type of installed apparatus, may, together with the distribution of electricity, perform the following functions: - measurement, control of electrical devices - control and supervision of the production process

Installation method: built-in in the wall
Operating conditions: air humidity ÷50%
Ambient temperature: max 40°C min -5°C
Execution of the LV switchgear housing:

Steel sheet 1 mm thick, with protective varnish coating in RAL 9002 color, applied by electrostatic method V
rated insulation voltage: Ui=500V
protection class: I
protection degree: IP 31

Technical data

  • Depth [mm]
    220
  • Width [mm]
    310
  • Height [mm]
    580
  • Number of modules
    12
  • Version
    With lock and glass
  • PKWIU
    27.12.31.0
