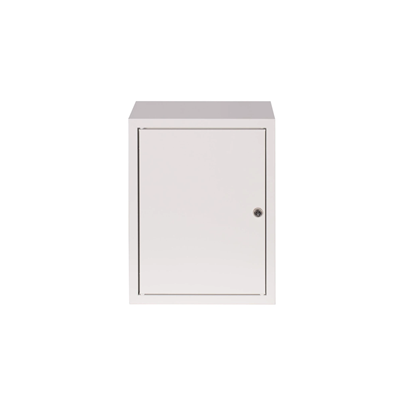

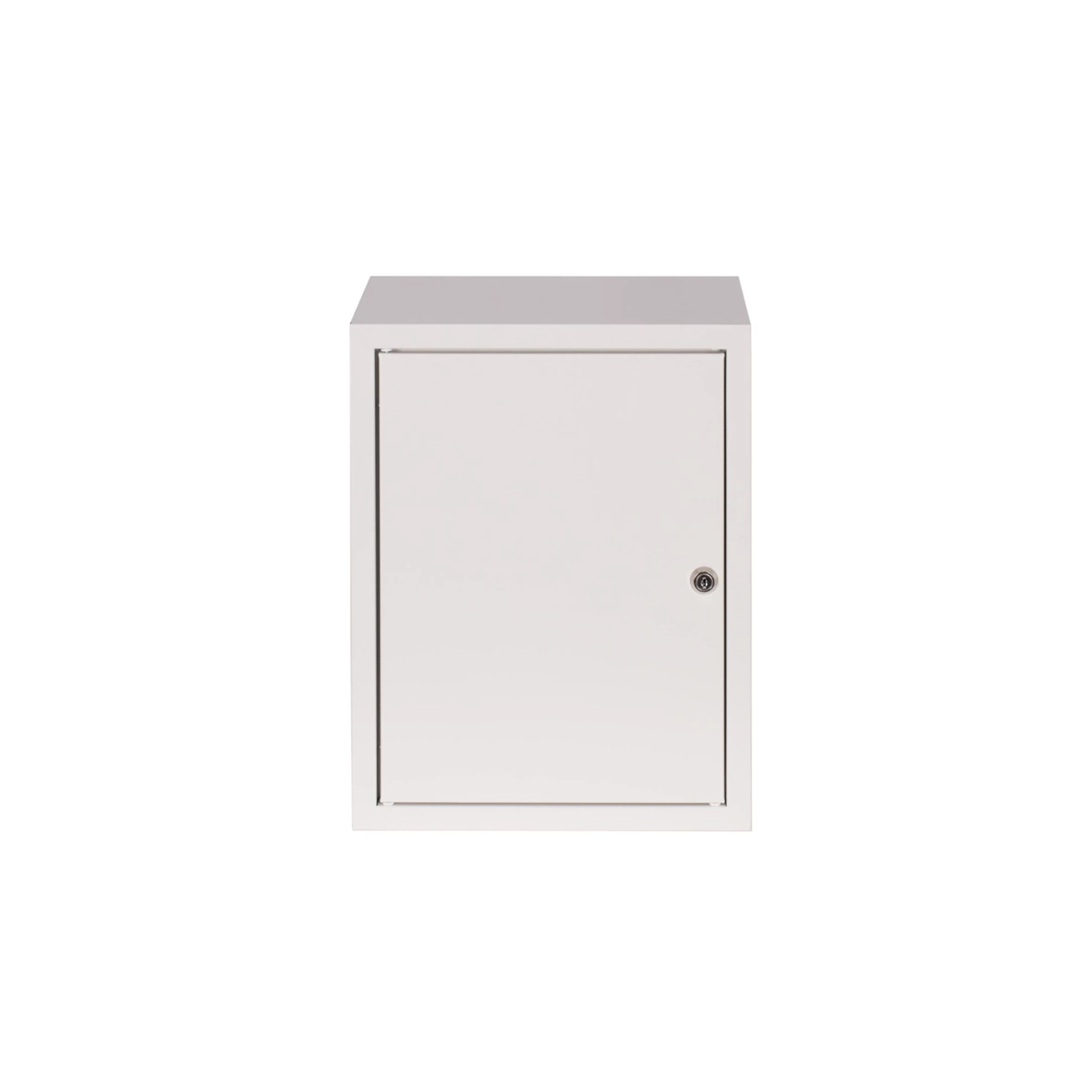

Metal modular switchgear surface-mounted NRP 24 BIS Z NRP 24 BIS Z

Application:

Indoor LV switchgears, depending on the type of installed apparatus, may, together with the distribution of electricity, perform the following functions:
- control of electrical devices
- control and supervision of the production process

Installation method: wall mounting
Operating conditions: air humidity ÷50%
Ambient temperature: max 40°C min -5°C
Enclosure of the LV switchgear:

Steel sheet with a thickness 1 mm, with a protective varnish coating in RAL 9002 color, applied by electrostatic method : Un=380 V
rated insulation voltage: Ui=500V
protection class: I
protection degree: IP 31

Standard set includes:

Steel sheet enclosure
protection mask
door closed with a latch or lock, solid or with glass
TH 35/7.5 rail
terminal rails
a set of screws + nuts
protective conductor
round and rectangular plastic end caps
a set of stickers with assembly instructions
