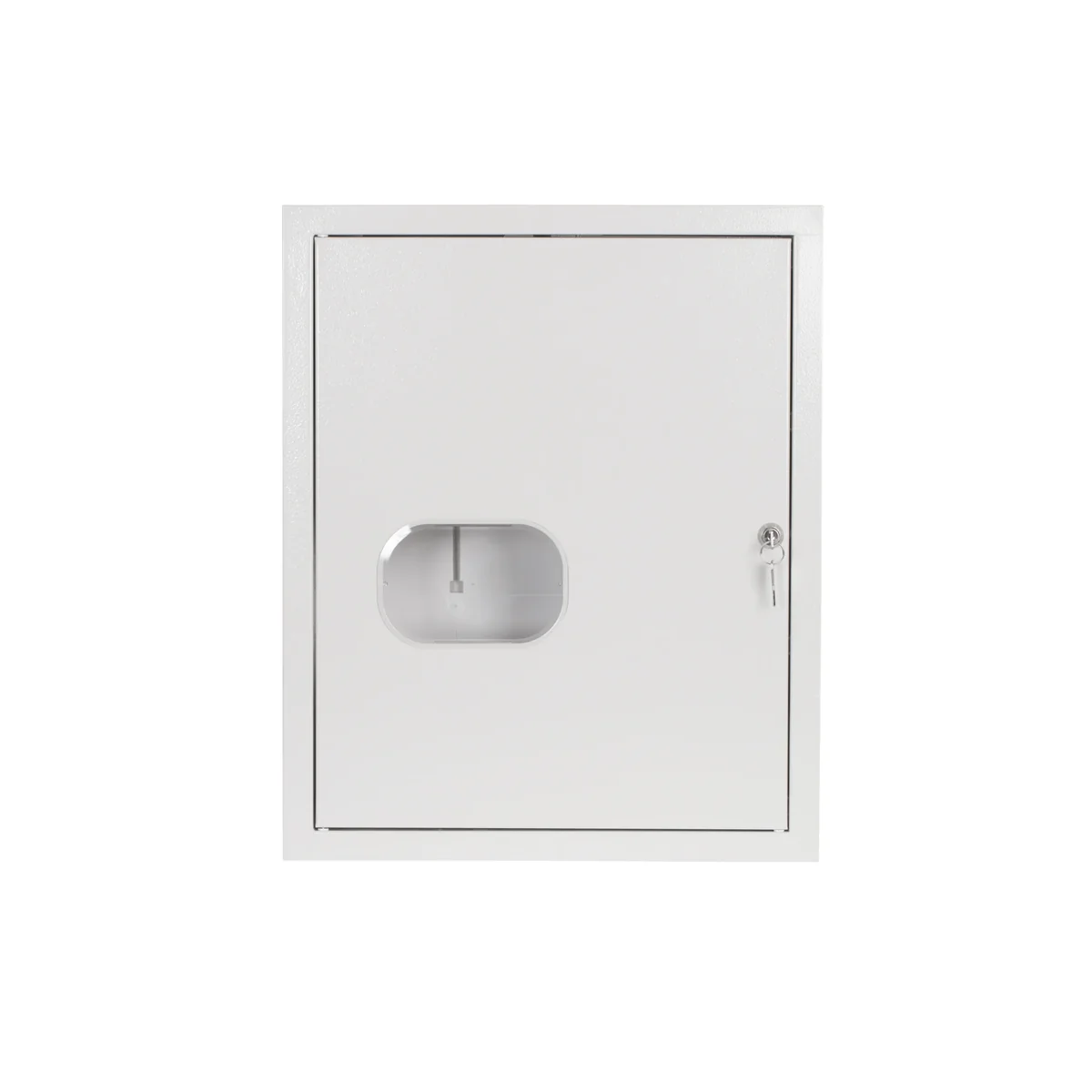

Metal metering switchgear flush-mounted RL 24 ZSZ RL 24 ZSZ

local index:
RMP006SABA
Catalog No:
RL 24 ZSZ
EAN code:
5907813120893
Manufacturer: SABAJ SYSTEM
Depth [mm]: 210
Number of modules: 24
Level of security: IP31
Price:
102,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 19 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application:

Indoor LV switchgears, depending on the type of installed apparatus, may, together with the distribution of electricity, perform the following functions: - control of electrical devices - control and supervision of the production process

Installation method: built-in to the wall
Operating conditions: air humidity ÷50%
Ambient temperature: max 40°C min -5°C
Enclosure of the LV switchgear:

Steel sheet, 1 mm thick, with a protective coating varnish color RAL 9002, electrostatically applied

Electrical parameters:

continuous rated current:
- specified in the catalog card In<100 A
connection rated voltage: Un=380 V
rated insulation voltage: Ui=500V
protection class: I
protection degree: IP 31

The standard set includes:

enclosure made of steel sheets
protection mask
door closed with a latch or lock, solid or with glass
plastic base base for 1- and/or 3-phase meter
TH 35/7.5 rail
terminal rails with insulators
set of screws + nuts
protective conductor
plastic round and rectangular plugs
a set of stickers with assembly instructions

Technical data

  • Depth [mm]
    210
  • Level of security
    IP31
  • Version
    With lock and glass
  • PKWIU
    27.12.31.0
  • Number of modules
    24
  • Width [mm]
    400
  • Height [mm]
    500
