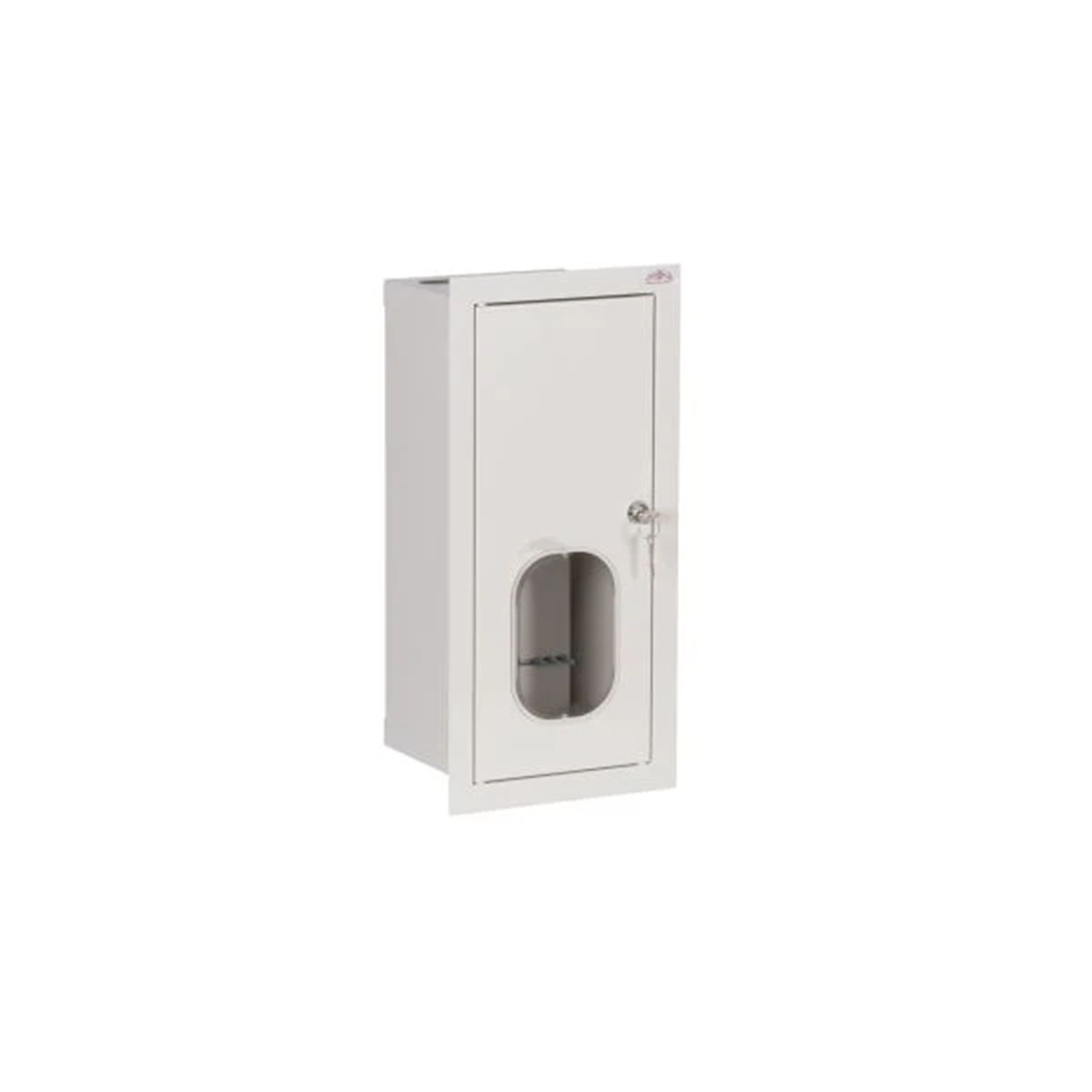

Metal flush-mounted meter switchboard RL 1F6 ZSZ RL 1F 6 ZSZ

Application:

Indoor LV switchgears, depending on the type of installed apparatus, may, together with the distribution of electricity, perform the following functions: - control of electrical devices - control and supervision of the production process

Installation method: built-in to the wall
Operating conditions: air humidity ÷50%
Ambient temperature: max 40°C min -5°C
Enclosure of the LV switchgear:

Steel sheet, 1 mm thick, with a protective coating varnish color RAL 9002, electrostatically applied

Electrical parameters:

continuous rated current:
- specified in the catalog card In<100 A
connection rated voltage: Un=380 V
rated insulation voltage: Ui=500V
protection class: I
protection degree: IP 31

The standard set includes:

enclosure made of steel sheets
protection mask
door closed with a latch or lock, solid or with glass
plastic base base for 1- and/or 3-phase meter
TH 35/7.5 rail
terminal rails with insulators
set of screws + nuts
protective conductor
plastic round and rectangular plugs
a set of stickers with assembly instructions
