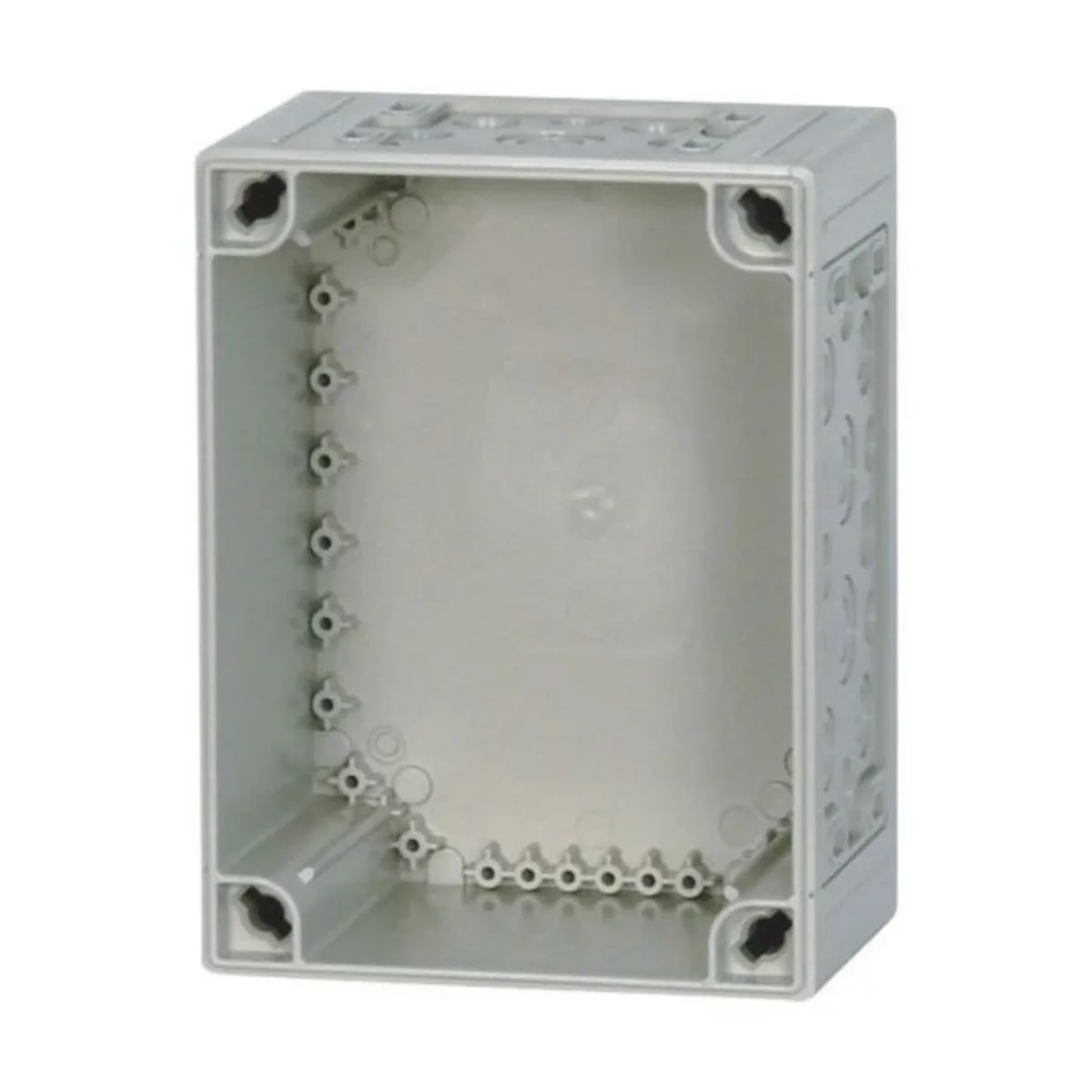

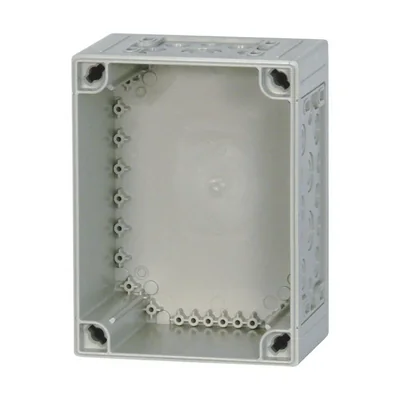

Lower part for housing CI23E, U-CI23E 038793

local index:
RRR383MOEL
Catalog No:
038793
EAN code:
4015080387930
Manufacturer: EATON
Color: Gray
Price:
60,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Lower part for housing CI23E, U-CI23E

Technical data

  • Color
    Gray

Other technical data

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    1600 A
  • Width
    180 mm
  • Built-in depth
    150 mm
  • Material plate thickness cabinet
    6 mm
  • Colour
    Grey
  • Number of modules
    1
  • Width in number of modular spacings
    9
  • Extension possible
    Yes
  • Housing material
    Plastic
  • With mounting plate
    No
  • Suitable for lightning protection
    Yes
  • Degree of protection (NEMA)
    Other
  • Impact strength
    IK10
  • Cover with overpressure release
    Yes
  • Type of covering
    Optional
  • Type of door
    None
  • With lock
    No
  • Height
    250 mm
  • Depth
    100 mm
  • Inner depth
    100 mm
  • Material plate thickness door/cover
    6 mm
  • RAL-number
    7035
  • Number of rows
    0
  • Number of openings for flange plates
    4
  • Number of conduit inlets
    30
  • Surface protection
    Other
  • Suitable for outdoor use
    Yes
  • Degree of protection (IP)
    IP65
  • Protection class
    II
  • Circuit integrity
    Other

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,912
Volume (m3) 0,006
Width (m) 0,187
Length (m) 0,246
Depth (m) 0,124
