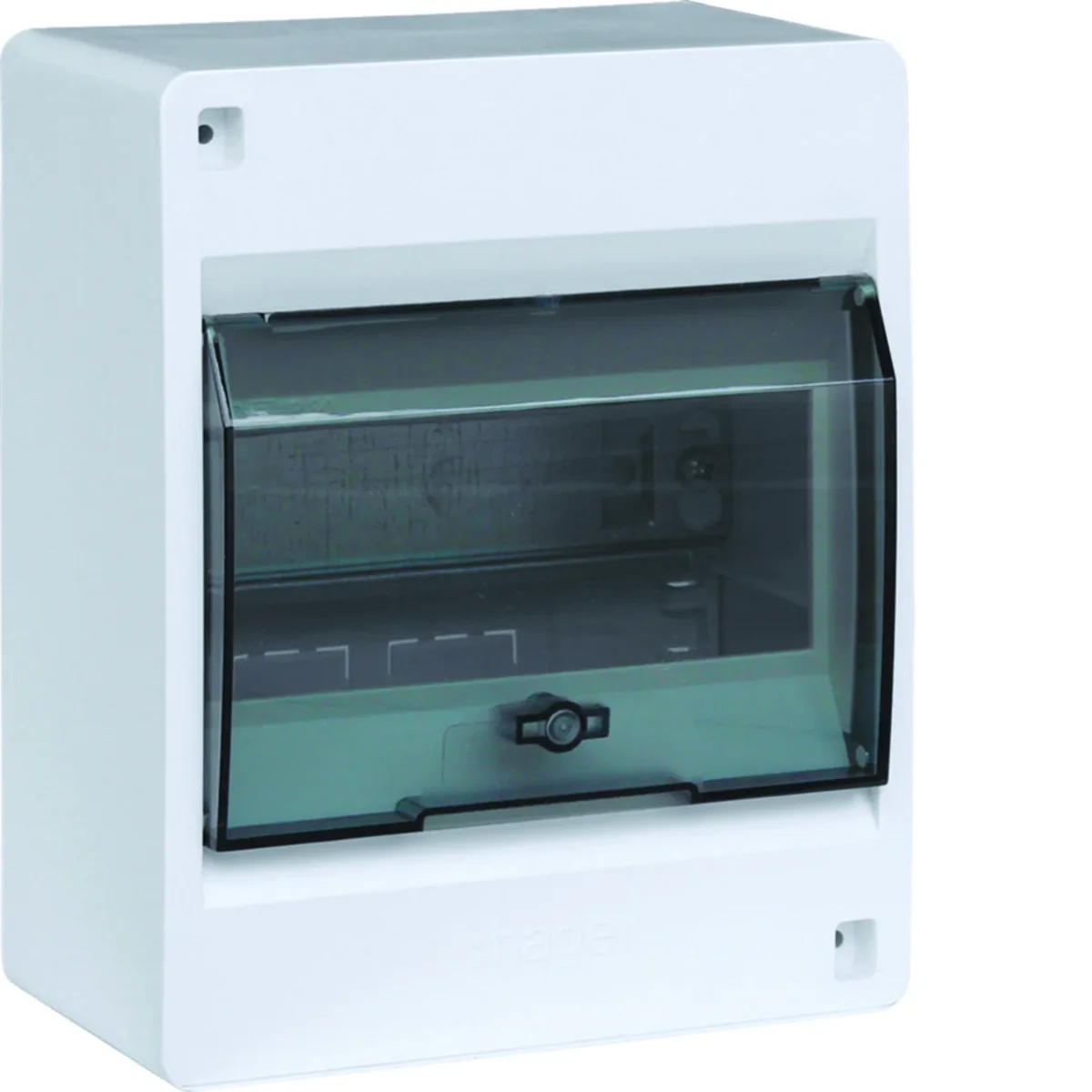

IC2 Switchgear 1x6M n/t IP40 transparent door VD106TP

local index:
RMN079HAGE
Catalog No:
VD106TP
EAN code:
3250616467859
Manufacturer: HAGER
Depth [mm]: 91
Number of modules: 6
Number of rows: 1
Price:
9,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Surface-mounted switchgear, 1 row/6 modules, transparent door, IC2 mini-switchboard series.

Technical data

  • Depth [mm]
    91
  • Number of rows
    1
  • Color
    White
  • Level of security
    IP40
  • Height [mm]
    170
  • Number of rows for cameras
    1
  • Number of modules
    6
  • Protection class
    II
  • Family
    IC2
  • Width [mm]
    134.5
  • Glow wire test [°C]
    650
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    6
  • Cover model
    Closed
  • Housing material
    Plastic
  • Width
    134.5 mm
  • Inner depth
    72 mm
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Type of closure
    Other
  • Number of rows
    1
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    170 mm
  • Depth
    91 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • With lock
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 288 pcs.
Weight (kg) 0,298 0,420 0,102
Width (m) 0,134 0,145 0,800
Length (m) 0,170 0,100 1,050
Depth (m) 0,100 0,190 1,200
