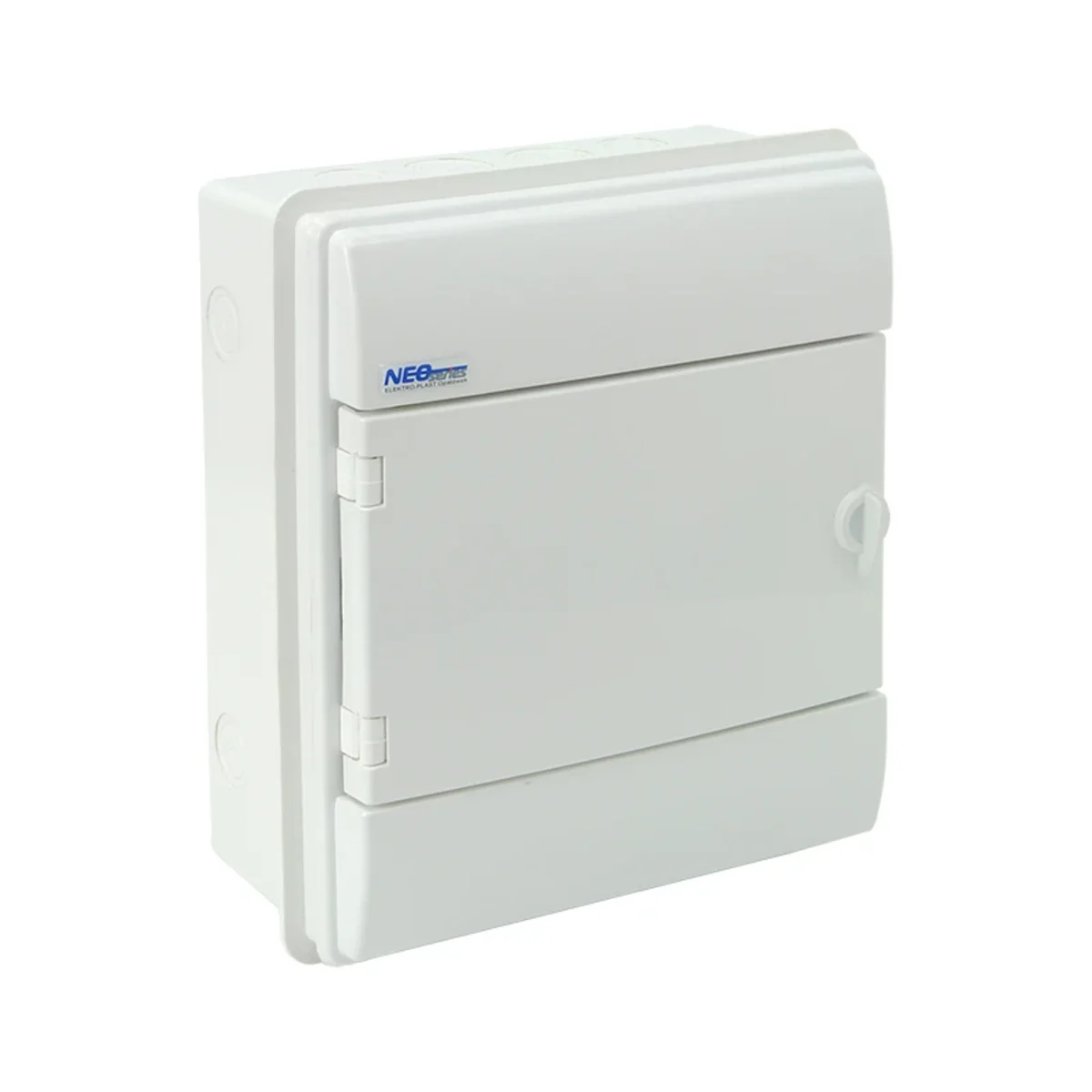

Hermetic switchgear RHp-8/B (white door) 36.807
local index:
RIH022ELOP
Catalog No:
36.807
EAN code:
5905548286068
Price:
22,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
RH "NEO" series hermetic switchboards are intended for domestic and industrial use with the possibility of installing overcurrent breakers and electrical devices. They are available in surface-mounted and flush-mounted versions and are widely used in installations performed outside buildings.
Technical characteristics:
switchboards equipped with a transparent, tinted door that opens to the side (left or right), adapted to be fitted with a key lock,- < br/> available in white,
made of high quality >ABS< resistant to high temperature up to 960oC (hot rod test - applies to the terminal block),
operation stability from -25°C to +60°C,
impact resistance (IK 07 degree),
possibility of installing cameras with a depth of 68 and 75mm, < br/>
12-module and larger models equipped with knockouts in the walls for cable passages and installation pipes,
possibility of sealing the door,
switchboards equipped:
with terminal strips for N and PE tracks, < br/>
TH 35 mounting bracket,
self-adhesive label for description.

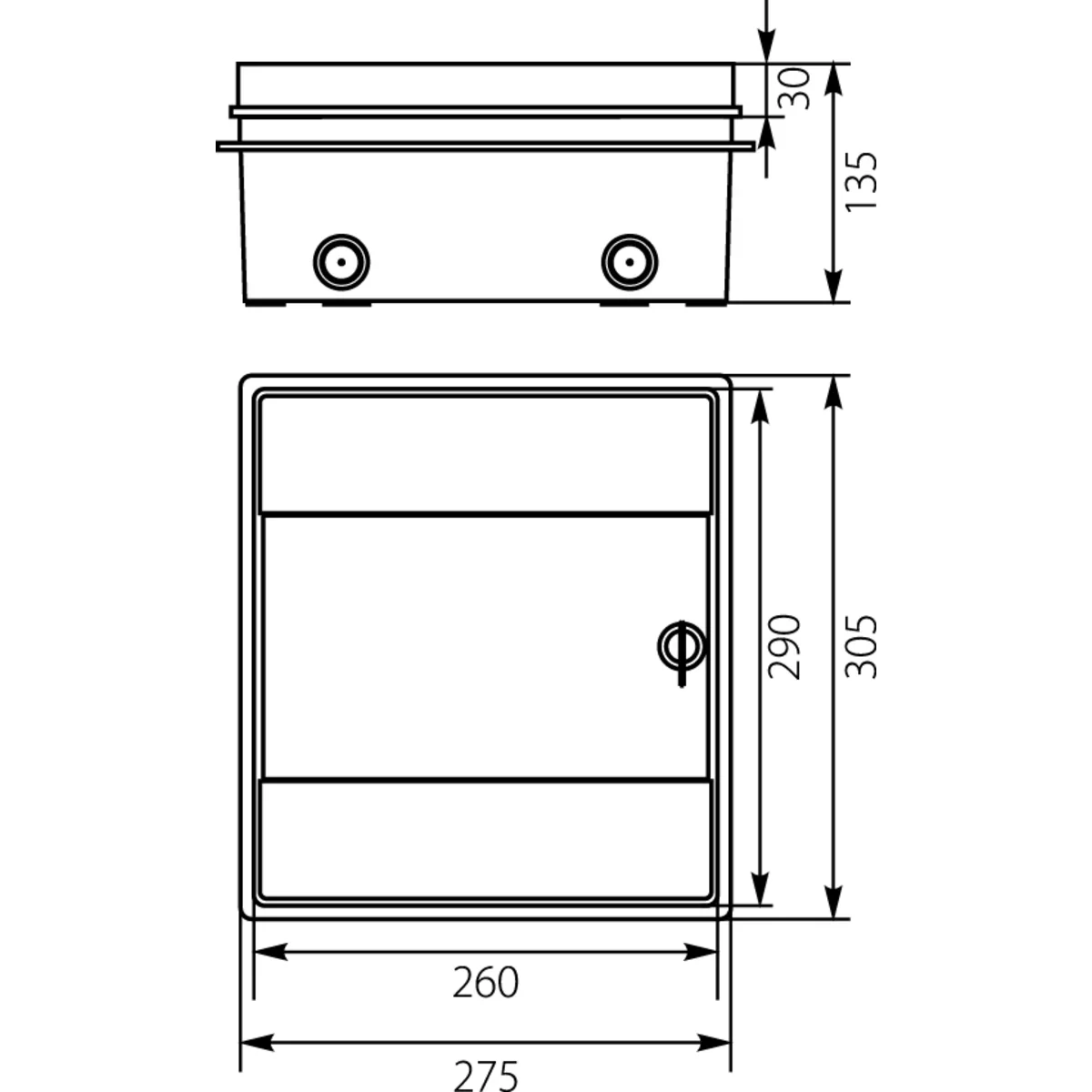

Technical data
-
Depth [mm]135
-
Type1x8
-
PKWIU27.12.31.0
-
Width [mm]275
-
Height [mm]305
Other technical data
-
Mounting methodFlush-mounted
-
Width in number of modular spacings8
-
Cover modelWith notch
-
Housing materialPlastic
-
Width275 mm
-
Built-in depth105 mm
-
DIN-railYes
-
Extension possibleNo
-
ColourWhite
-
Degree of protection (IP)IP65
-
Type of closureCylinder
-
Number of rows1
-
Type of coveringDoor
-
Transparent cover/doorNo
-
Height305 mm
-
Depth165 mm
-
Inner depth90 mm
-
With mounting plateNo
-
EMC-versionYes
-
RAL-number9003
-
With lockNo
Manufacturer details
-
ManufacturerELEKTRO-PLAST Opatówek Sp.z o.o.
-
Address62-860 Opatówek Rogatka 14
-
Phone number
-
E-mail
-
Tax identification number9680893101
-
GLN5909000637801
Bulk packaging
| A kind of package | Sztuka | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 1,364 | - |
