UNIVERS Floor-standing distribution board IP55/I 800x1850x275 + 100mm plinth FR23E1

Name: UNIVERS Floor-standing distribution board IP55/I 800x1850x275 + 100mm plinth
Brand: HAGER
SKU: RIH138HAGE
Price: 4436.27 PLN
Availability: BackOrder

Indeks lokalny:

RIH138HAGE

Numer katalogowy:

FR23E1

Kod EAN:

3250616004047

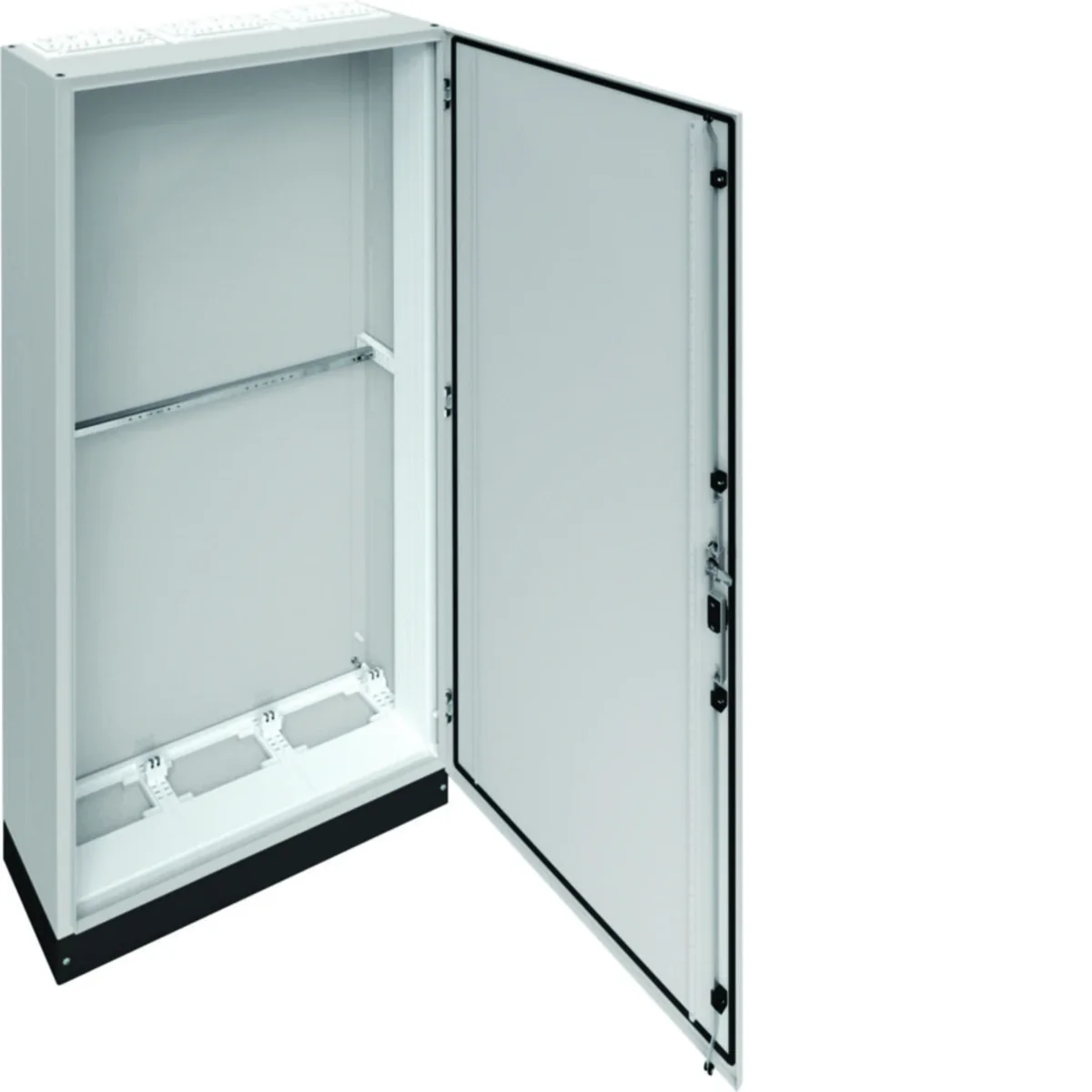

UNIVERS Floor-standing distribution board IP55/I 800x1850x275 + 100mm plinth

Kliknij zdjęcie, aby powiększyć

Producent: HAGER

Halogen free: NO

Depth [mm]: 275

Thickness [mm]: 1.5

Zobacz cały opis

Cena:

4 436,27 zł

gross / szt.

(w tym VAT 23%)

do 4 tygodni

Na zamówienie

Ilość szt.

(wielokrotność:

)

Dodaj do zapytania ofertowego

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Standing switchgear with a 100mm base, univers series.

Series characteristics:

Cabinet systems are characterized by with the functionality of the building, not only as distribution switchboards (main power supply), but also as metering cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Dane techniczne

Halogen free

NO
Thickness [mm]

1.5
Number of locks

1
Color

Gray
Installation

Surface-mounted
Family

UNIVERS
Width [mm]

800
Surface finish

Powder coated
Number of rows for cameras

12
PKWIU

27.12.40.0

Depth [mm]

275
Number of doors

1
Protection class

AND
Housing material

Steel plate
Surface

Matt
Level of security

IP55
Height [mm]

1950
Accurate color

light gray
Number of cable entries

6

Pozostałe dane techniczne

Mounting method

Floor installation
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

800 A
Width

800 mm
Inner depth

275 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Number of rows

12
Number of openings for flange plates

6
Number of conduit inlets

6
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP55
Impact strength

IK10
Cover with overpressure release

No

Type of covering

Door
Type of door

Single
With lock

No
Height

1950 mm
Depth

275 mm
Material plate thickness cabinet

1.5 mm
Colour

Grey
Number of modules

432
Width in number of modular spacings

24
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Dane producenta

Producent

Hager Electro GmbH & Co KG
Adres

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Opakowania zbiorcze

Rodzaj opakowania	Karton	Paleta	Karton	Paleta
Ilość	1 szt.	4 szt.	1 szt.	4 szt.
Waga (kg)	68,750	300,000	68,750	300,000
Szerokość (m)	0,820	0,820	0,820	0,820
Długość (m)	1,970	2,120	1,970	2,120
Głębokość (m)	0,300	1,200	0,300	1,200
