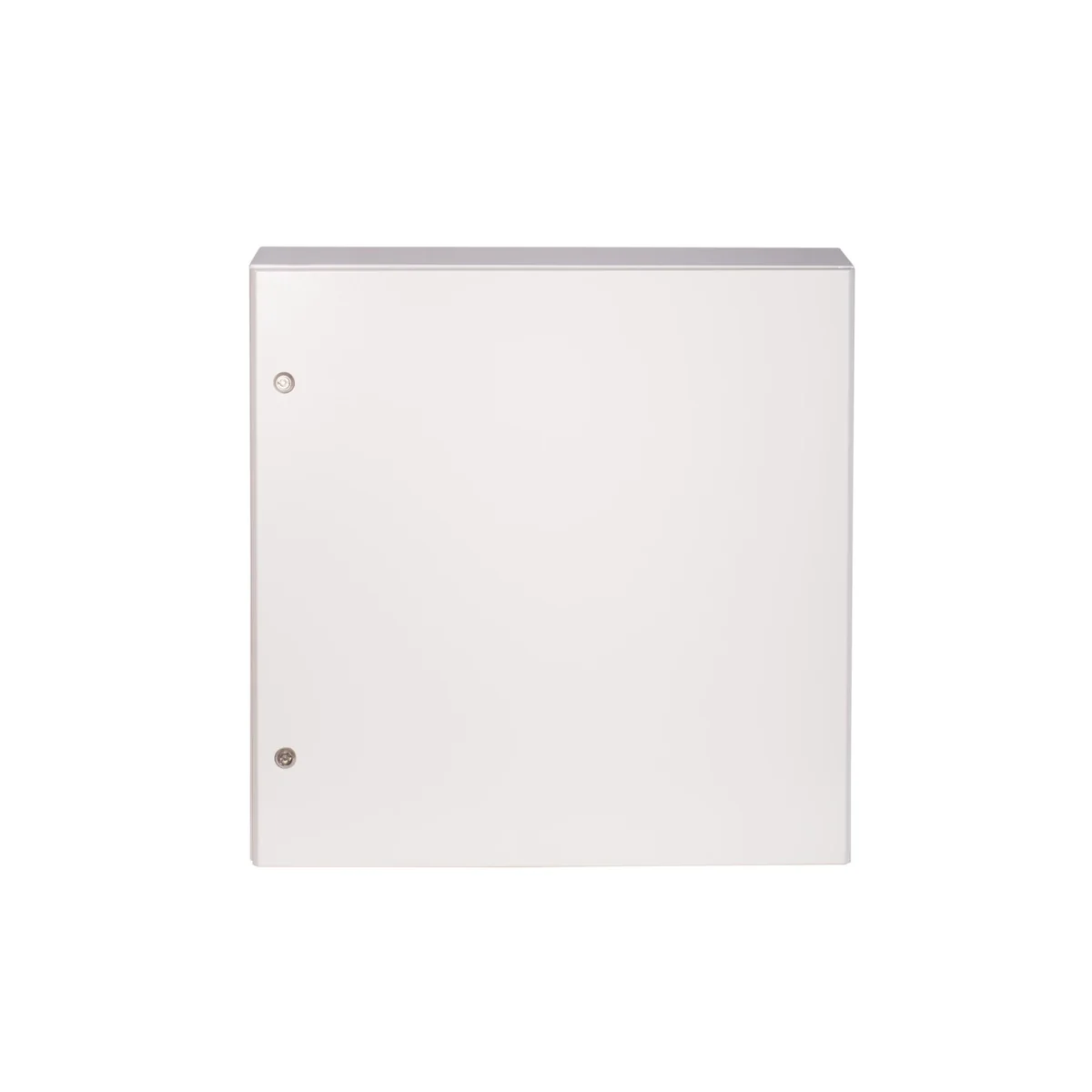

Hermetic switchgear RH 883 RH 883

Application:

Indoor low-voltage switchgears, depending on the type of installed apparatus, may, together with the distribution of electricity, perform the following functions: - measurement, control of electrical devices - control and supervision of the production process

Installation method: built-in universal
Operating conditions: air humidity ÷70%
Ambient temperature: max 40°C min -5°C
Execution of the LV switchgear housing:

Steel sheet with a thickness of 1.5 mm, with a protective varnish coating of RAL 9002 color, applied by electrostatic method

Electrical parameters:

continuous rated current:
- specified in the data sheet In<100 A
connection rated voltage: Un= 380 V
rated insulation voltage: Ui=500V
protection class: I
protection degree: IP65

The standard set includes (applies to RH)

a casing made of steel sheet with poured gasket IP65
mounting plate
key for IP65 lock
set of screws + nuts
plastic round plugs
set of stickers with assembly instructions
Standard set includes (applies to RH 1F6, RH 3F 12 , RH 3F 24)

enclosure made of steel sheet with poured gasket IP65
enclosure ALFA 6S/P12/P24
plastic base base for 1- and/or 3-phase meter
screw set + nuts
plastic round plugs
a set of stickers with assembly instructions
