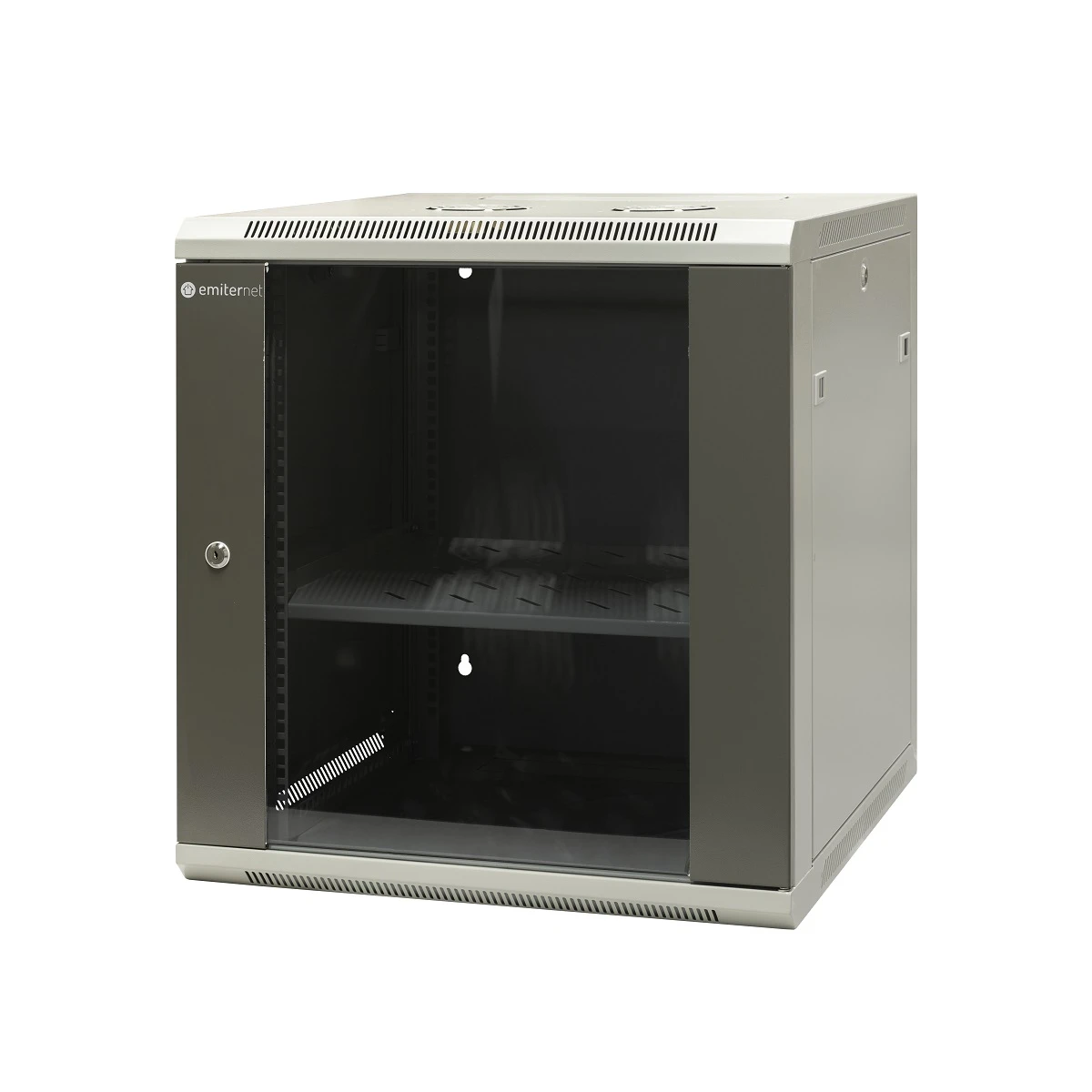

Hanging wardrobe 19'' 12U, steel/glass door, removable side covers with a lock, 600×600×635 W/D/H. mm; RAL: wardrobe 7044, door 7010, fixed shelf 270mm and set of 15 mounting screws included EM/AP6612

local index:
RMR021EMSO
Catalog No:
EM/AP6612
EAN code:
5906764107922
Manufacturer: EMITER
Depth [mm]: 600
Width [inch]: 19
Width [mm]: 600
Price:
150,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Product description and technical characteristics:

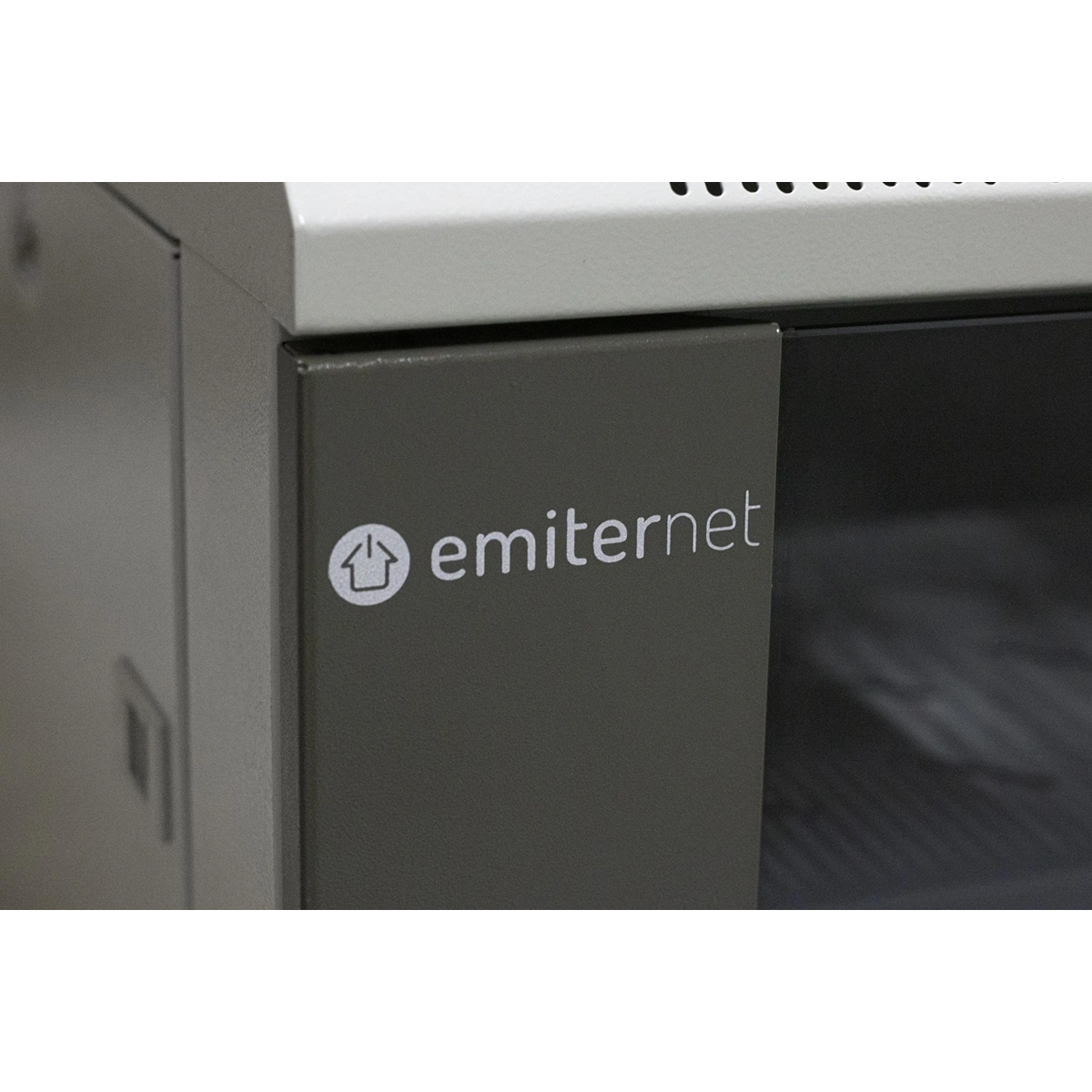

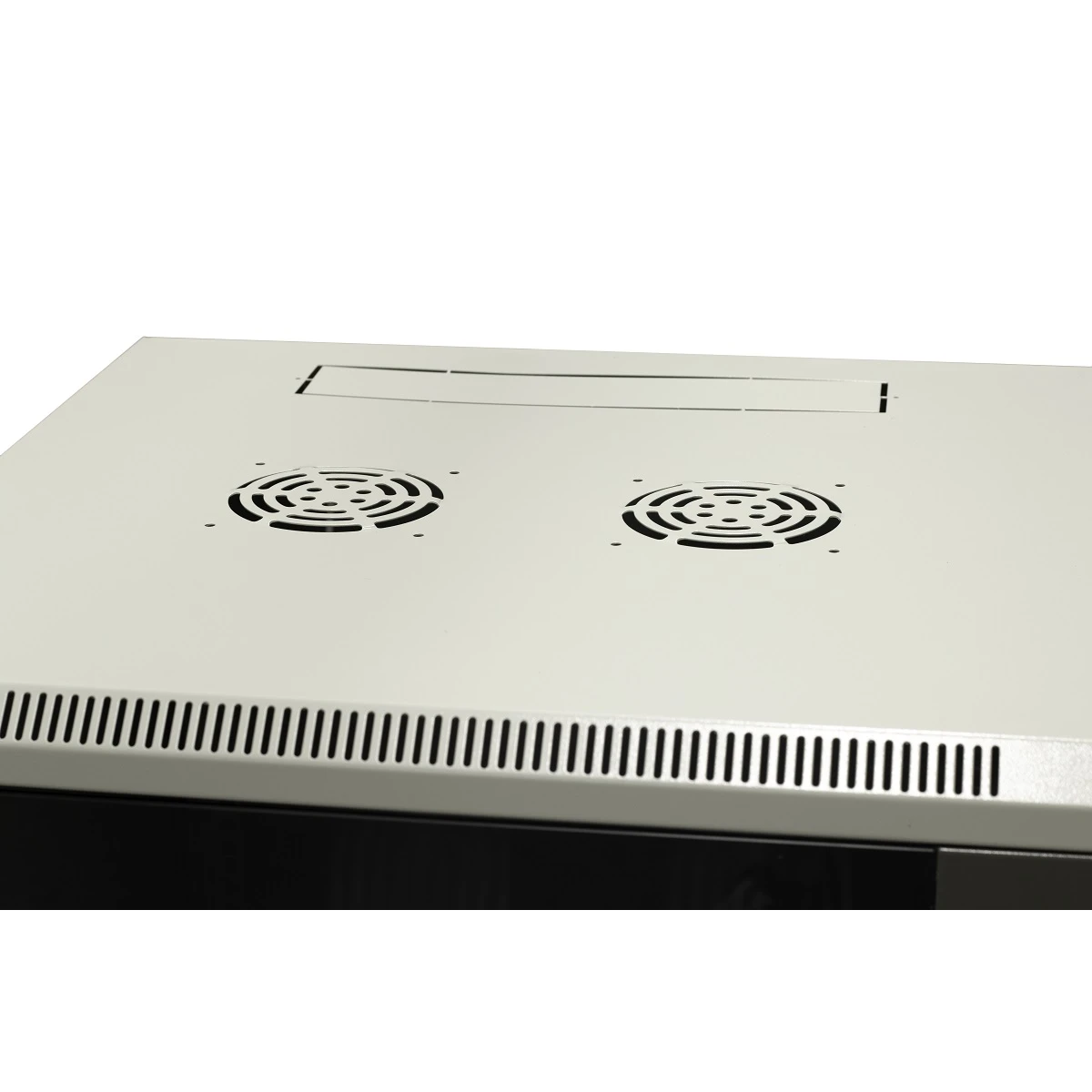

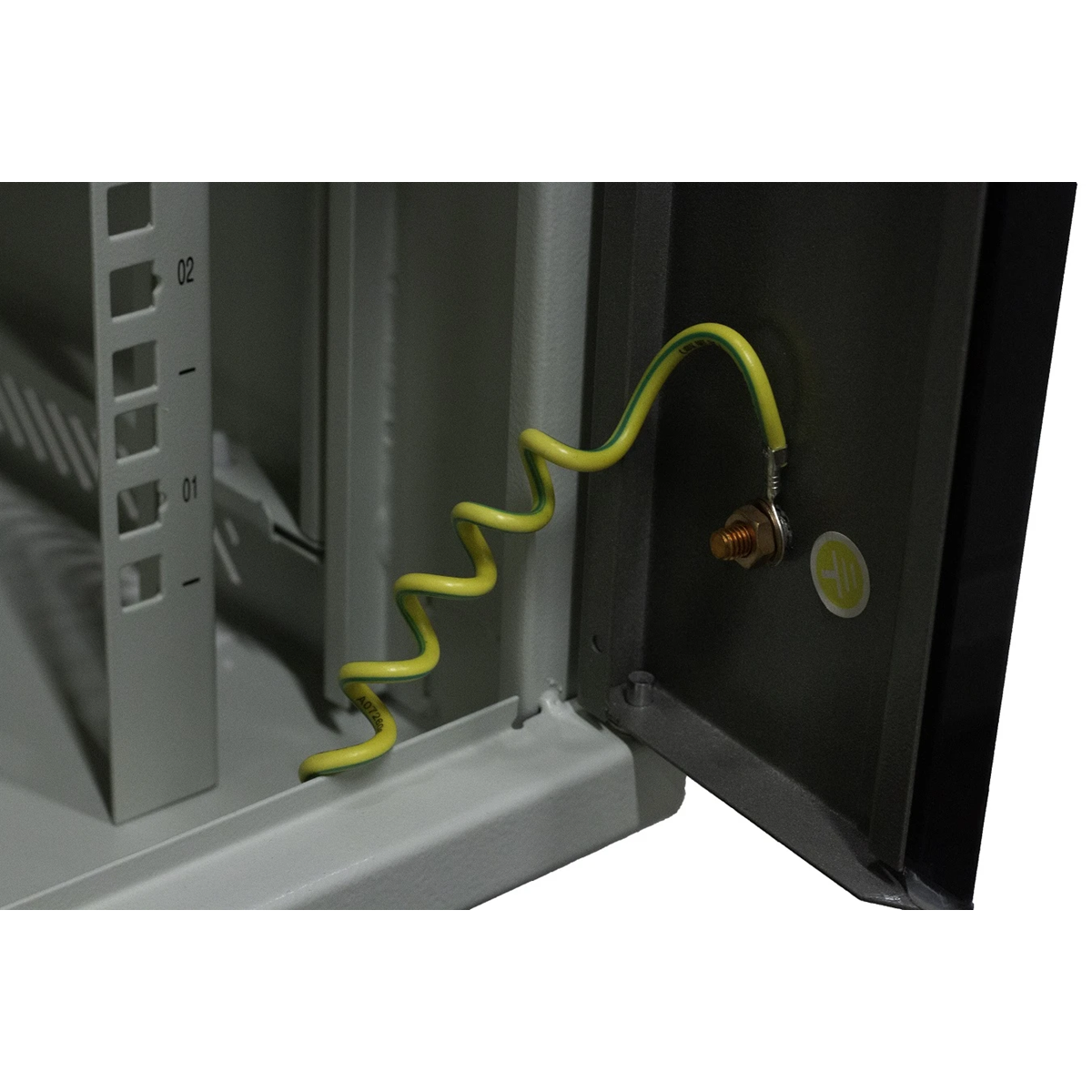

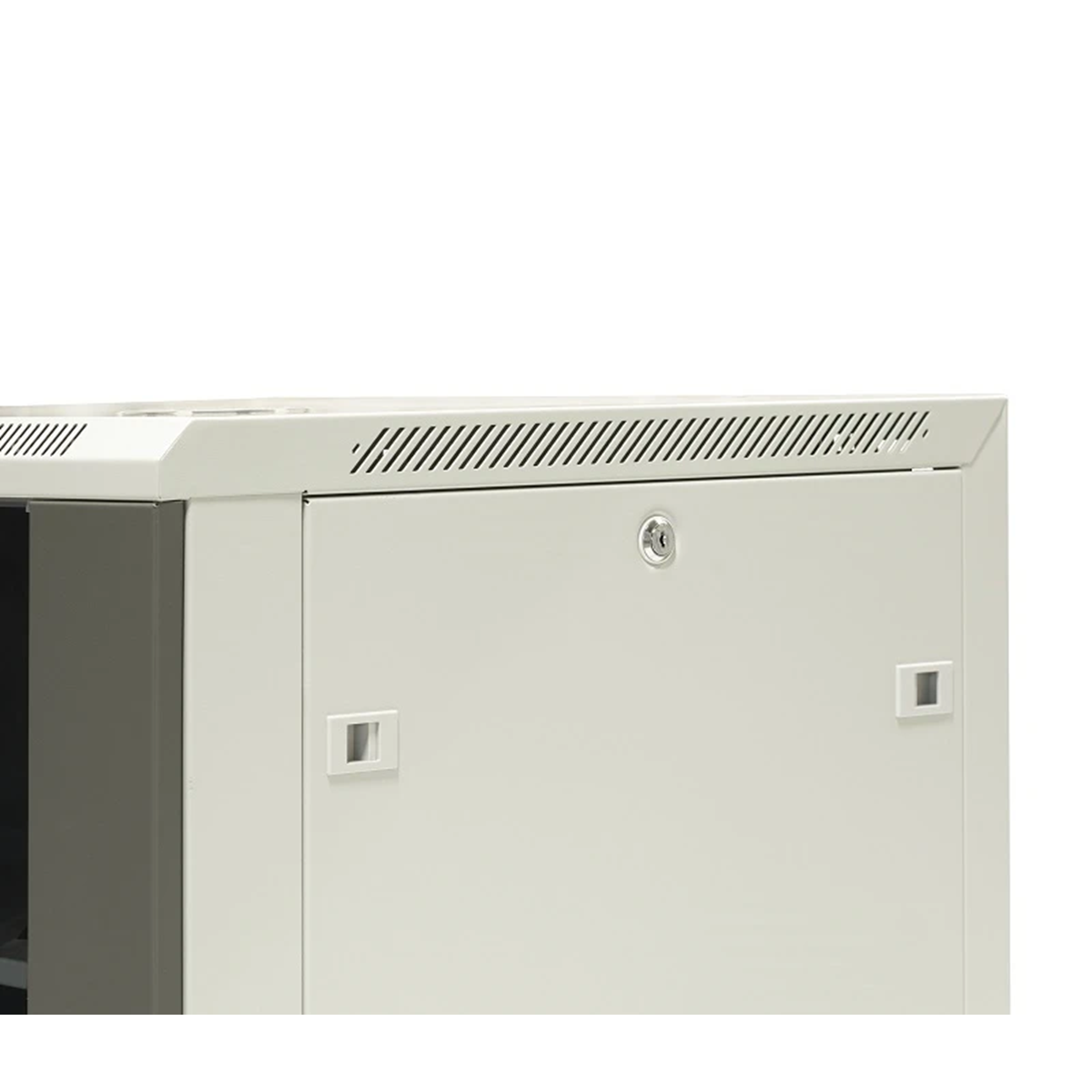

The construction of the cabinet is made of steel sheet. The housing has two cable outlets (340x60mm, 1xtop part, 1xbottom part). Front door with glued-in tempered glass and a 1-point lock, mounted on hinges that allow the door to open 180 degrees. Removable side covers with zipper. Two levels 19” vertical mounting profiles, mounted on horizontal traverses with raster, every 20 mm, minimum distance from the front door 35 mm (standard 65 mm). In the roof of the cabinet, openings are adapted for the installation of 1-fan ventilation modules. 300mm long cable for grounding. Fixed shelf 270mm and 15 mounting screws in standard equipment. The cabinets are intended for indoor use.

Technical parameters:

  • Cabinet color RAL 7044 (light gray - structure)
  • RAL 7010 door color (dark gray - structure)
  • Two mounting levels 19”
  • Rating of protection against solid objects, dust and water ingress: IP 20 (does not apply to cabinets with mounted feedthroughs) brushes)
  • The cabinet is completely assembled

Technical data

  • Depth [mm]
    600
  • Width [mm]
    600
  • Height [U]
    12
  • Width [inch]
    19
  • Height [mm]
    635
  • load capacity [kg]
    50

Other technical data

  • Mounting level
    Front and rear
  • Number of doors
    1
  • Width
    600 mm
  • Depth
    600 mm
  • Number of height units
    12
  • With roof plate
    Yes
  • With front door
    Yes
  • Front door locking system
    One point
  • With glazed door
    Yes
  • With base
    No
  • Material
    Steel
  • Colour
    Grey
  • RAL-number
    7044
  • Degree of protection (IP)
    IP20
  • Type of profile rail
    L-shaped
  • Type of ventilation
    Passive
  • Height
    635 mm
  • Modular spacing
    482.6 mm (19 inch)
  • Max. load capacity
    50 kg
  • With earthing
    Yes
  • Material front door
    Glass
  • With rear door
    No
  • With sidewall
    Yes
  • With vertical cable management
    Yes
  • Surface finishing
    Powder coating
  • Model
    With swing frame
  • Demountable
    No
