Hanging wardrobe 10'' 9U, steel/glass door, 325×330x445, RAL: Wardrobe 7044, shelf included EM/SOHO-9U

local index:
RMR049EMSO
Catalog No:
EM/SOHO-9U
EAN code:
5906764105454
Manufacturer: EMITER
Depth [mm]: 330
Width [mm]: 325
Weight [g]: 10000
Price:
109,80 €
gross / pcs.
(including VAT 23%)
10,98 € gross/kg.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Description and technical characteristics of the product:

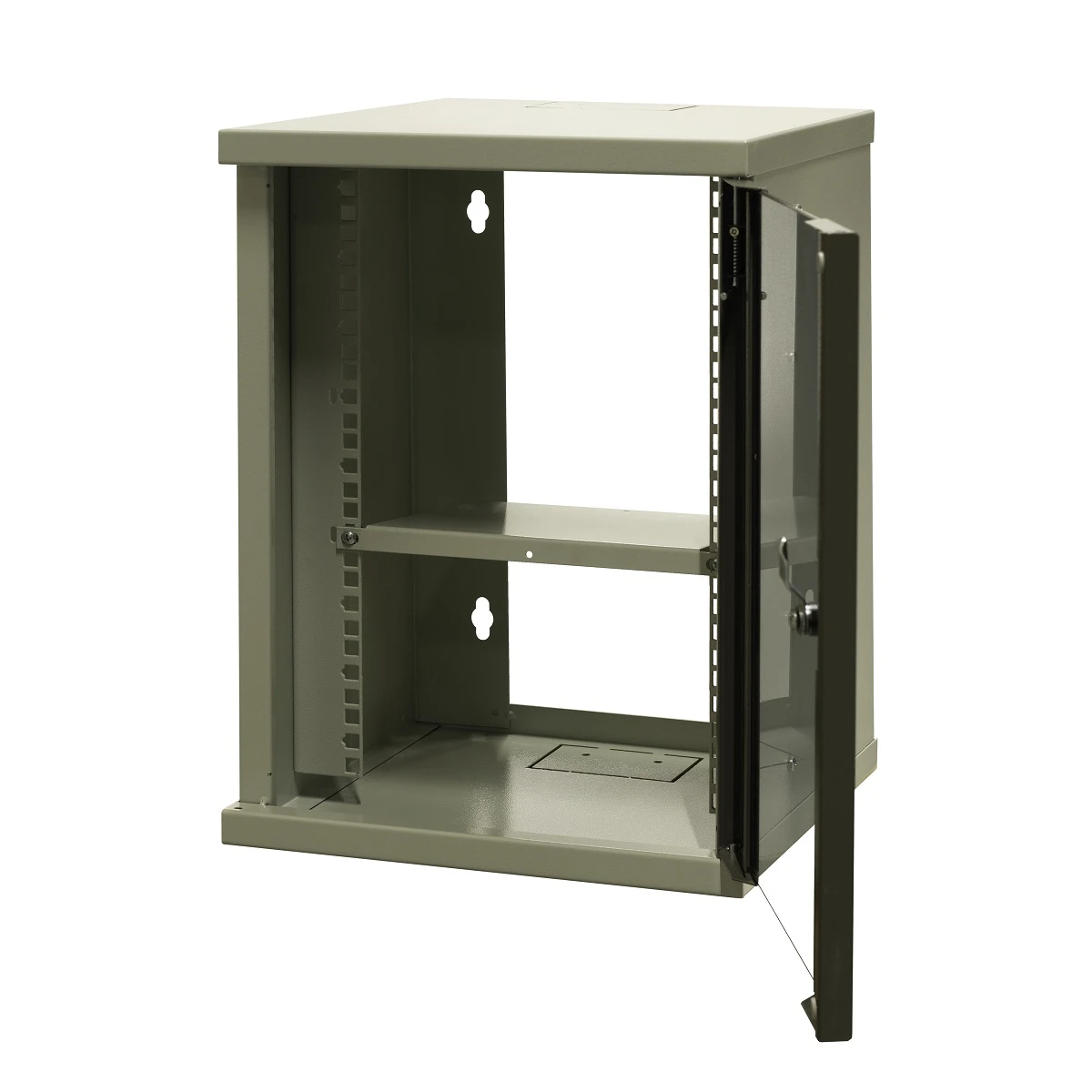

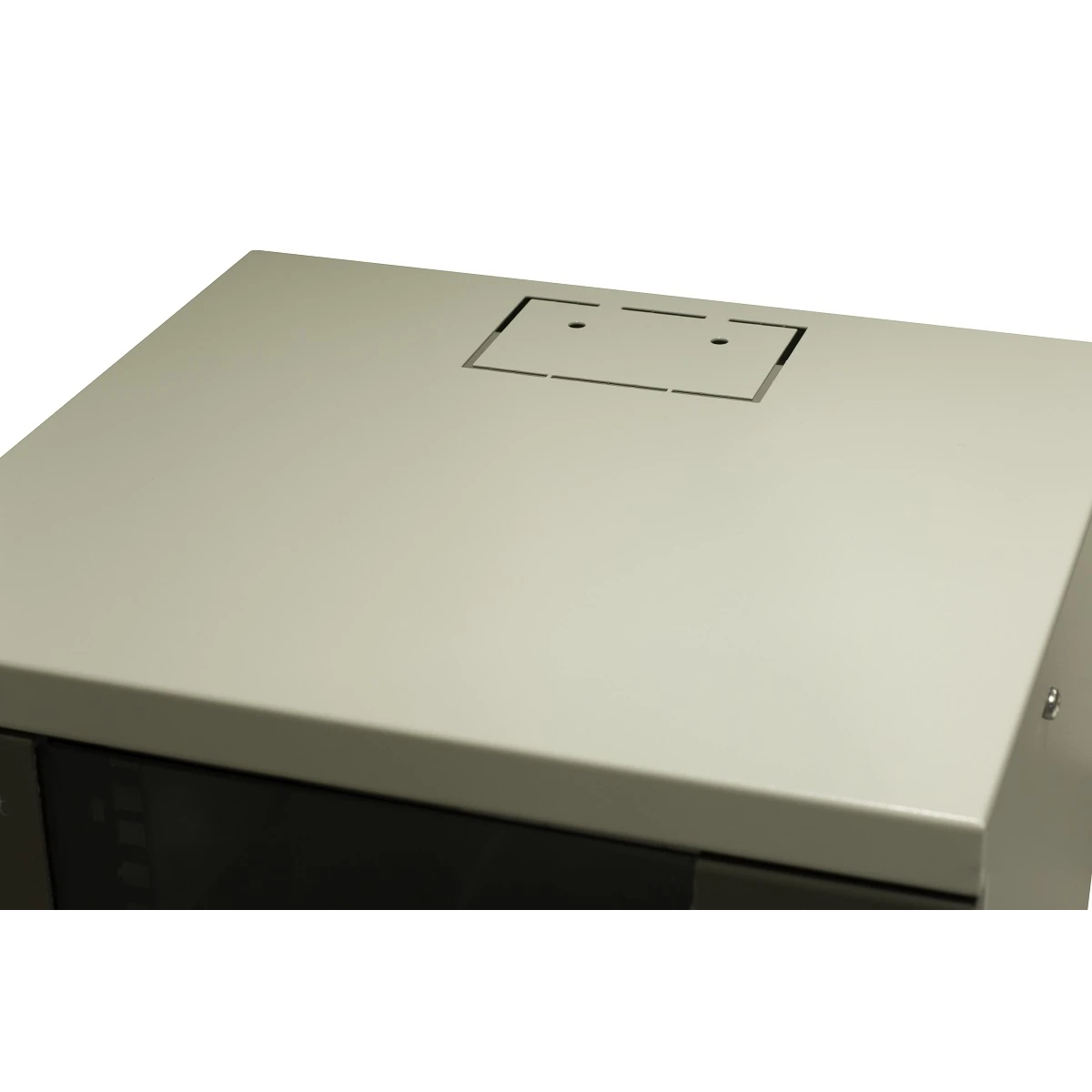

The structure of the cabinet is made of steel sheet, powder coated. The housing has openings in the roof and floor
adapted for knocking out and inserting cables with dimensions 100x65 mm
(width x height).

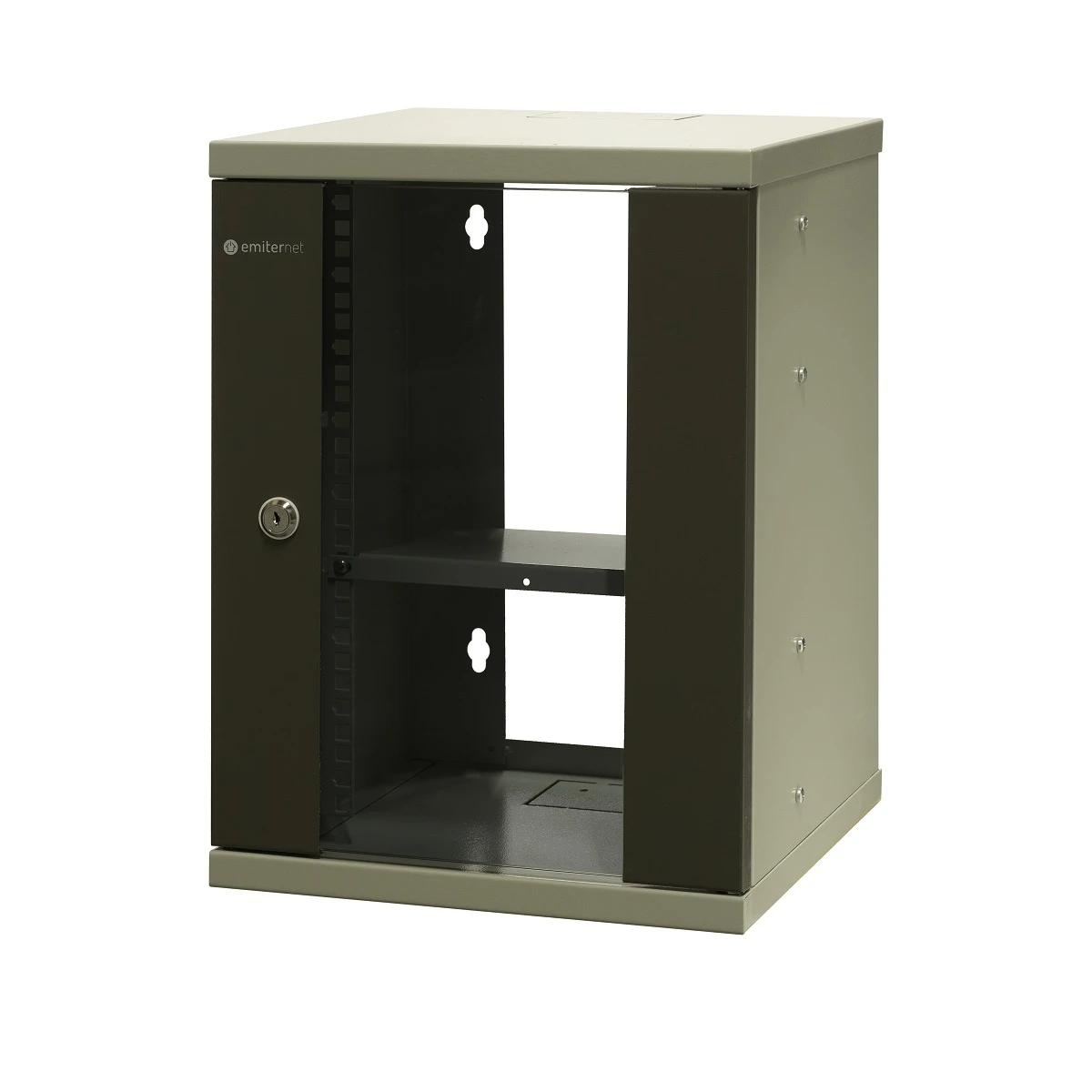

Front door with glued glass, with a 1-point lock,
mounted on hinges. The door opening direction can be changed.
Back made of metal with 4 holes for cabinet mounting and a large
hole for cables and wires.
Two vertical mounting profiles 19” (one mounting plane)
at a distance of 75 mm from the front door.


Technical parameters:
Standard color RAL 7044 (light gray - structure)
Doors made of steel sheet
One mounting plane 19”
The cabinet is fully assembled
Cabinets packed in a cardboard box


Equipment:

  • panel fixed in 2 points
  • mounting screws 6 sets
  • 2 pcs door keys

Technical data

  • Depth [mm]
    330
  • Weight [g]
    10000
  • Height [U]
    9
  • Width [mm]
    325
  • Height [mm]
    445
  • load capacity [kg]
    20

Other technical data

  • Mounting level
    Front side
  • Number of doors
    1
  • Width
    325 mm
  • Depth
    330 mm
  • Number of height units
    9
  • With roof plate
    Yes
  • With front door
    Yes
  • Front door locking system
    One point
  • With glazed door
    Yes
  • With base
    No
  • Material
    Steel
  • Colour
    Grey
  • RAL-number
    7044
  • Type of profile rail
    L-shaped
  • Type of ventilation
    None
  • Height
    445 mm
  • Modular spacing
    254 mm (10 inch)
  • Max. load capacity
    20 kg
  • With earthing
    No
  • Material front door
    Glass
  • With rear door
    No
  • With sidewall
    Yes
  • With vertical cable management
    Yes
  • Surface finishing
    Powder coating
  • Model
    With permanent frame
  • Demountable
    No
