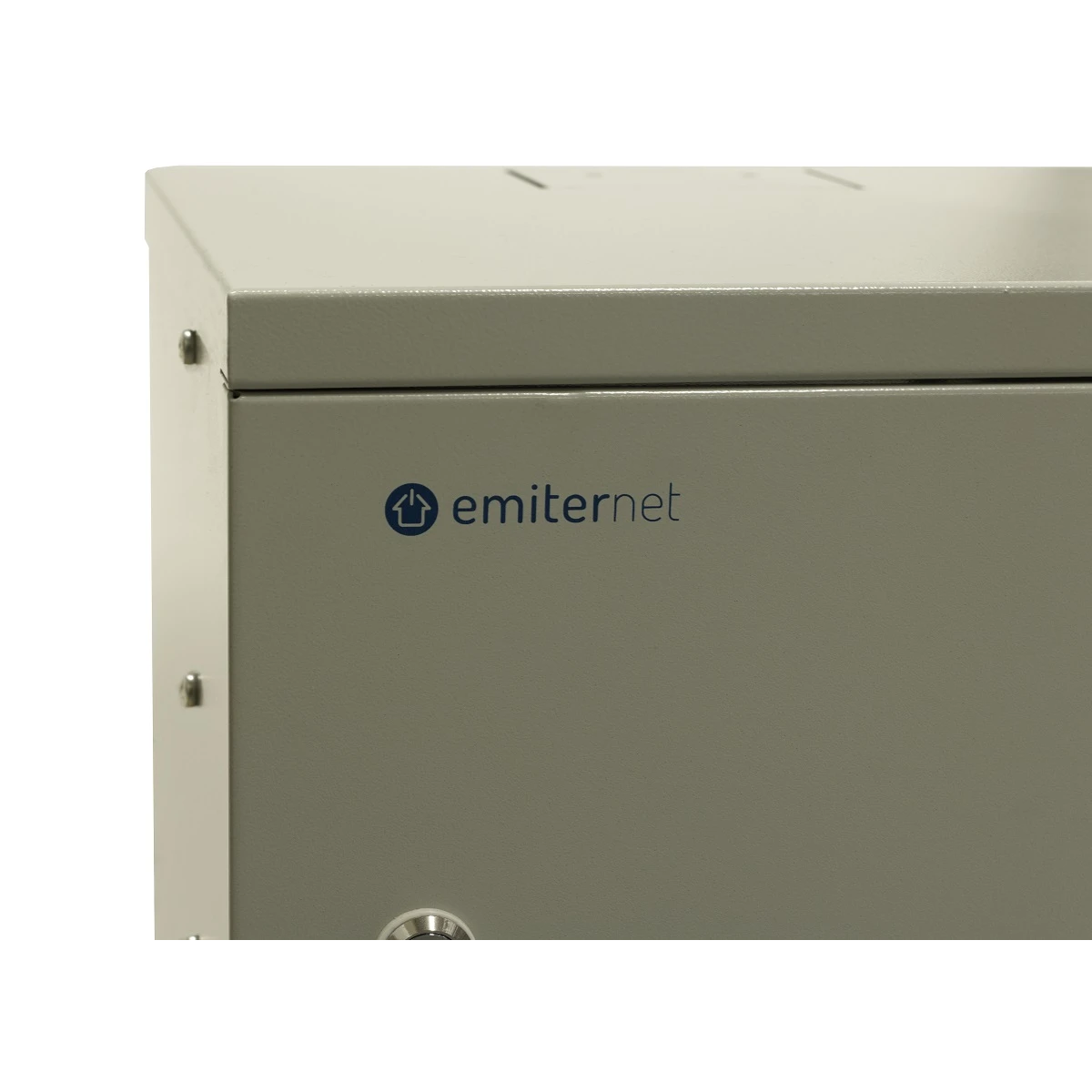

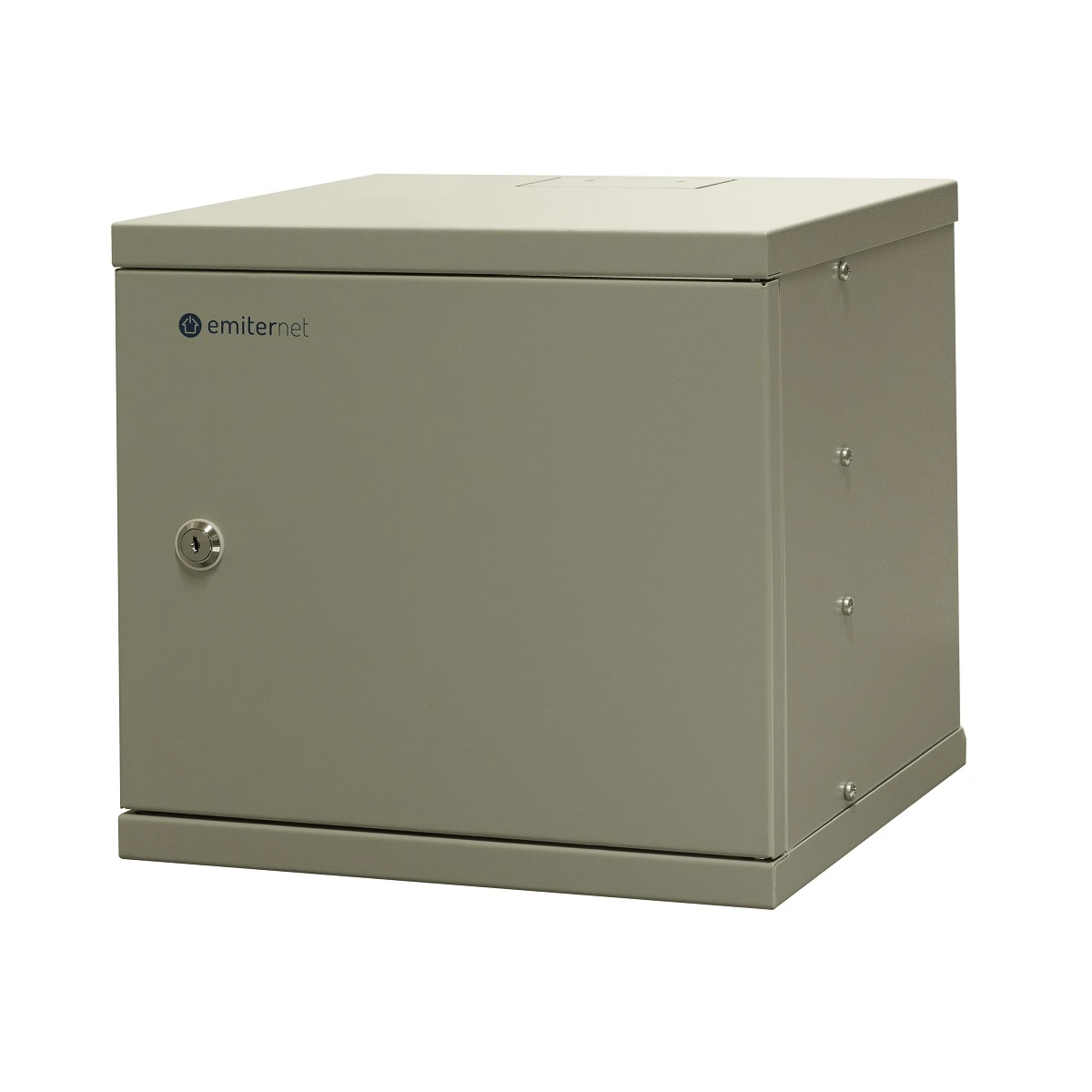

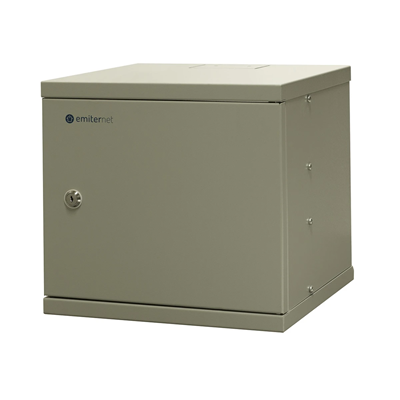

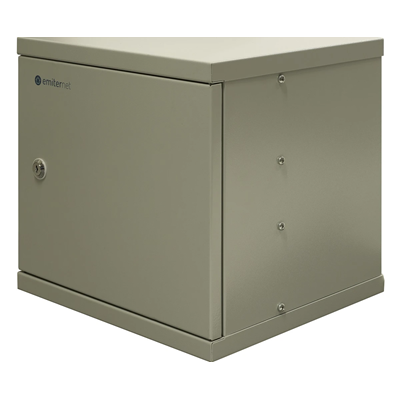

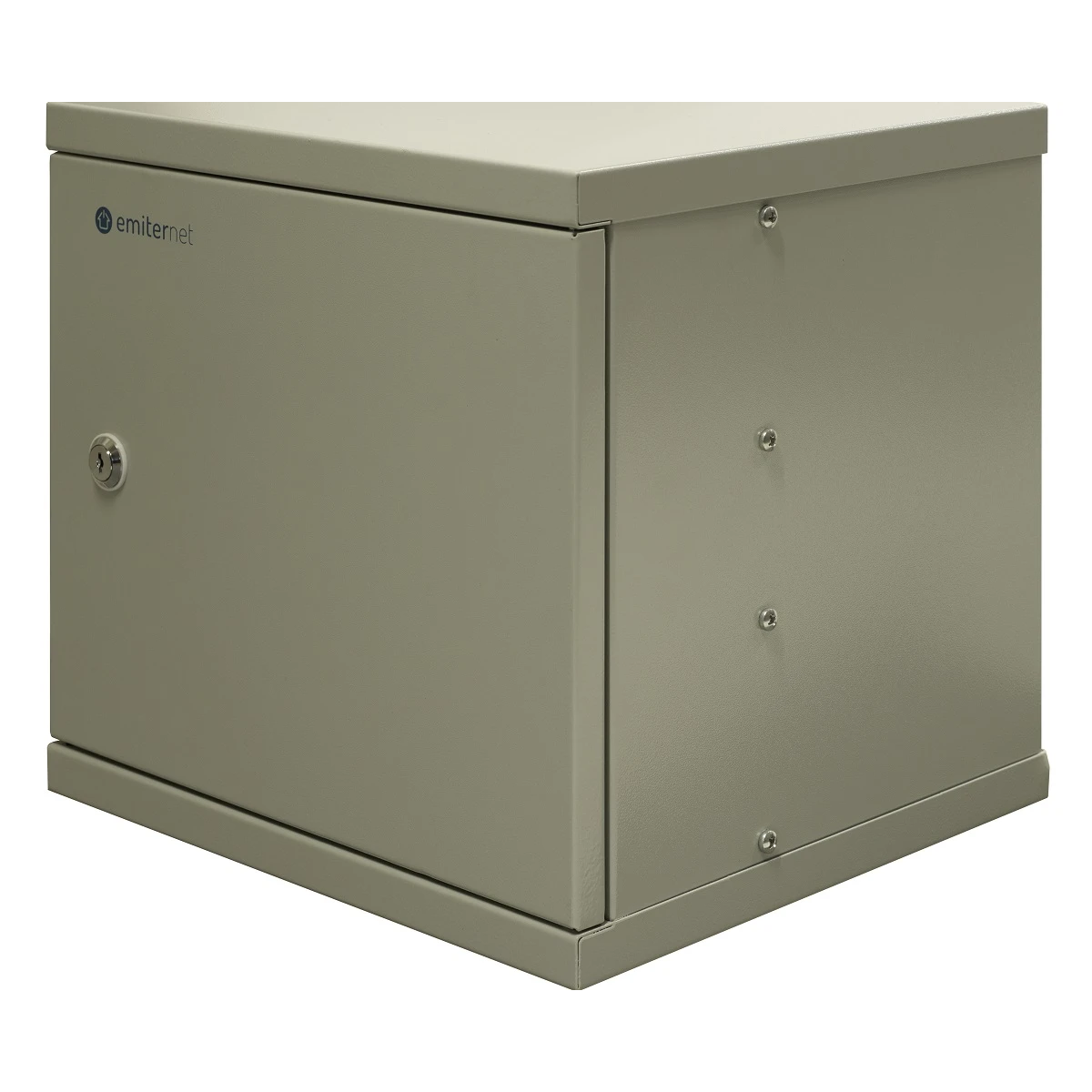

Hanging cabinet 10'' 6U, sheet metal door, 315×310x330, RAL: Cabinet 7044, complete with shelf and set of 6 mounting screws EM/SOHO-B-6U

local index:
RMR050EMSO
Catalog No:
EM/SOHO-B-6U
EAN code:
5906764105461
Manufacturer: EMITER
Depth [mm]: 300
Width [inch]: 10
Width [mm]: 325
Price:
38,06 €
gross / pcs.
(including VAT 23%)
5,44 € gross/kg.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Description and technical characteristics of the product:

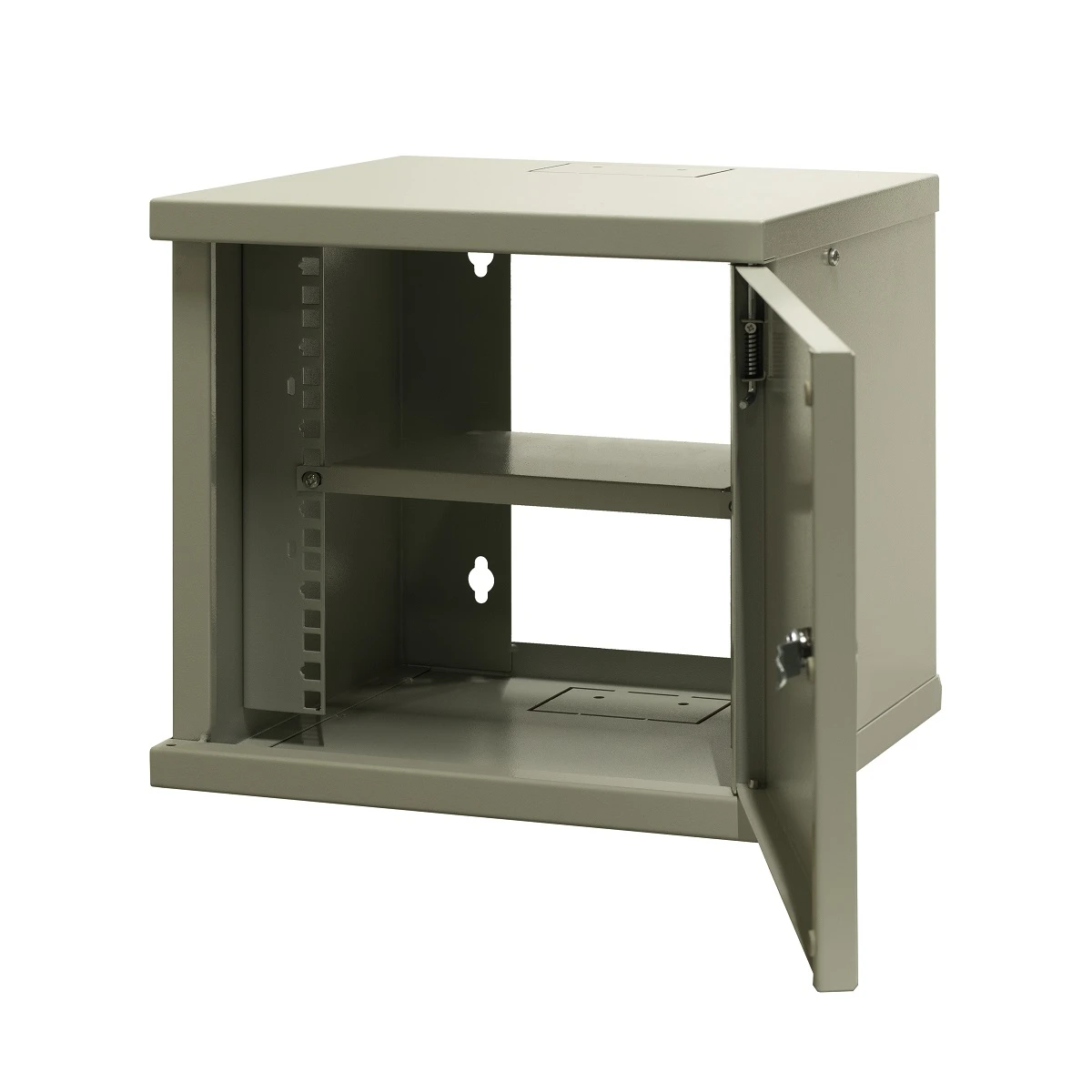

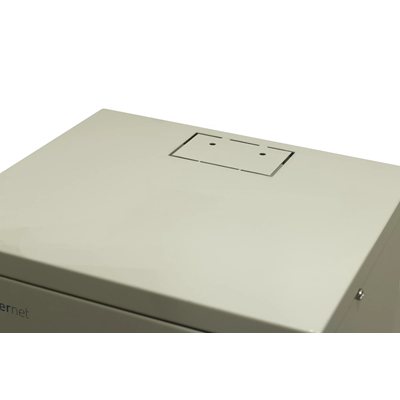

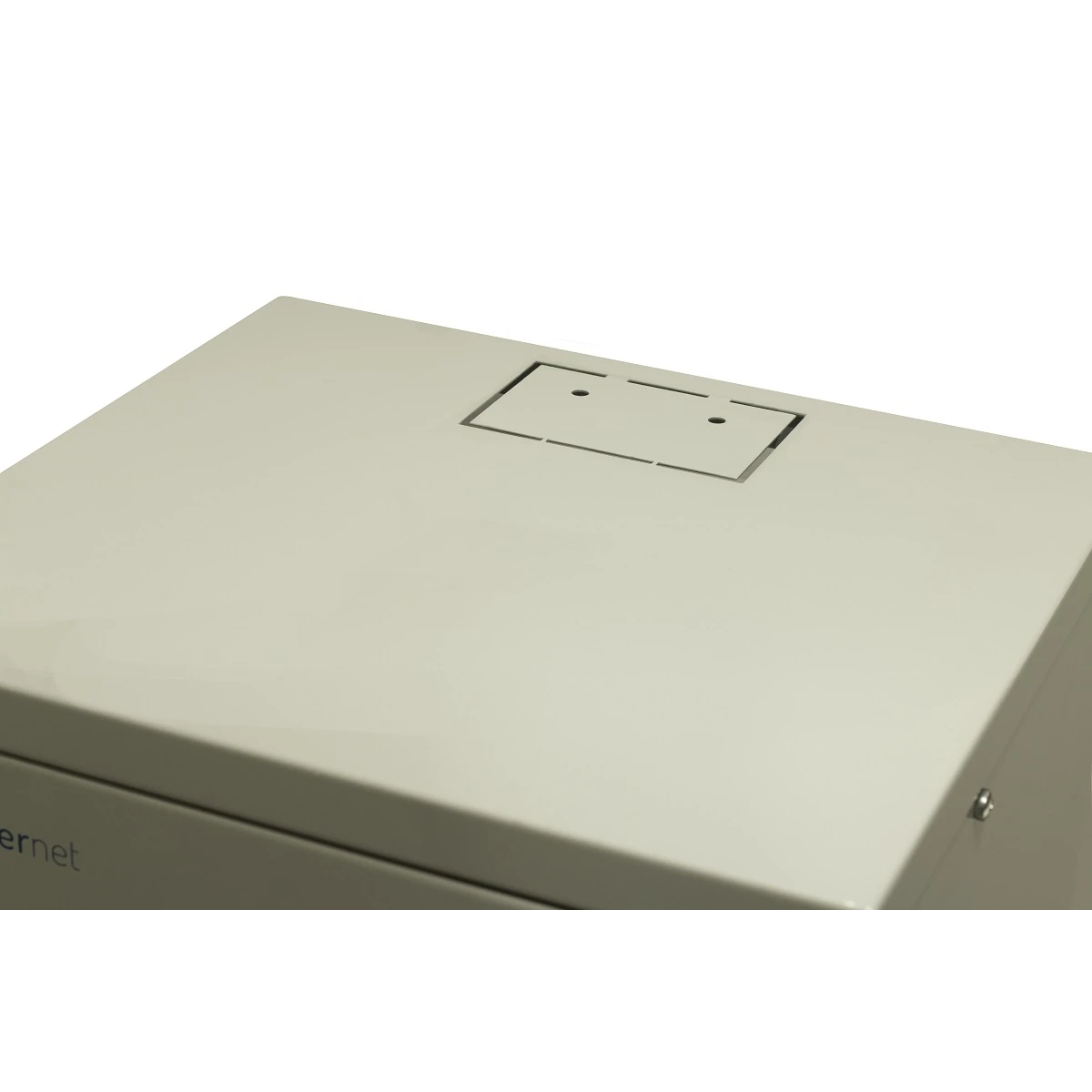

The structure of the cabinets is made of powder coated steel sheet. The housing has openings in the roof and floor adapted for knocking out and inserting cables with dimensions 100x65mm (WxH). Front door made of steel sheet, with a 1-point lock, mounted on hinges. The door opening direction can be changed. Sheet metal back with 4 holes for fixing the cabinet and a large opening for cables and wires. Two 19" vertical mounting profiles (one mounting plane) at a distance of 75 mm from the front door. The set includes shelves, a set of 6 mounting screws and 2 door keys.

Technical parameters:

  • Standard color RAL 7044 (light gray - structure)
  • Steel sheet door
  • One mounting level 19”
  • Completely assembled
  • Cabinets packed in a cardboard box

Equipment:

  • panel fixed in 2 points
  • mounting screws 6 sets
  • < li>2 pcs door keys

Technical data

  • Depth [mm]
    300
  • Width [mm]
    325
  • Height [mm]
    310
  • load capacity [kg]
    20
  • Width [inch]
    10
  • Weight [g]
    7000
  • Height [U]
    6

Other technical data

  • Mounting level
    Front side
  • Number of doors
    1
  • Width
    325 mm
  • Depth
    310 mm
  • Number of height units
    6
  • With roof plate
    Yes
  • With front door
    Yes
  • Front door locking system
    One point
  • With glazed door
    No
  • With base
    No
  • Material
    Steel
  • Colour
    Grey
  • RAL-number
    7044
  • Type of profile rail
    L-shaped
  • Type of ventilation
    None
  • Height
    310 mm
  • Modular spacing
    254 mm (10 inch)
  • Max. load capacity
    20 kg
  • With earthing
    No
  • Material front door
    Steel
  • With rear door
    No
  • With sidewall
    Yes
  • With vertical cable management
    Yes
  • Surface finishing
    Powder coating
  • Model
    With permanent frame
  • Demountable
    No
