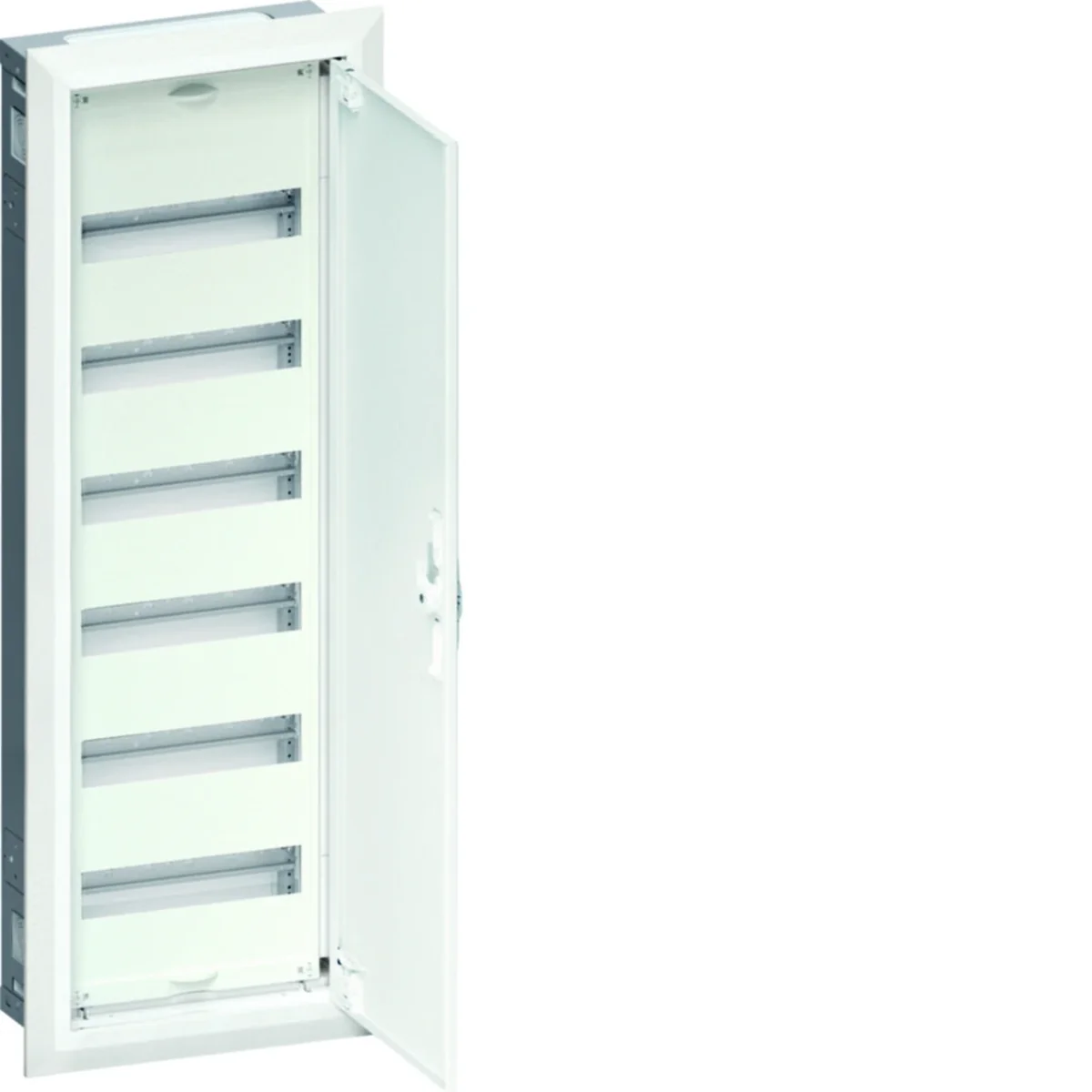

FW Complete switchgear 72M IP30 class II, flush-mounted FWU61S

Indice locale:
RMP036HAGE
Numero di catalogo:
FWU61S
Codice EAN:
3250612739684
Prezzo:
360,25 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 2 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

FW Complete switchgear 72M IP30 class II, flush-mounted

Dati tecnici

  • Family
    FW

Altri dati tecnici

  • Mounting method
    Hollow wall
  • Width in number of modular spacings
    12
  • Cover model
    With notch
  • Housing material
    Steel
  • Width
    353 mm
  • Built-in depth
    112 mm
  • Built-in width
    310 mm
  • Earthing terminal block
    Yes
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • With lock
    No
  • Signal passing door
    No
  • Number of rows
    6
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    1003 mm
  • Depth
    125 mm
  • Built-in height
    1003 mm
  • Inner depth
    119 mm
  • Neutral terminal block
    No
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP30
  • Type of closure
    Other

Imballaggio sfuso

Una specie di pacchetto Karton Paleta
Quantità 1 pezzi 1 pezzi 15 pezzi
Peso (kg) 13,200 13,500 225,500
Larghezza (m) 0,353 0,380 0,850
Lunghezza (m) 1,003 1,020 1,180
Profondità (m) 0,112 0,165 1,200
