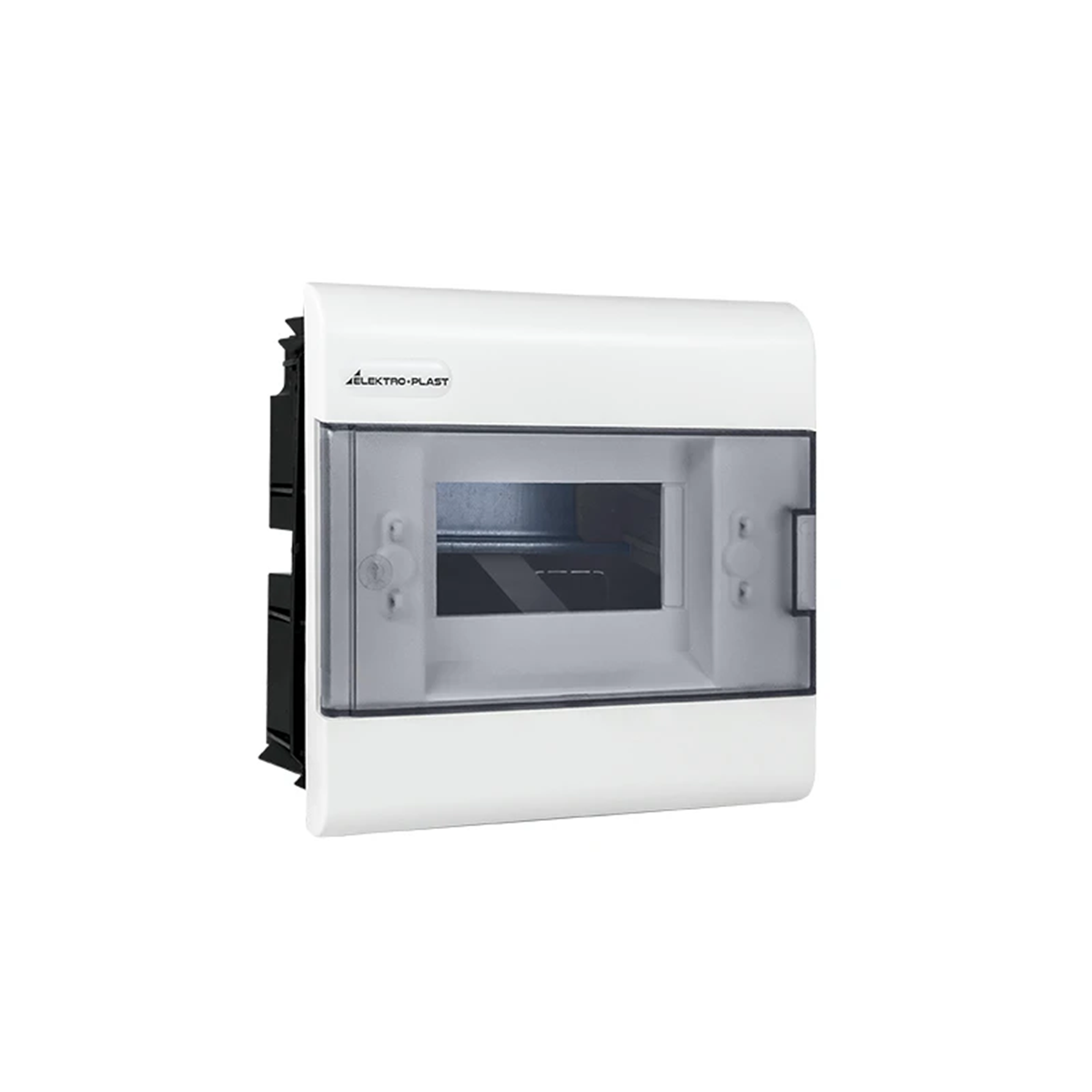

Flush-mounted switchgear SRp-6 (N+PE) 2.1

local index:
RMP214ELOP
Catalog No:
2.1
EAN code:
5903978376205
Depth [mm]: 74
Number of modules: 6
Number of rows: 1
Price:
7,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 26 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switchboards are made of high-quality plastic. They are adapted for indoor use. The switchgears have a closed box casing and are suitable for sealing. In the side parts of the housing there are embossments for easy insertion of cables or installation pipes. Switchboards are provided with descriptive labels. They also have N+PE terminal strips. The mounting element in the switchgear is the TH 35/7, 5 (Eurorail) bracket, which allows the installation of overcurrent protection devices, residual current devices and other electrical devices. According to the applicable standards, switchgears should be placed on fire-retardant walls by appropriately qualified persons

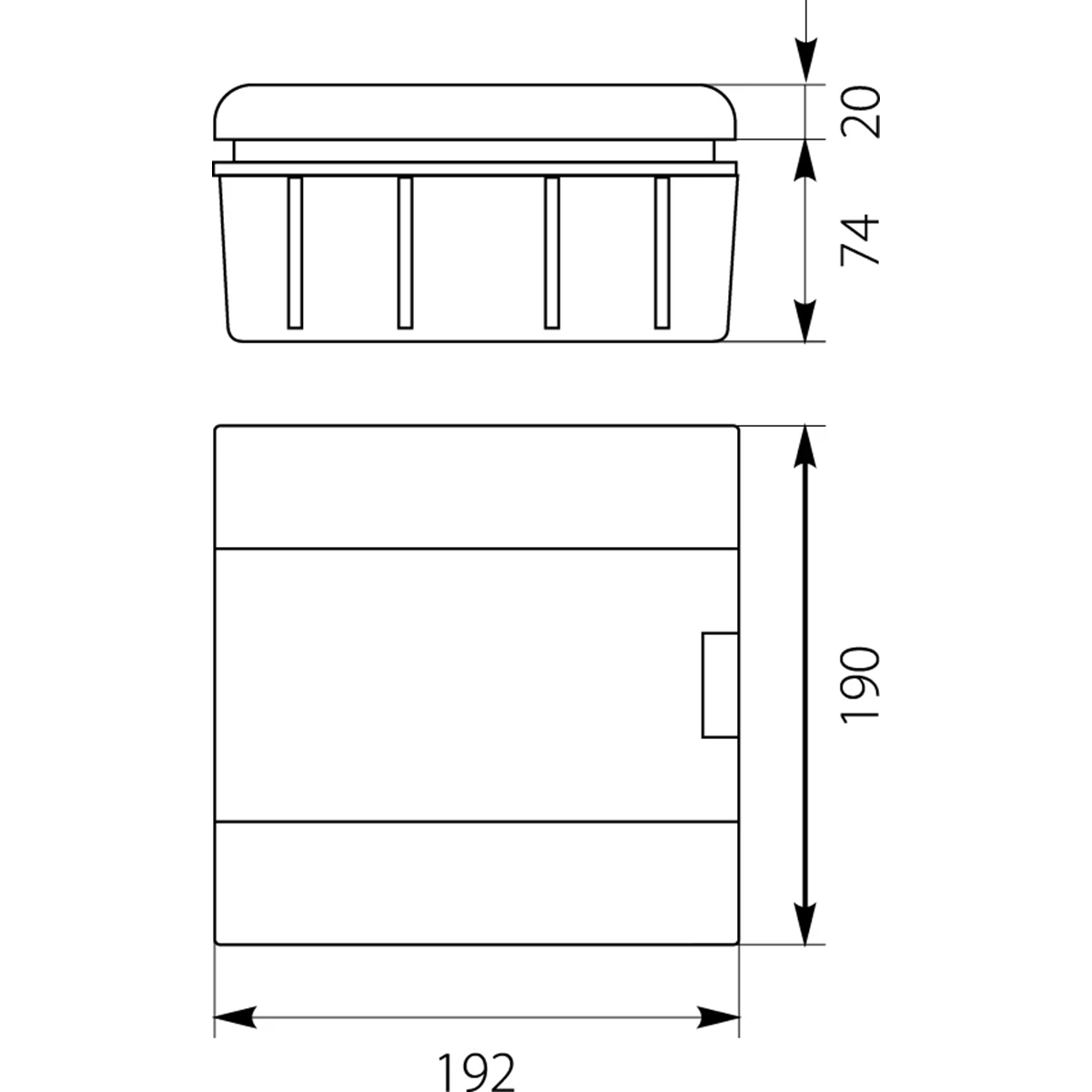

Technical data

  • Depth [mm]
    74
  • Number of rows
    1
  • Width [mm]
    192
  • Accurate color
    White
  • Number of modules
    6
  • Color
    White
  • Height [mm]
    190
  • PKWIU
    27.12.31.0

Other technical data

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    6
  • Cover model
    With notch
  • Housing material
    Plastic
  • Width
    192 mm
  • Built-in depth
    74 mm
  • DIN-rail
    Yes
  • Extension possible
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Type of closure
    Push button
  • Number of rows
    1
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    190 mm
  • Depth
    94 mm
  • Inner depth
    71 mm
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    9003
  • With lock
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,498 0,076
Width (m) 0,192 0,106
Length (m) 0,190 0,196
Depth (m) 0,094 0,202
