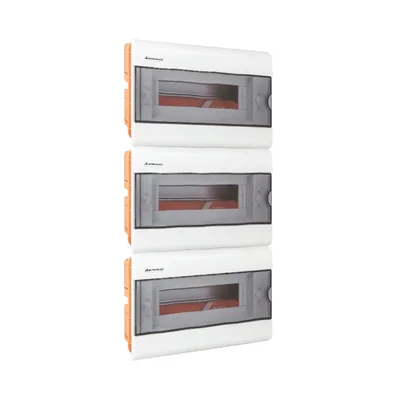

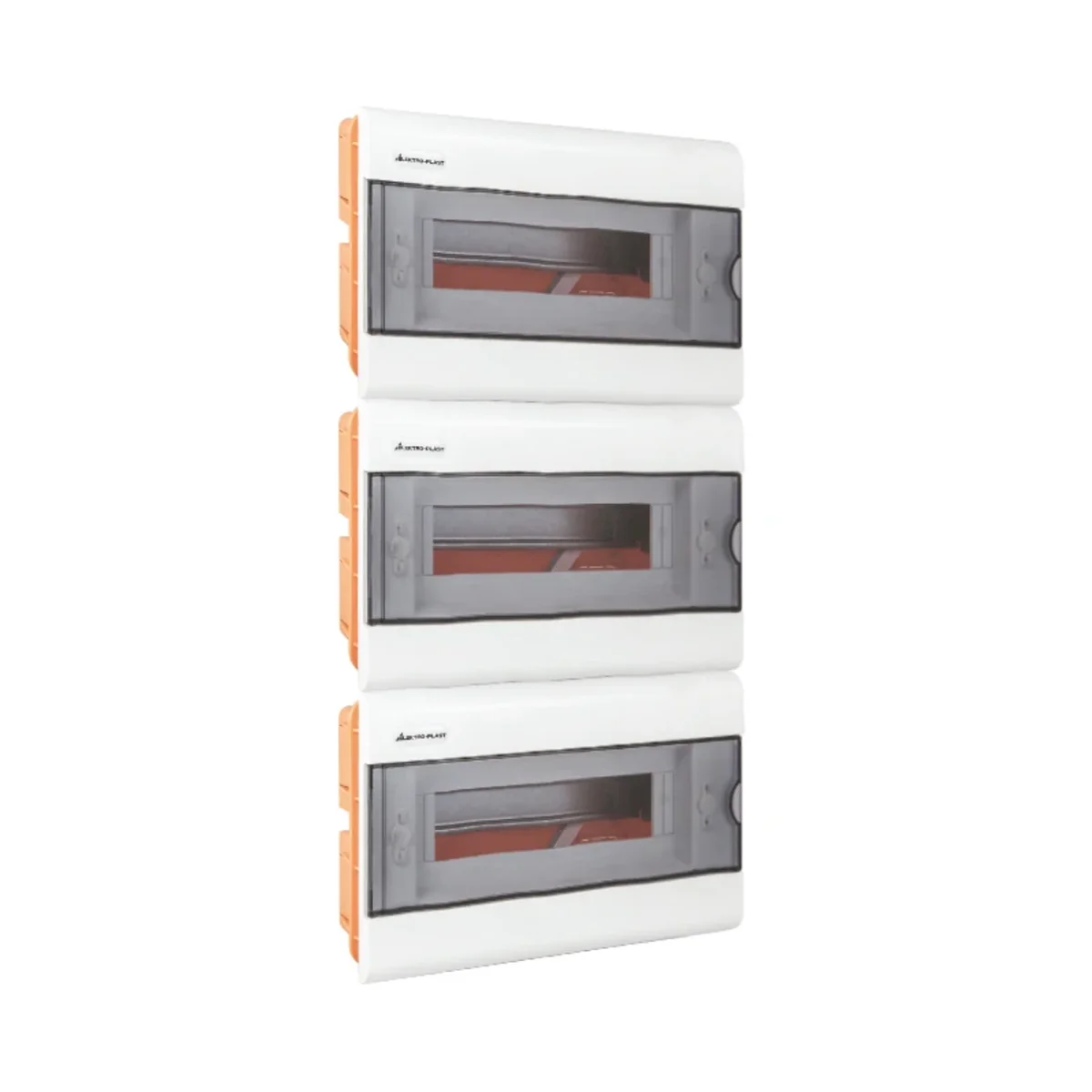

Flush-mounted switchgear SRp-3x12 (36) (N+PE) 2.7

local index:
RMP219ELOP
Catalog No:
2.7
EAN code:
5903978376670
Price:
35,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switchboards are made of high-quality plastic. They are adapted for indoor use. The switchgears have a closed box casing and are suitable for sealing. In the side parts of the housing there are embossments for easy insertion of cables or installation pipes. Switchboards are provided with descriptive labels. They also have N+PE terminal strips. The mounting element in the switchgear is the TH 35/7, 5 (Eurorail) bracket, which allows the installation of overcurrent protection devices, residual current devices and other electrical devices. According to the applicable standards, switchgears should be placed on fire-retardant walls by appropriately qualified persons

Technical data

  • Color
    White
  • PKWIU
    27.12.31.0

Other technical data

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    12
  • Cover model
    With notch
  • Housing material
    Plastic

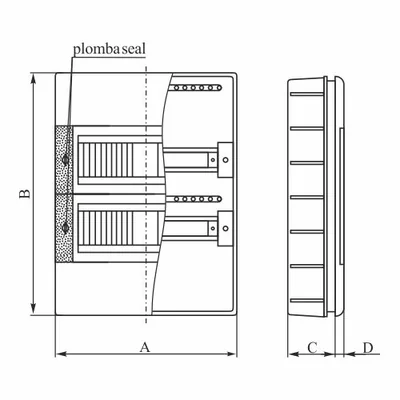

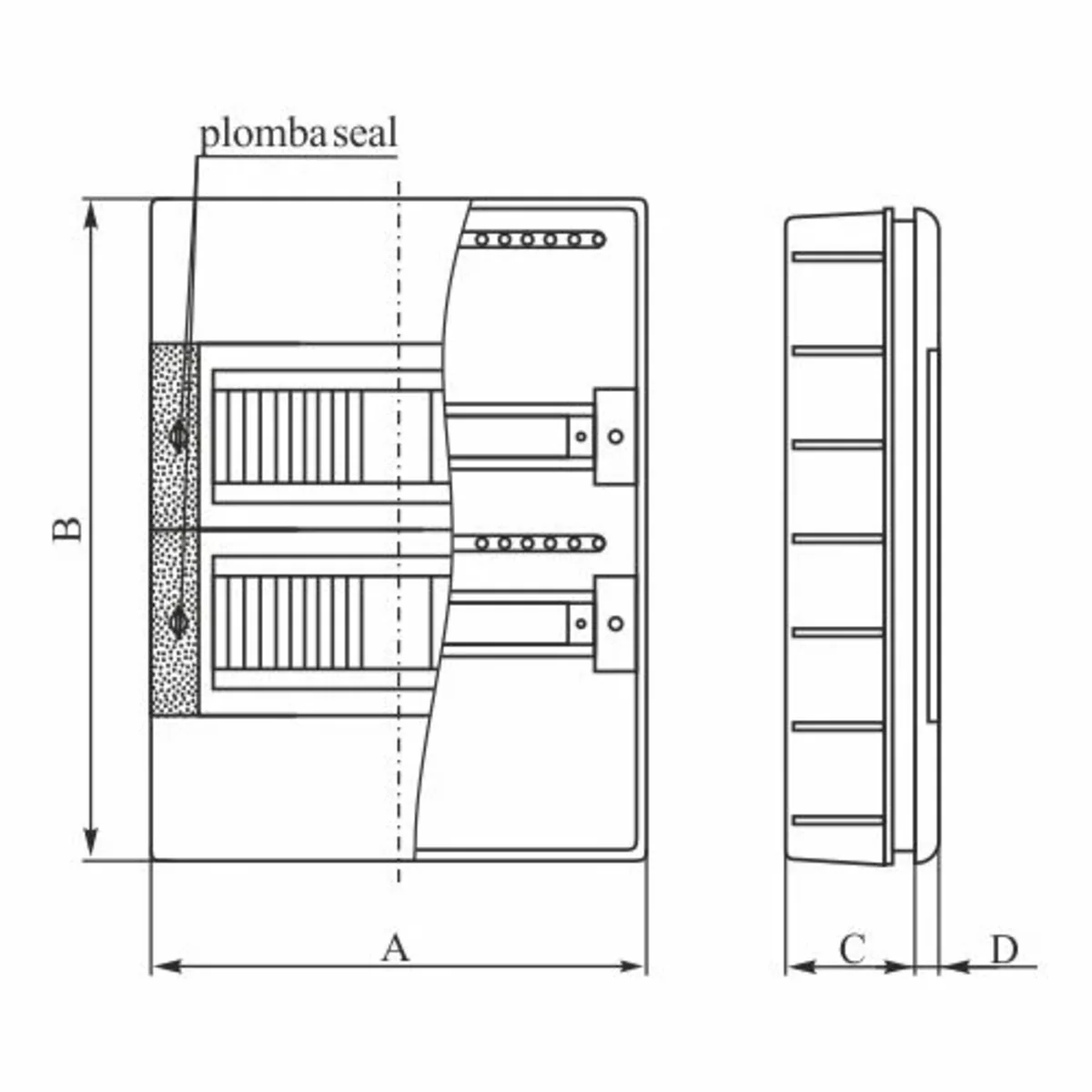

  • Width
    316 mm
  • Built-in depth
    74 mm
  • DIN-rail
    Yes
  • Extension possible
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Number of rows
    3
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    610 mm
  • Depth
    94 mm
  • Inner depth
    74 mm
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    9003
