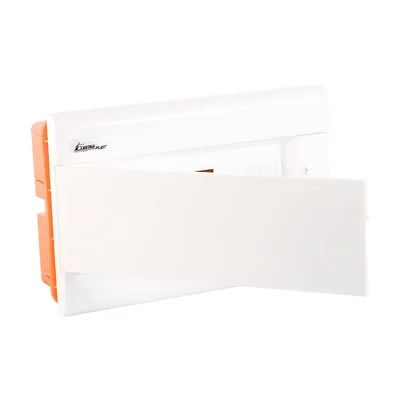

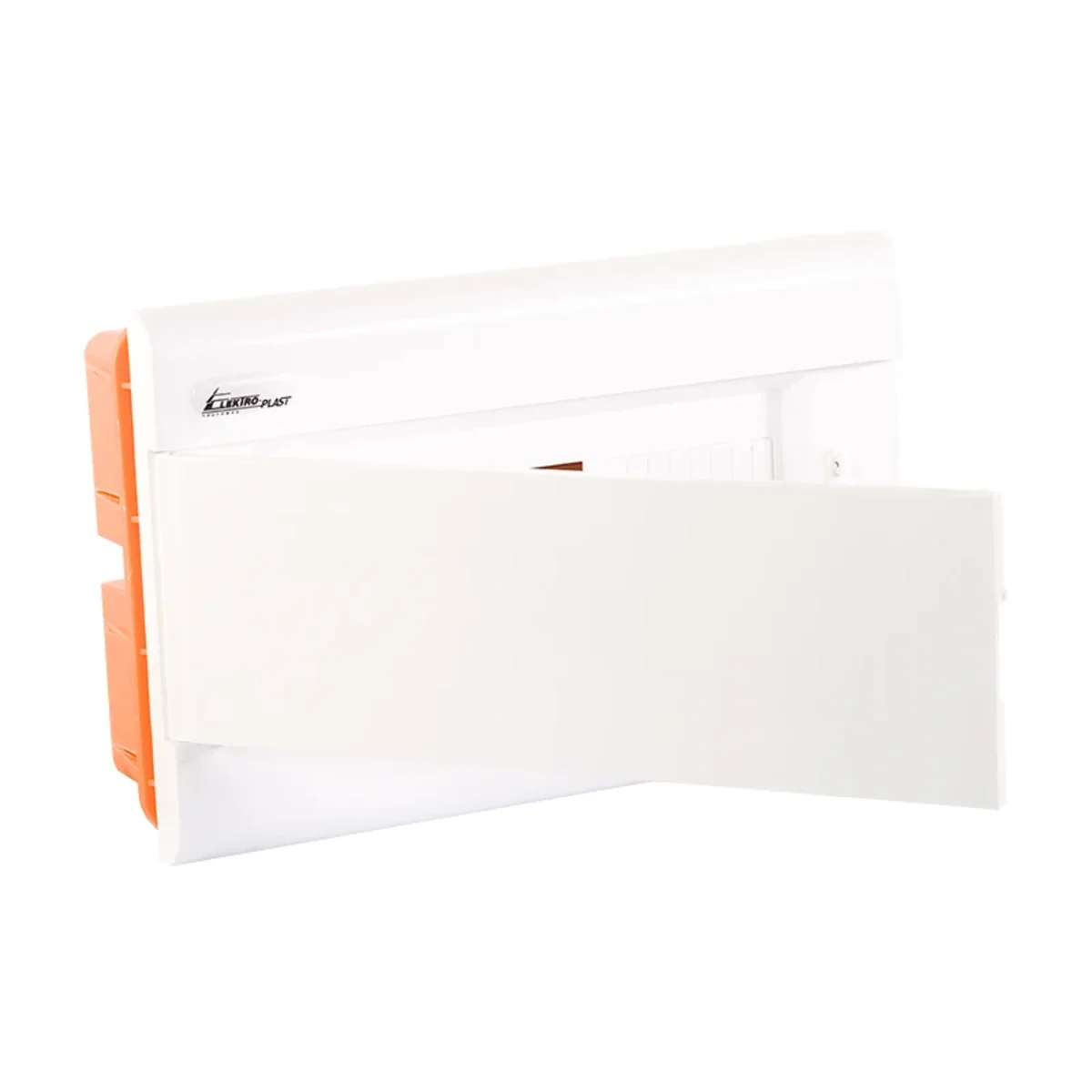

Flush-mounted distribution box SRp-12/B (N+PE) 2.13

local index:
RMP001ELOP
Catalog No:
2.13
EAN code:
5905548285511
Price:
11,91 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Flush-mounted distribution box SRp-12/B (N+PE)

Technical data

  • Color
    White
  • PKWIU
    27.12.31.0

Other technical data

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    12
  • Cover model
    With notch
  • Housing material
    Plastic

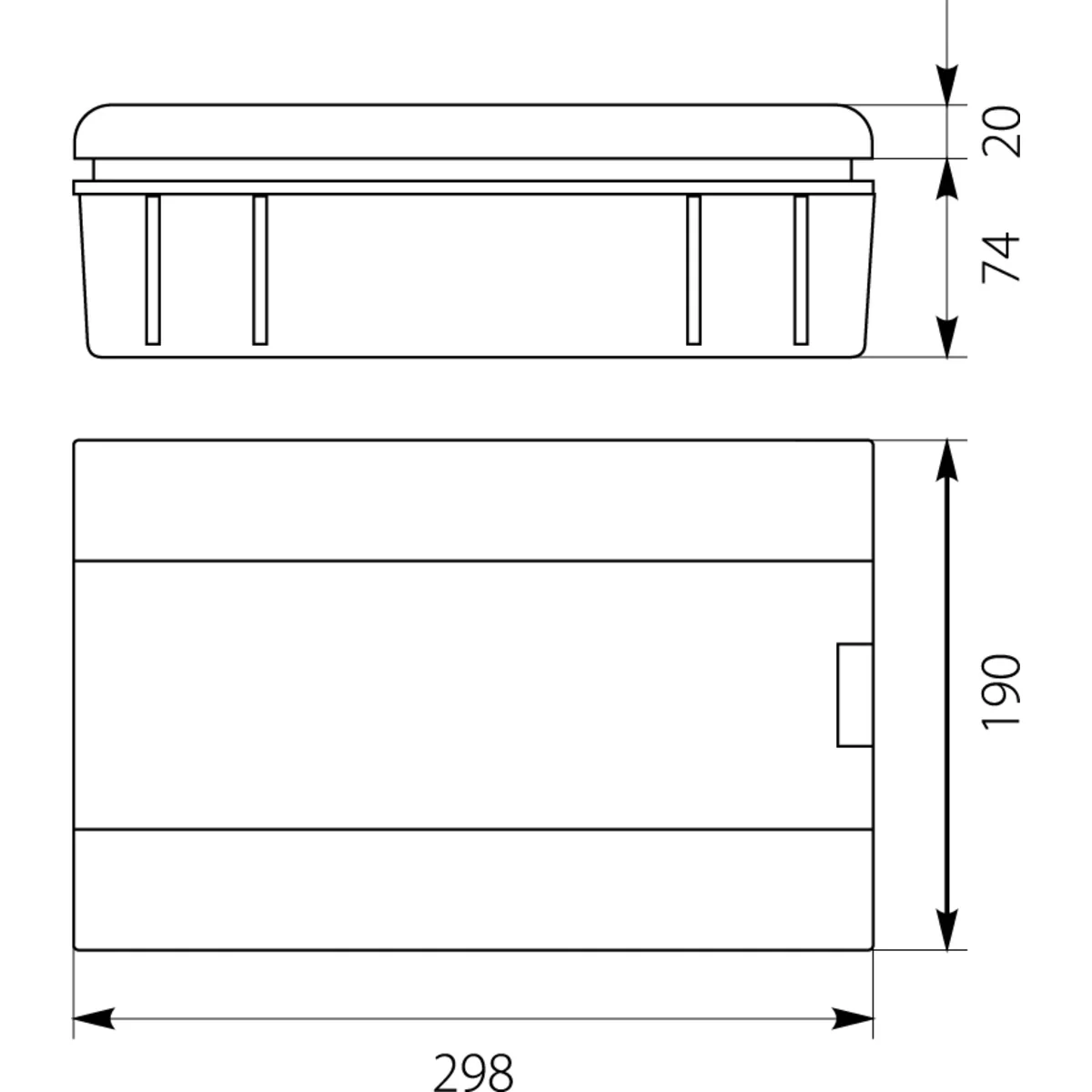

  • Width
    298 mm
  • Built-in depth
    74 mm
  • DIN-rail
    Yes
  • Extension possible
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Type of closure
    Push button
  • Number of rows
    1
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    190 mm
  • Depth
    94 mm
  • Inner depth
    71 mm
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    9003
  • With lock
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,700 -
Width (m) 0,298 0,101
Length (m) 0,190 0,310
Depth (m) 0,094 0,205
