Flush-mounted cabinet, BC-U-2/24-ECO 280356

local index:
RIP110MOEL
Catalog No:
280356
EAN code:
4015082803568
Manufacturer: EATON
Number of modules: 24
Number of modules: 24
Price:
63,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

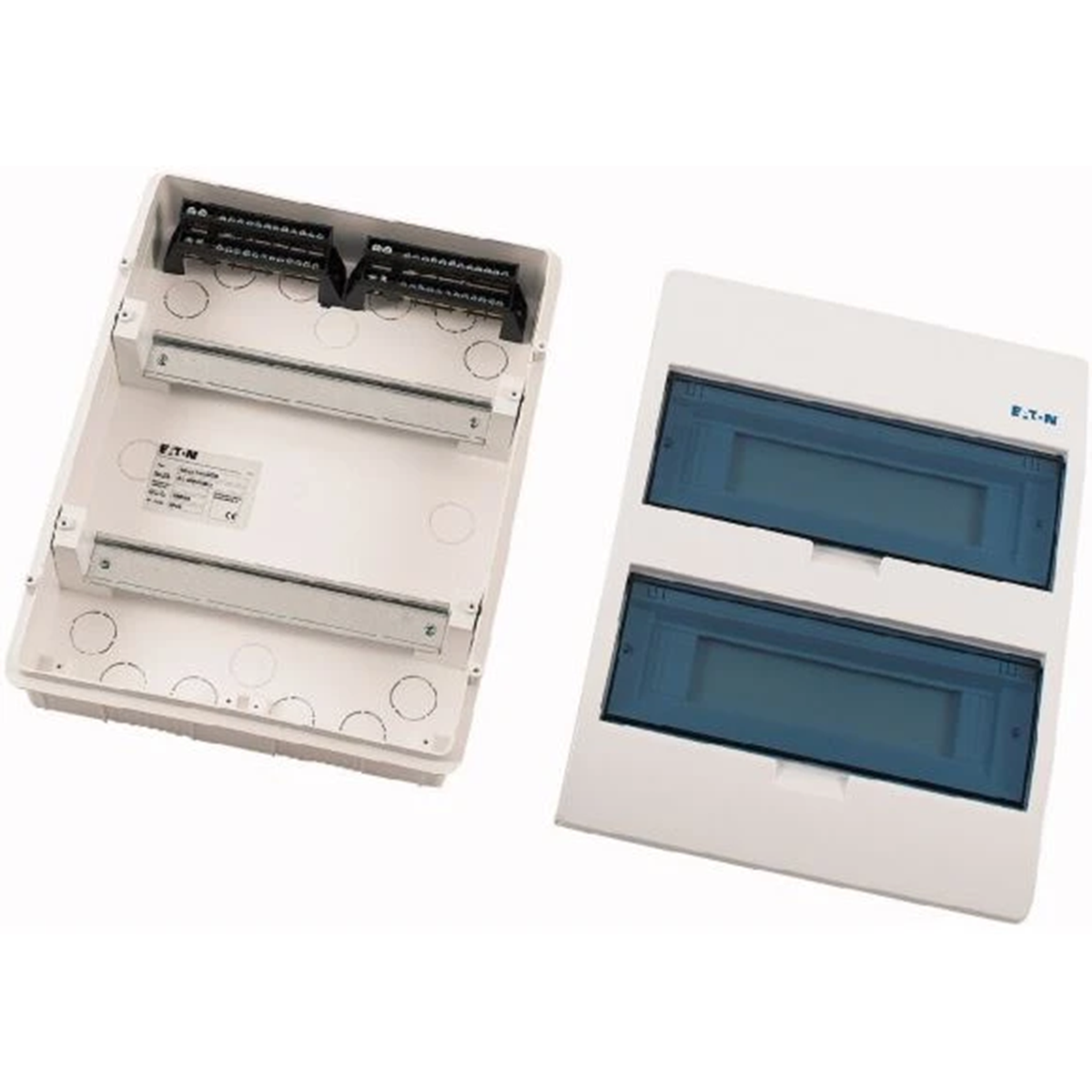

The set includes:
• housing
• transparent or white doors
• support rails
• PE and N terminal blocks
• assembly instructions

Technical data

  • Number of modules
    24
  • Number of modules
    24

Other technical data

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    12
  • Cover model
    Closed
  • Housing material
    Plastic
  • Width
    310 mm
  • Built-in depth
    70 mm
  • DIN-rail
    Yes
  • Extension possible
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Type of closure
    Other
  • Number of rows
    2
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    110 mm
  • Depth
    420 mm
  • Inner depth
    95 mm
  • With mounting plate
    No
  • EMC-version
    No
  • RAL-number
    9003
  • With lock
    No

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 1,626
Volume (m3) 0,014
Width (m) 0,310
Length (m) 0,420
Depth (m) 0,110
