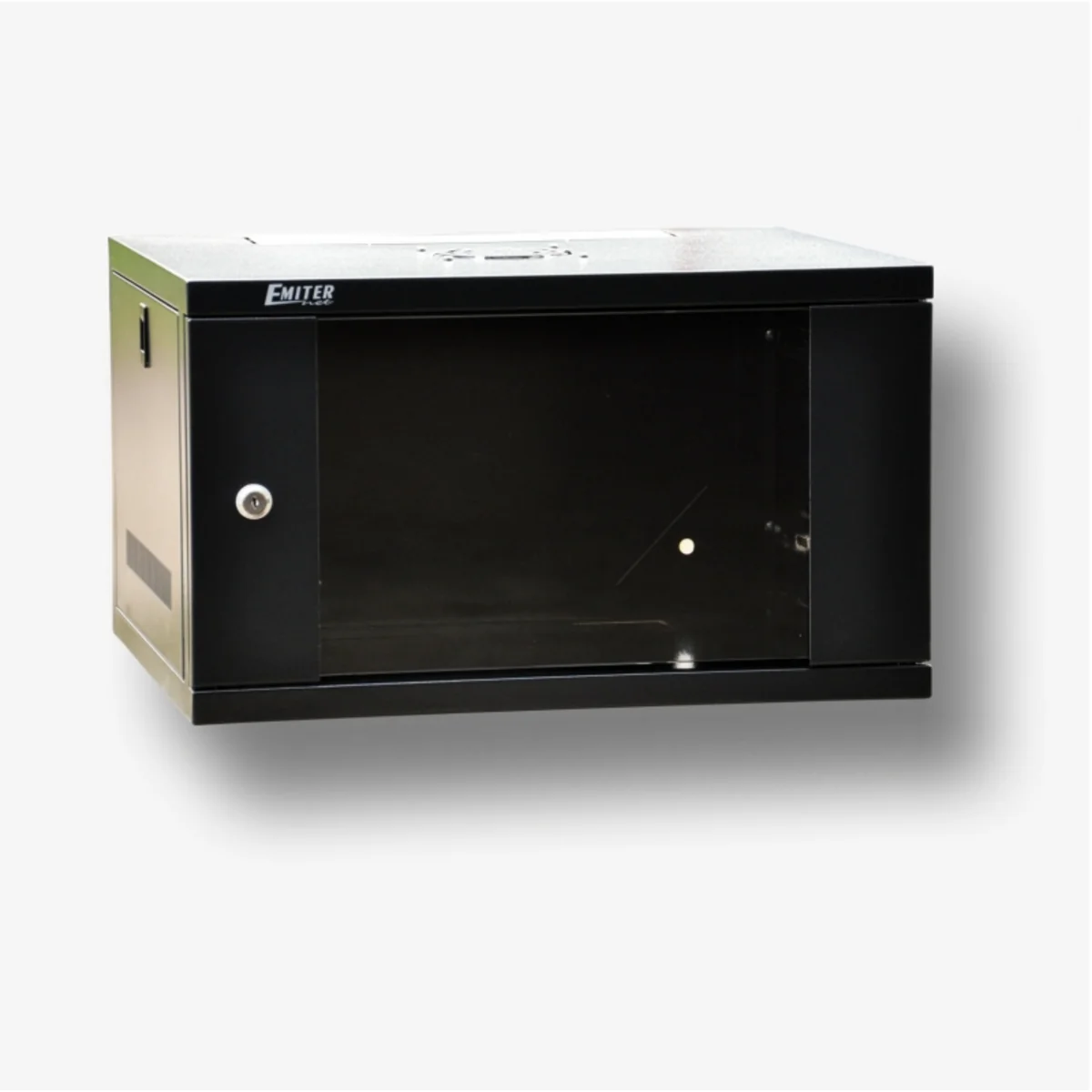

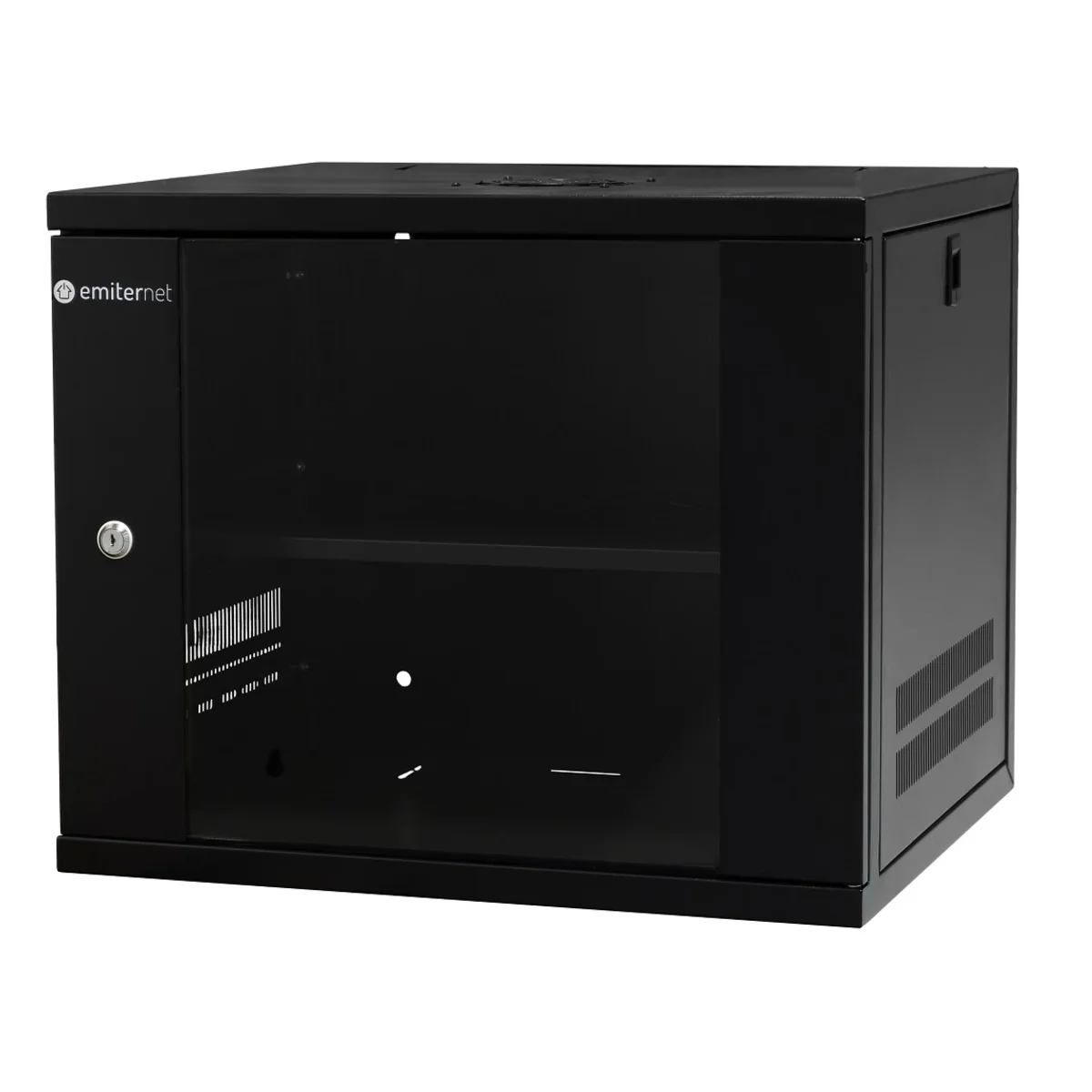

EmiterNet hanging cabinet 19" 9U depth 450mm undivided EM/SH02B5409-08

local index:
RMR102EMSO
Catalog No:
EM/SH02B5409-08
EAN code:
5906764103016
Manufacturer: EMITER
Depth [mm]: 450
Color: Black
Width [mm]: 550
Price:
106,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

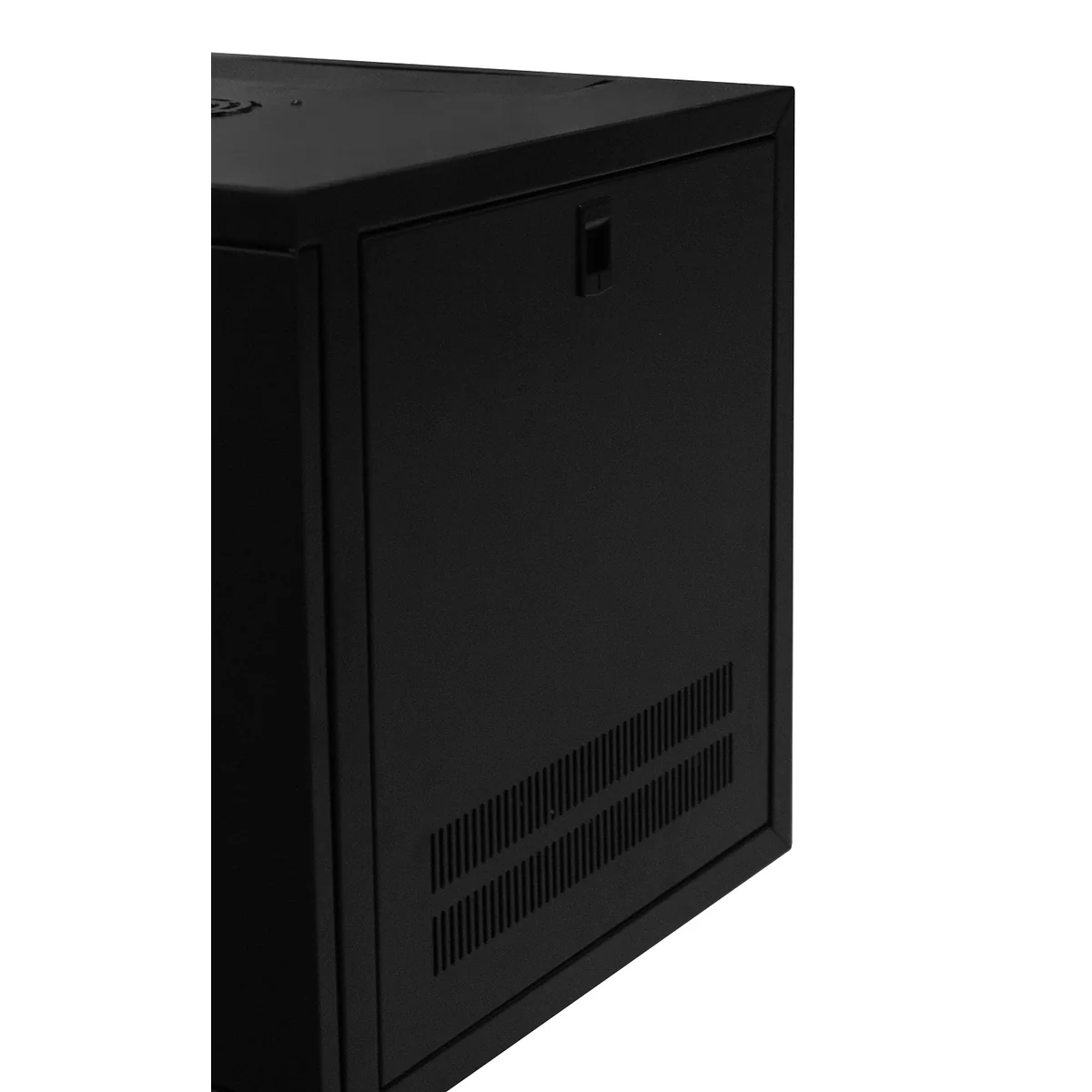

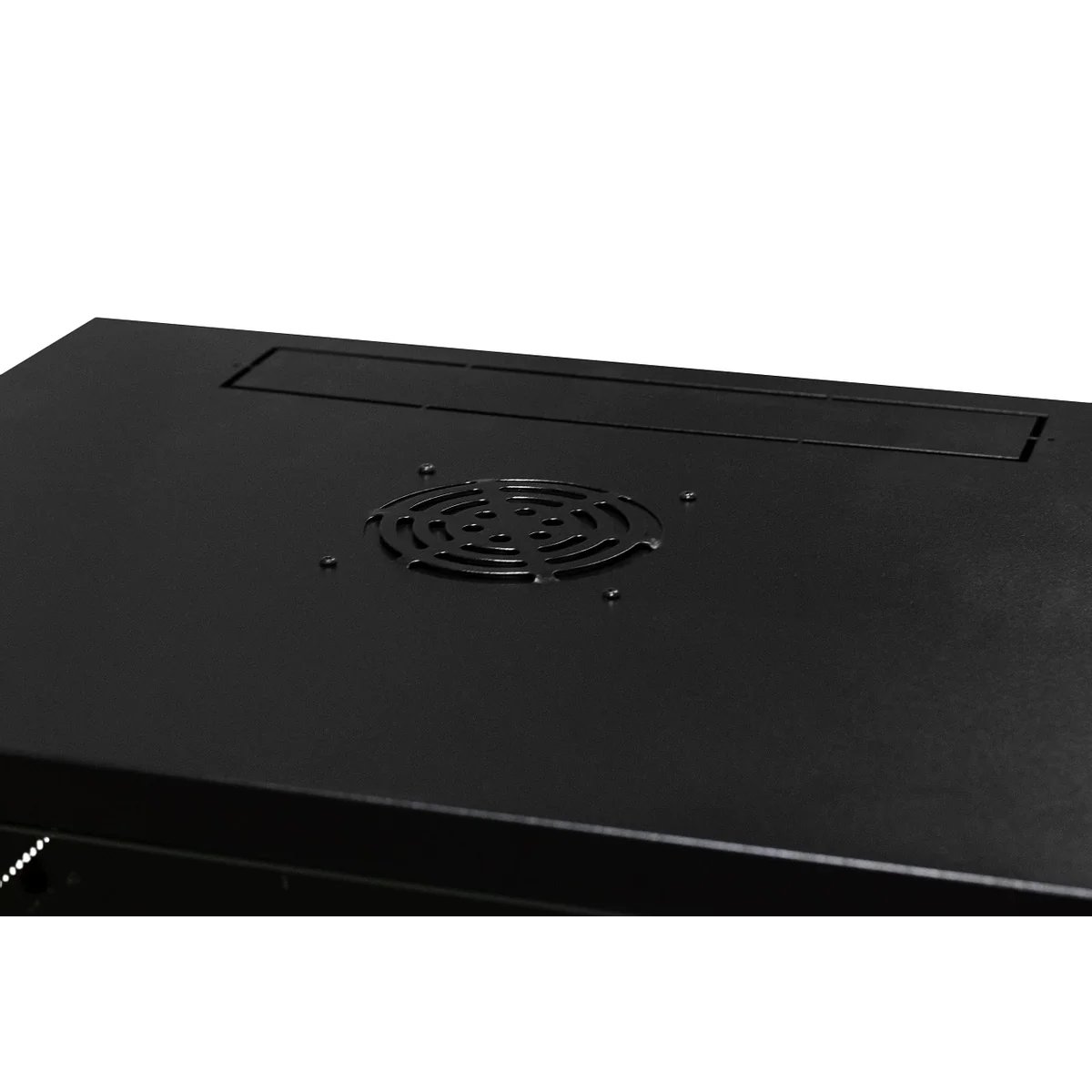

Cabinet made of steel sheet, welded construction,  with high rigidity (higher than in the case of bolted cabinets). The housing has two cable outlets (340x65mm1xupper part, 1xlower part). Front door with glued-in tempered glass and a 1-point lock, mounted on hinges that allow the door to open 180 degrees. The door can be moved to open the other way. Removable side covers (no lock). Two levels 19” vertical mounting profiles, mounted on horizontal traverses. Maximum profile spacing: 380mm (standard 250mm). In the roof of the cabinet there are openings adapted for the installation of one 1-fan ventilation module. In the rear wall, 4 holes with a diameter of 12 mm for hanging the cabinet, spaced 400x115mm.

Cabinet color RAL 9004 (black - structure)
Two mounting levels 19”
Degree of protection against objects solid and dust and against water ingress: IP 20 (not applicable to cabinets with mounted brush ducts)

Standard equipment of the cabinet:

  • 4U cabinets

Technical data

  • Depth [mm]
    450
  • Width [mm]
    550
  • Height [U]
    9
  • Color
    Black
  • Height [mm]
    445
  • load capacity [kg]
    40

Other technical data

  • Mounting level
    Front and rear
  • Number of doors
    1
  • Width
    550 mm
  • Depth
    450 mm
  • Number of height units
    9
  • With roof plate
    Yes
  • With front door
    Yes
  • Front door locking system
    One point
  • With glazed door
    Yes
  • With base
    No
  • Material
    Steel
  • Colour
    Black
  • RAL-number
    9004
  • Degree of protection (IP)
    IP20
  • Type of profile rail
    L-shaped
  • Type of ventilation
    Passive
  • Height
    455 mm
  • Modular spacing
    482.6 mm (19 inch)
  • Max. load capacity
    40 kg

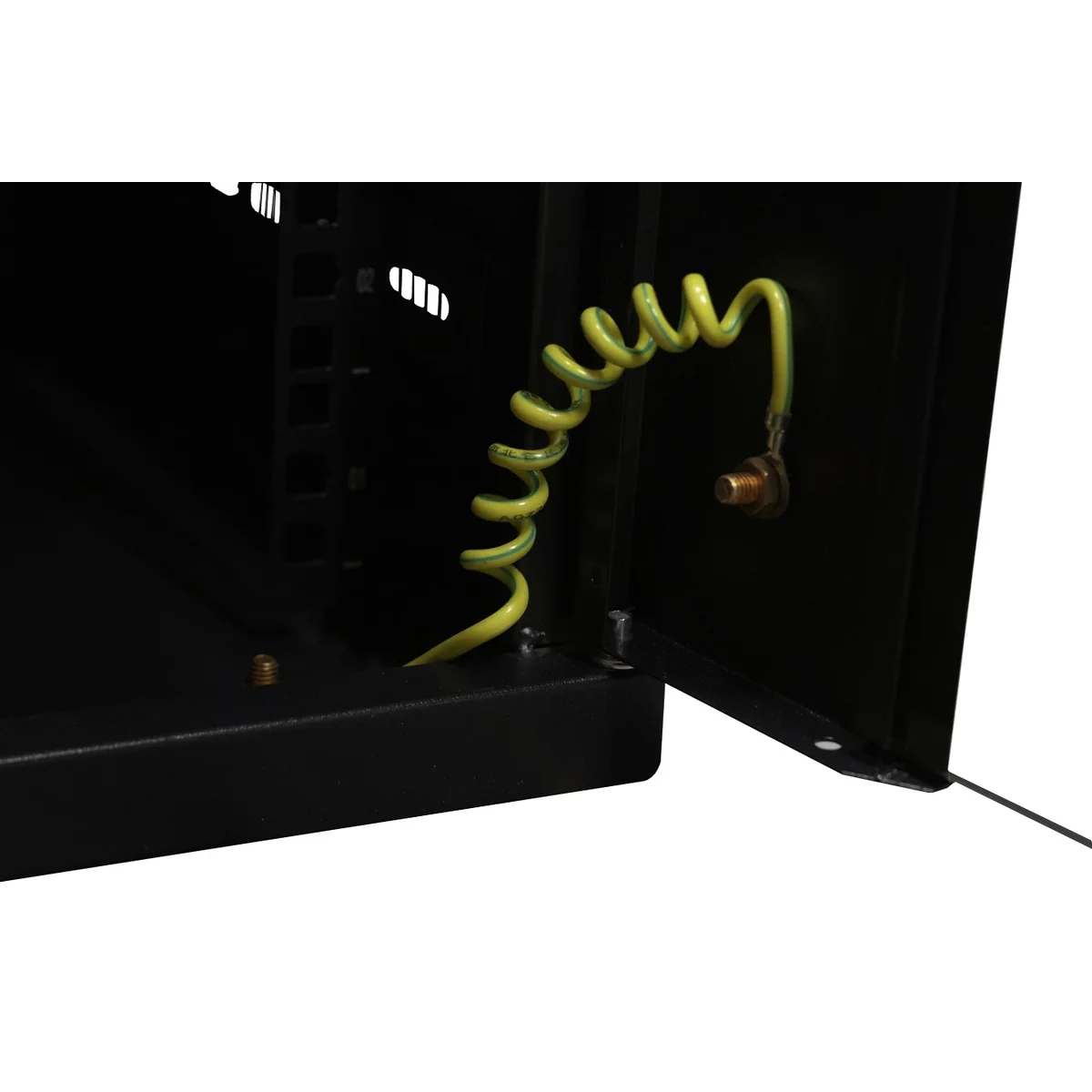

  • With earthing
    Yes
  • Material front door
    Glass
  • With rear door
    No
  • With sidewall
    Yes
  • With vertical cable management
    Yes
  • Surface finishing
    Powder coating
  • Model
    With swing frame
  • Demountable
    No
